TT Dial Measuring Torque Screwdriver

Made in UK
TT dial screwdriver gedore mountz
Click images to enlarge.

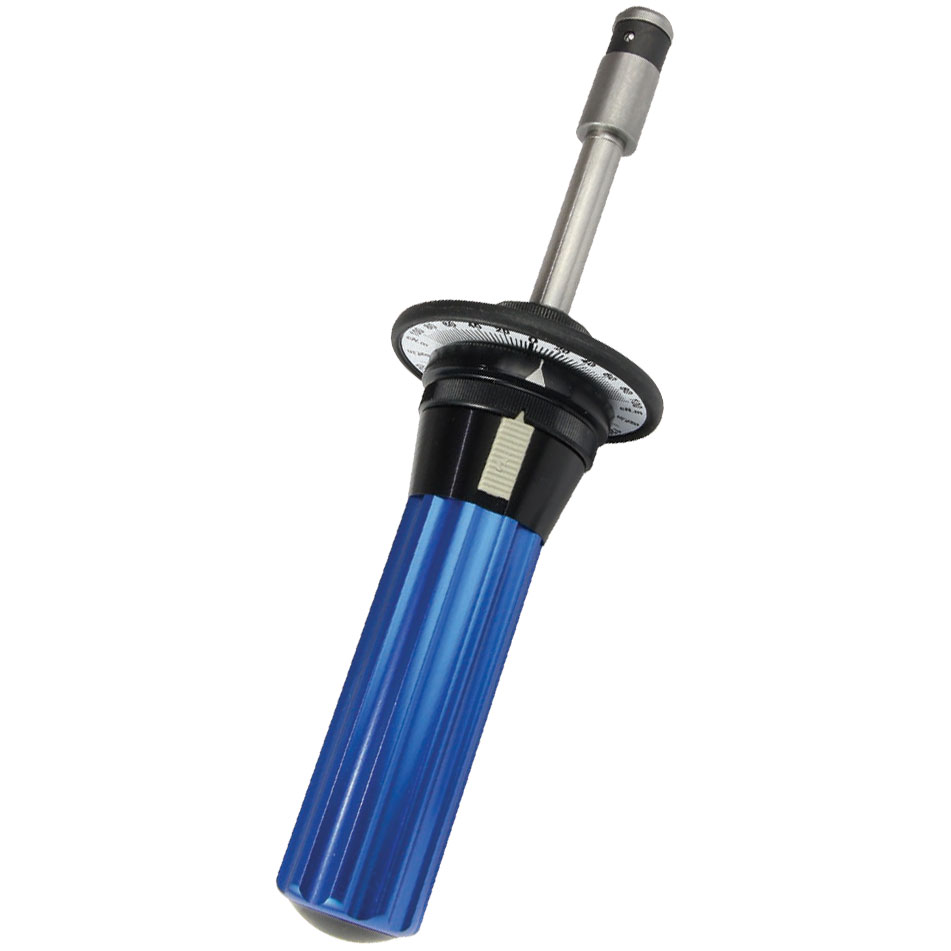

gedore TT screwdriverThe TT torque screwdriver is designed for precision assembly and quality control applications. A dial indicator displays real-time application and removal torque. The memory system holds maximum torque reached.

Absolute accuracy: Unique torsion bar mechanism to ensure total precision

Dual scale: Dial provides efficient measurement in Metric and Imperial torque units in both directions, delivering flexibility and minimizing tool investment

Ease of use: Lightweight materials. Tools can be used by operators at any skill level

Long tool life: High quality, robust construction: stainless steel shaft, attractive colored aluminum handle, and sturdy dial

Measure Process Conformity: Unique memory function enables these tools to carry out the Just Move and Break Loose Quality Auditing Tests

No risk of tool damage: Overload Protection System with unique positive contact mechanism

Operational versatility: Torque can be measured as it is applied (Track mode) or when the maximum torque value has been recorded (Peak mode)

Features

  • The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789:2003 (+/- 6% of indicated reading).
  • Flat tension spring is used to give the best linear characteristics in both directions.
  • Dual American and S.I. graduated scales.
  • Quality constructed with stainless steel shafts, attractive colored aluminum handles and sturdy dials for maximum tool life.
  • NIST Traceable Calibration Certificate OPTIONAL

Measuring Range

Range Graduation
Model American S.I. American S.I. Drive
TT50 14 – 70 ozf.in 10 – 50 cN.m 2 ozf.in 2 cN.m 1/4" F/Hex
TT100 28 – 140 ozf.in  20 – 100 cN.m 5 ozf.in 5 cN.m 1/4” F/Hex
TT250 4 – 20 in.lbs  50 – 250 cN.m 0.5 lbf.in 10 cN.m 1/4" F/Hex
TT500 8 – 40 in.lbs 100 – 500 cN.m 1 lbf.in 20 cN.m 1/4" F/Hex

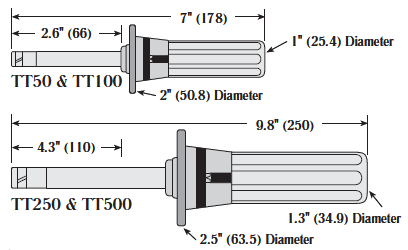

Dimensions

Downloads

Related Products

Click image for more info
MCX
Adjustable Torque Screw Driver, Slip Type
- Ideal for use in hard to access areas.
- Extensively used in electronic field service.
TSD Digital Torque Screwdriver
Click image for more info
TSD
Digital Torque Screwdriver
- Clockwise & Counter Clockwise Torque Measurement
- 9 Programmable Target Torque Set-points

Buy Now

Item Description Price
TT 50 FH Dial Screwdriver, 1/4" F/Hex drive - 020151, 017400
$377.61
TT 100 FH Dial Screwdriver, 1/4" F/Hex drive - 020153, 017500 (7096460)
$377.61
TT 250 FH Dial Screwdriver, 1/4" F/Hex drive - 020155, 017600
$383.64
TT 500 FH Dial Screwdriver, 1/4" F/Hex, - MZ-020157, GD-017700, or 7096620
$383.64
Accessories
TT-CERT
Calibration Cert for TT Screwdriver
$60.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
