TLS Preset Torque Screwdriver - Gedore, Mountz

Mountz TLS Screwdrivers Gedore
Click images to enlarge.
The TLS torque limiting screwdriver is a preset tool with a cam-over design for precisely tightening fasteners and preventing over-torquing. When the torque screwdriver reaches the pre-set torque value the internal mechanism disengages from the drive thus limiting the torque applied. Using a quality torque screwdriver ensures that proper torque is being applied and maintains requirements associated with ISO quality standards.

Features

  • Precision radial ball clutch "slips-free" when the preset torque is reached preventing over-torquing.
  • Thrust bearings insure that the torque setting is independent of any end load applied by the operator.
  • All models provide bi-directional operation and are calibrated in either the CW or CCW direction.
  • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
  • Four different colored lightweight aluminum handles allow color coding of specific torque values in production areas. (TLS1360 - Black only)

TLS-IFR Features

The design action of the standard TLS cammed screwdriver is such that when the tool reaches its preset torque value the mechanism disengages from the drive thus limiting the torque applied. Further rotation of the screwdriver handle resets the mechanism ready for the next torquing operation. The IFR models eliminates any small reaction during resetting.
- CCW operation available upon request.
- All IFR models are "impact-free" when the cam resets.
- Screwdriver is torque limiting in the CW direction only.

TLS-OWC Features

One-way clutch system is designed for the screwdriver to apply torque in one direction and lockup in the opposite direction for easy screw removal.
- Ideal for maintenance and refurbishing applications.
- Screwdriver is torque limiting in the CW direction only.
- CCW operation available upon request.
- 1/4" male square drive models available upon request.

Related Products

Torque Tool Tester
Click image for more info
Torque Tool Tester - AWS-QC
- Bidirectional accuracy of ± 1% of indicated reading
TLS Pro Torque Screwdriver
Click image for more info
Preset Torque Screwdriver
- Precision radial ball clutch "slips-free" when the preset torque is reached preventing over-torquing.
Click image for more info
MCX
Adjustable Torque Screw Driver, Slip Type
- Ideal for use in hard to access areas.
- Extensively used in electronic field service.

Ranges

TLS Torque limiting screwdriver model line up

1/4" Female Hex Drive Models

Model Item # Color Range
TLS TLS-IFR TLS-OWC
Micro Minimaster 020083 - - Red 5.7 - 32 ozf.in
4 - 22 cN.m
1.4 - 2.2 kgf.cm
Minimaster 020074 - 020289 Gold 5.7 - 32 ozf.in
4 - 22 cN.m
1.4 - 2.2 kgf.cm
Minor 020066
020067
020068
020069
020464
020466
020468
020470
020298
020301
020299
020300
Blue
Gold
Green
Red
1.2 - 12lbf.in
14 - 135 cN.m
1.4 - 13.7 kgf.cm
Standard 020079
020080
020081
020082
020472
020476
020478
020480
020302
020304
020293
020303
Blue
Gold
Green
Red
4.4 - 36 lbf.in
50 - 406 cN.m
5.1 - 41 kgf.cm
TLS1360 020061 020482 020290 Black 22 - 120 lbf.in
2.5 - 13.6 N.m
25.3 - 138 kgf.cm

1/4" Male Square Drive Models

Model Item # Color Range
TLS TLS-IFR
Minor 020062
020063
020064
020065
020465
020467
020469
020471
Blue
Gold
Green
Red
1.2 - 12lbf.in
14 - 135 cN.m
1.4 - 13.7 kgf.cm
Standard 020075
020076
020077
020078
020473
020475
020477
020479
Blue
Gold
Green
Red
4 - 36 lbf.in
50 - 406 cN.m
5.1 - 41 kgf.cm
TLS1360 020060 020481 Black 22 - 120 lbf.in
2.5 - 13.6 N.m
25.3 - 138 kgf.cm

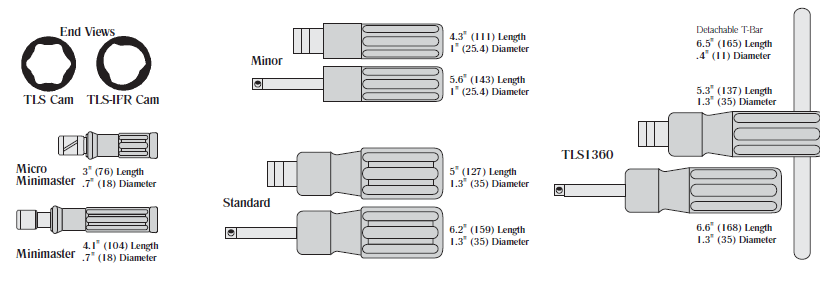

Dimensions

Downloads

Buy Now

Item Description Price
1/4" Female Hex Drive Models

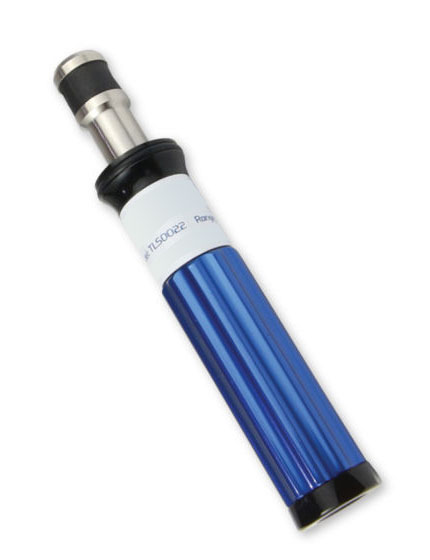

TLS Micro Minimaster TLS0022M F/H Red Preset Torque Screwdriver, 32 oz-in / 22 cNm / 2.2 kg-cm Capacity - 015000
$318.82
TLS Minimaster TLS0022 F/H Blue Preset Torque Screwdriver, 32 oz-in / 22 cNm / 2.2 kg-cm Capacity - 015080
$318.82
TLS Minor TLS0135 F/H Blue Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity - 015200
$253.38
TLS Minor TLS0135 F/H Gold Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity - 015260
$253.38
TLS Minor TLS0135 F/H Green Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity - 015220
$253.38
TLS Minor TLS0135 F/H Red Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity - 015240
$253.38
TLS Standard TLS0406 F/H Blue Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity - 015600
$265.74
TLS Standard TLS0406 F/H Gold Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity - 015660
$265.74
TLS Standard TLS0406 F/H Green Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity - 015620
$265.74
TLS Standard TLS0406 F/H Red Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity - 015640
$265.74
TLS1360 F/H Black Preset Torque Screwdriver, 120 lb-in / 13.6 cNm / 138 Kg-cm Capacity - 015920
$327.54
1/4" Male Square Drive Models
TLS Minor TLS0135 M/S Blue Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity - 015200
$253.38
TLS Minor TLS0135 M/S Gold Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity 015260
$253.38
TLS Minor TLS0135 M/S Green Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity
$231.00
TLS Minor TLS0135 M/S Red Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity - 015240
$253.38
TLS Standard TLS0406 M/S Blue Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity
$241.00
TLS Standard TLS0406 M/S Gold Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity
$241.00
TLS Standard TLS0406 M/S Green Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity - 015520
$322.38
TLS Standard TLS0406 M/S Red Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity - 015540 - Please contact us for pricing and availability.
$
TLS 1360 M/S Black Preset Torque Screwdriver, 120 lb-in / 136 Nm / 138 Kg-cm Capacity - 015895
$435.77
TLS IFR Models (Impact Free Resetting)
DISCINTINUED TLS-IFR Minor F/H Blue Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity - 015215
$
DISCDONTINUED TLS-IFR Minor F/H Gold Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity - 015275
$
TLS-IFR Minor F/H Green Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity
$308.00
DISCONTINUED TLS-IFR Minor F/H Red Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity - 015255
$
DISCONTINUED TLS-IFR Standard F/H Blue Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity - 015615
$
TLS-IFR Standard F/H Gold Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity
$322.00
DISCONTINUED TLS-IFR Standard F/H Green Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity - 015635
$
TLS-IFR Standard F/H Red Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity
$322.00
TLS-IFR 1360 F/H Black Preset Torque Screwdriver, 120 lb-in / 13.6 cNm / 138 Kg-cm Capacity
$397.00
TLS-IFR Minor M/S Blue Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity
$308.00
TLS-IFR Minor M/S Gold Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity
$308.00
TLS-IFR Minor M/S Green Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity
$308.00
TLS-IFR Minor M/S Red Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity
$308.00
TLS-IFR Standard M/S Blue Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity
$322.00
TLS-IFR Standard M/S Gold Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity
$322.00
TLS-IFR Standard M/S Green Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity
$322.00
TLS-IFR Standard M/S Red Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity
$322.00
TLS-IFR 1360 M/S Black Preset Torque Screwdriver, 120 lb-in / 13.6 cNm / 138 Kg-cm Capacity - 015915
$397.00
TLS OWC Models (One-Way Clutch with Locking Mechanism)
TLS-OWC Minimaster F/H Gold Preset Torque Screwdriver, 32 oz-in / 22 cNm / 2.2 kg-cm Capacity
$419.00
TLS-OWC Minor F/H Blue Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity - 015205
$462.30
TLS-OWC Minor F/H Gold Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity - 015265
$462.30
TLS-OWC Minor F/H Green Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity - 015225
$462.30
TLS-OWC Minor F/H Red Preset Torque Screwdriver, 12 lb-in / 135 cNm / 13.7 Kg-cm Capacity
$366.00
TLS-OWC Standard M/S Blue Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity
$382.00
TLS-OWC Standard M/S Gold Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity - 015665
$453.10
TLS-OWC Standard M/S Green Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity
$382.00
TLS-OWC Standard M/S Red Preset Torque Screwdriver, 36 lb-in / 406 cNm / 41 Kg-cm Capacity -015645
$487.10
TLS-OWC 1360 F/H Black Preset Torque Screwdriver, 120 lb-in / 13.6 cNm / 138 Kg-cm Capacity
$473.00
Accessories
PRESET
Presetting of torque driver to specific value
$65.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
