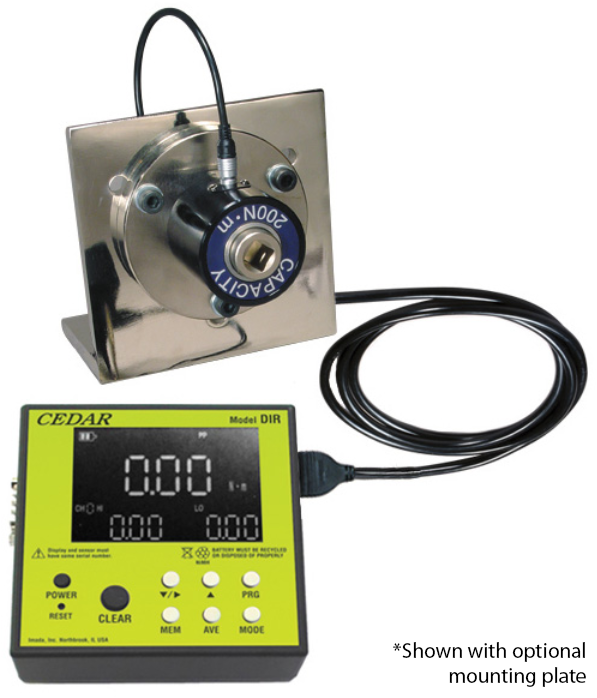

The DIR-IP Digital Torque Tester, equipped with a flanged remote sensor, is designed for calibrating non-impact torque tools, capable of up to 362 lbf-ft / 500 Nm.

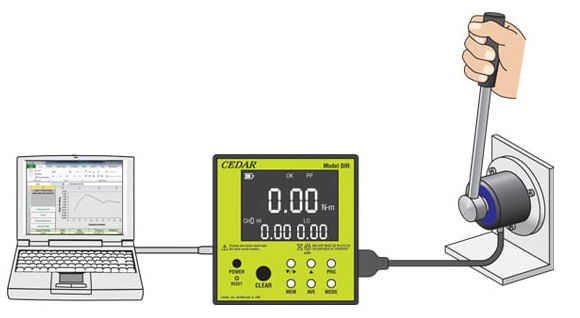

Use the 800 internal memory for peak data recall or USB download for analysis with SW-1SV-USB data acquisition software (optional).
Calibrate your own torque wrenches and electric drivers and and save down time.
Not for use with powered or impact tools (Ask for DI-1M impact wrench torque tester).
- Supplied with NIST Traceable Calibration Cert
- ISO-17025 Calibration Certificate Optional
- Accuracy: ±0.5% F.S. ±1 LSD (32° to 100°F)
- Programmable High/Low setpoints with GO/NO GO LED indicators and audible beep
- Peak, Real Time and Peak Down measuring modes (selectable)
- Selectable units lbf-in, kgf-cm, N-cm, or lbf-ft, kgf-m, N-m
- 800 data memory for recall or for SPC download
- USB virtual COM port sends peak (1 data) or continuous data (12 or 180 data/second)
- Statistics: number of readings, Max, Min, Avg
- Measures torque in both clockwise and counterclockwise directions
- Runs on internal NiCad batteries (8 hour use)
| Model | Drive Size | Capacity | Resolution |
|---|---|---|---|
| DIR-IP5 | 1/4" | 44.00 lb-in 50.00 kgf-cm 500.0 N-cm 5.000 | 0.01 lb-in 0.01 kgf-cm 0.1 N-cm 0.001 N-m |
| DIR-IP50 | 3/8" | 440.0 lb-in 500.0 kgf-cm 5000 N-cm 50.00 | 0.1 lb-in 0.1 kgf-cm 1 N-cm 0.01 N-m |
| DIR-IP200 | 1/2" | 1700 lb-in 140.0 lb-ft 20.00 kgf-m 200.0 N-m | 1 lb-in 0.1 lb-ft 0.01 kgf-m 0.1 N-m |
| DIR-IP500 | 3/4" | 4400 lb-in 360.0 lb-ft 50.00 kgf-m 500.0 N-m | 1 lb-in 0.1 lb-ft 0.01 kgf-m 0.1 N-m |
| DIR-IPS05C | 3/4" | 4.400 lb-in 5.000 kgf-cm 50.000 N-cm X N-m | 0.001 lb-in 0.001 kgf-cm 0.01 N-cm X N-m |
| DIR-IPS5C | 3/4" | 44.00 lb-in 50.00 kgf-cm X N-cm 5.000 N-m | 0.01 lb-in 0.01 kgf-cm X N-cm 0.001 N-m |
| DIR-IPS20C | 3/4" | 170.0 lb-in 200.0 kgf-cm X N-cm 20.00 N-m | 0.1 lb-in 0.1 kgf-cm X N-cm 0.01 N-m |

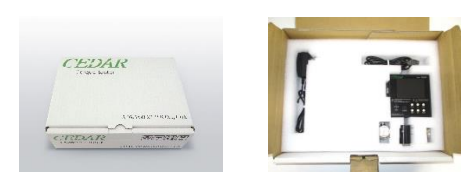

DIR-IP models are sold as kits. All kits include display, sensor, sensor cable and AC adapter/charger. The unit runs on internal rechargeable batteries. All new testers include a 3-point calibration certificate traceable to NIST. ISO-17025 certificates are available at an additional charge.
| Item | Description | Price | ||
|---|---|---|---|---|
Digital Torque Tester with Remote Sensor, 44.00 lbf-in / 500 Ncm -1/4" Drive | $1,956.00 | |||
Digital Torque Tester with Remote Sensor, 440 lbf-in / 50 Nm - 3/8" Drive | $1,446.00 | |||
Digital Torque Tester with Remote Sensor 145 lbf-ft, 200 Nm - 1/2" Drive | $1,446.00 | |||
Digital Torque Tester with Remote Sensor, 362 lbf-ft / 500 Nm - 3/4" Drive | $1,692.00 | |||
Digital Torque Tester with Remote Sensor, 4.4 lbf-in / 50 Ncm -3/4" Drive - Please contact us for pricing and availability. | $ | |||
Digital Torque Tester with Remote Sensor, 44.00 lbf-in / 500 Ncm -3/4" Drive - Please contact us for pricing and availability. | $ | |||
Digital Torque Tester with Remote Sensor, 170 lbf-in / 20 Nm -3/4" Drive - Please contact us for pricing and availability. | $ | |||
| Accessories | ||||
ISO-17025 | ISO-17025 Accredited Calibration with Certificate | $245.00 | ||
Data Acquisition Software for Torque Testers with RS-232 or USB ports | $264.00 | |||
AP-100L-2 | L-Plate Mounting Bracket for DI-1M-50 | $294.00 | ||
AP-100L-3 | L-Plate Mounting Bracket for DI-1M-200 | $294.00 | ||
AP-100L-4 | L-Plate Mounting Bracket for DI-1M-500 | $294.00 | ||
