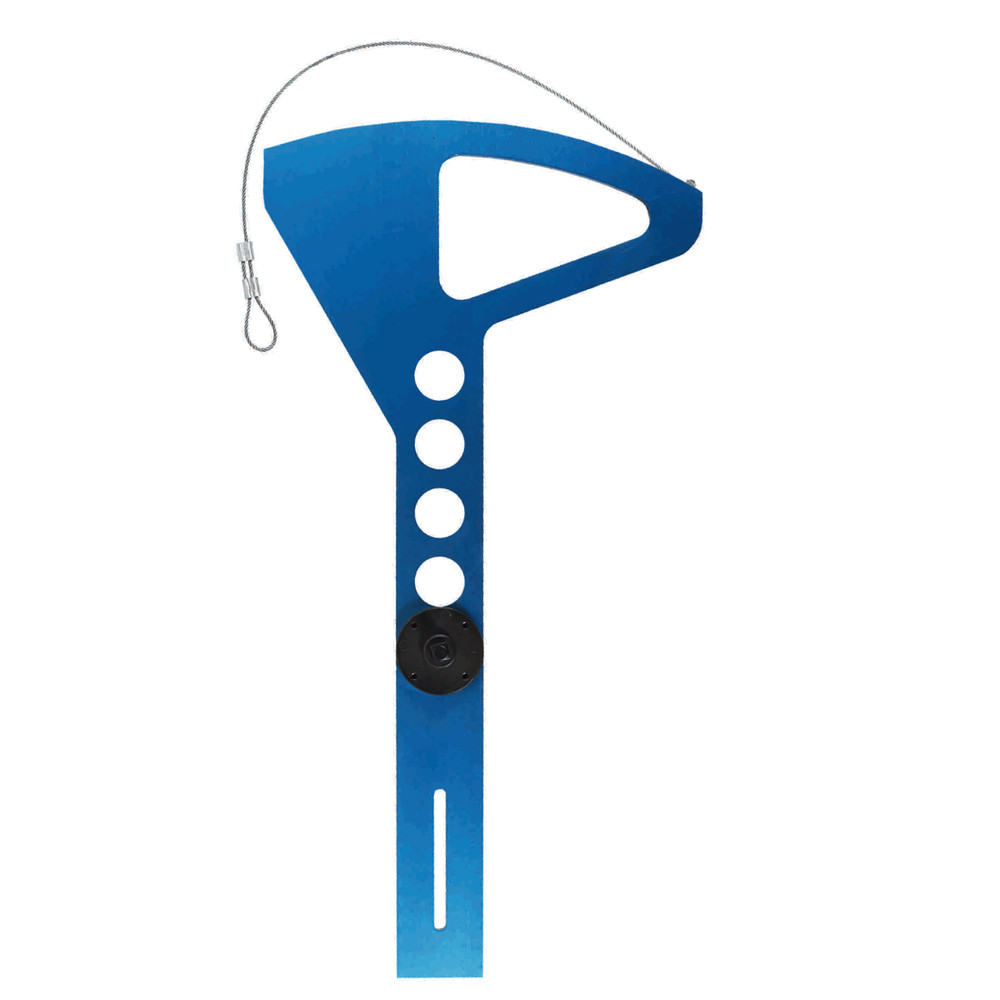

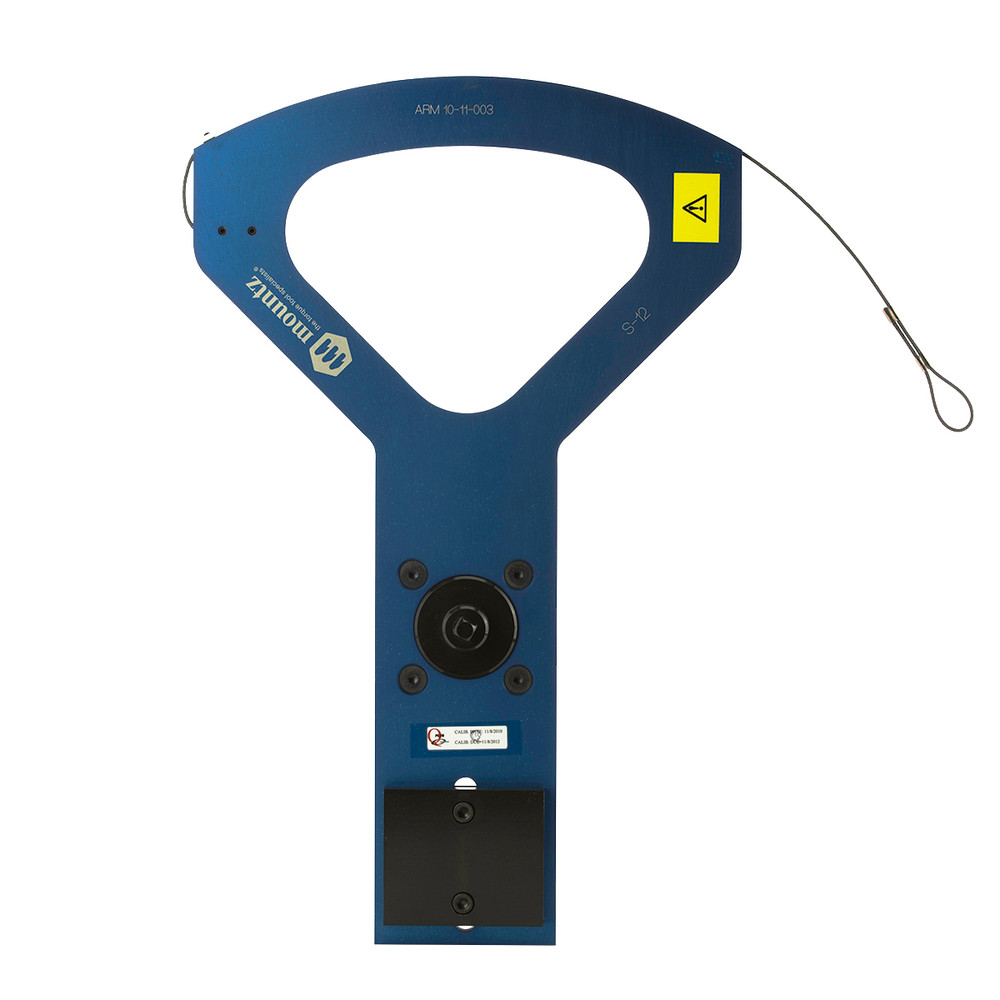

MZ-TA Torque Wheel and Torque Segment Arm

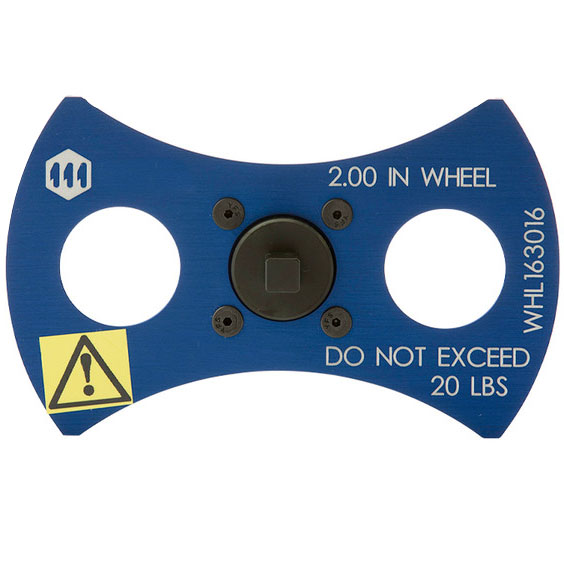

Torque Wheel for calibration
Click images to enlarge.
Calibrate your torque testers in house with our Torque Wheels and Segment Arms. We offer precision arms for calibrating sensors from 50 oz-in to 1000 lb-ft.

Note: Weights sold separately and are not available from Checkline.

Suggested source for calibration weights:
Rice Lake Weighing Systems - www.ricelake.com
Troemner Precision Weights - www.troemner.com

Features

  • Supplied with NIST traceable calibration certificate

Ranges

ModelLength (Inches)Max WeightMax TorqueToleranceInput Drive (Square)
069980150 oz50 oz-in+/- .001"1/4 Inch
060095220 lbs40 lb-in+/- .001"1/4 and 3/8 Inch
060064465 lbs260 lb-in+/- .002"1/4 and 3/8 Inch
0611061025 lbs250 lb-in+/- .005"1/4 Inch
0600941075 lbs750 lb-in / 62 lb-ft+/- .005"3/8 Inch
06005610100 lbs1000 lb-in / 83 lb-ft+/- .005"1/2 Inch
0600521275 lbs900 lb-in / 75 lb-ft+/- .006"3/8 Inch
06009312100 lbs1200 lb-in / 100 lb-ft+/- .006"1/2 Inch
06009124125 lbs250 lb-ft Capacity+/- .012"1/2 Inch
06005324250 lbs500 lb-ft Capacity+/- .012"3/4 Inch
06009048125 lbs500 lb-ft Capacity+/- .024"3/4 Inch
06005448250 lbs1000 lb-ft Capacity+/- .024"1 Inch
