500 Series for 500mm Jaw Depth (20")
Measuring Range:
0 - 10 mm (0 - 0.400") or 0 - 25 mm (0 - 1.000")Resolution: 0.01 mm (0.001")

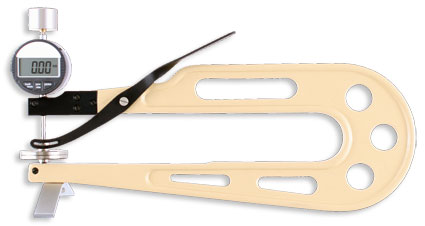

The MTT-10 is a digital dial thickness gauge designed for the accurate thickness measurement of non-woven fabrics, textiles, felts, geomaterials, paper, floor coverings, leather, foils, etc. It is offered with two different jaw depths providing clearance to measure wide samples. The combination of feeler diameter and load weight generate a specific "pressure" as required by many standardized test standard necessary in order to get reliable and repeatable measurements such as fabric, felt, textiles and similar compressible materials.
The instrument does not meet the DIN, EN and ISO standards.
The feeler shape and the pressure are corresponding to DIN EN ISO 5084 standards. This low-cost thickness gauge is suitable for quick comparison measurements.
| Type | Standard | Application | Feeler Ø | Feeler shape cm² |
Pressure |
| T | similar to DIN EN ISO 5084 | Textiles and Non- woven textiles |
50.42 | 20 | 1 kPA |
| V | similar to DIN EN ISO 9073-2 | Standard fleece | 56.42 | 25 | 0.5 kPA |
| L | similar to DIN 53326 (new 2589) |
Leather | 10 | 0.785 | 50 kPA |
| G | similar to DIN EN ISO 964- | GeoMaterials | 56.42 | 25 | 2 kPA |
| Measuring Range | 0 - 10 mm (standard) or 0 - 25 mm (optional) |
| Resolution | 0.01 mm |
| Accuracy | ± 0.02 mm |
| Depth of Jaws | 300 mm (300 Series) 500 mm (500 Series) |
| Display | LCD 4 Digit, 8 mm tall |
| Pressure | Refer to table below (gauge, feeler, weight) |
| Feeler shape | 50.5 mm Ø = 20 cm² 56.42 mm Ø = 25 cm² |
| Item | Description | Price | ||
|---|---|---|---|---|
| 10mm Measuring Range, 300mm Jaw Depth, Test Pressure 2 kPa | ||||
Digital Thickness Gauge, 0-10mm for TEXTILES & NON-WOVENS with 300 mm Jaw Depth | $595.00 | |||
Digital Thickness Gauge, 0-10mm for FLEECE with 300 mm Jaw Depth | $595.00 | |||
Digital Thickness Gauge, 0-10mm for LEATHER with 300 mm Jaw Depth | $595.00 | |||
Digital Thickness Gauge, 0-10mm for GEO-TEXTILE with 300 mm Jaw Depth | $595.00 | |||
| 10mm Measuring Range, 500mm Jaw Depth Test Pressure 2 kPa | ||||
Digital Thickness Gauge, 0-10mm for TEXTILES NON-WOVENS with 500 mm Jaw Depth | $595.00 | |||
Digital Thickness Gauge, 0-10mm for FLEECE with 500 mm Jaw Depth | $595.00 | |||
Digital Thickness Gauge, 0-10mm for LEATHER with 500 mm Jaw Depth | $595.00 | |||
Digital Thickness Gauge, 0-10mm for GEO-TEXTILE with 500 mm Jaw Depth | $595.00 | |||
| 25mm Measuring Range, 300mm Jaw Depth Test Pressure 2 kPa | ||||
Digital Thickness Gauge, 0-25mm for TEXTILES & NON-WOVENS with 300 mm Jaw Depth | $695.00 | |||
Digital Thickness Gauge, 0-25mm for FLEECE with 300mm Jaw Depth | $695.00 | |||
Digital Thickness Gauge, 0-25mm for LEATHER with 300 mm Jaw Depth | $695.00 | |||
Digital Thickness Gauge, 0-25mm for GEO-TEXTILE with 300 mm Jaw Depth | $695.00 | |||
| 25mm Measuring Range, 500mm Jaw Depth | ||||
Digital Thickness Gauge, 0 - 25 mm for TEXTILES NON-WOVENS with 500 mm Jaw Depth | $695.00 | |||
Digital Thickness Gauge, 0-25mm for STANDARD FLEECE with 500 mm Jaw Depth | $695.00 | |||
Digital Thickness Gauge, 0-25mm for LEATHER with 500 mm Jaw Depth | $695.00 | |||
Digital Thickness Gauge, 0-25mm for GEO-TEXTILE with 500 mm Jaw Depth | $695.00 | |||
