TELC System Low Cost Tension Monitoring System

Made in Germany
TELC System Low Cost Tension Monitoring System
Click images to enlarge.

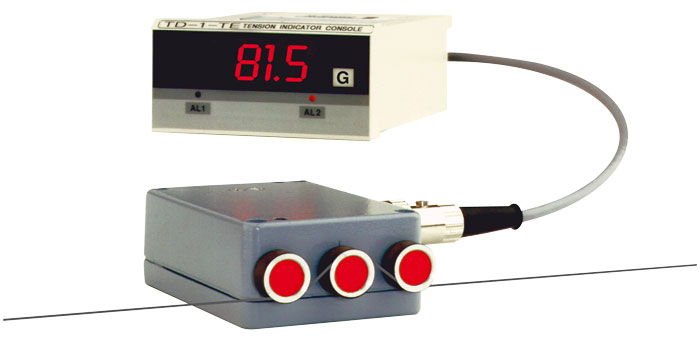

TELC Sensor plus TD-1-TE Indicator Accurately measures the running line tensions of yarns, fibers, wires, cables, films & similar process materials - continuously!

The TELC System detects "out of tolerance" conditions and immediately alerts operating personnel. This enables them to take the appropriate corrective action to maintain the highest product quality.

Additionally, the TELC Tension Sensor can be installed separately, as part of a user-supplied control-loop system.

NEW RS232 Serial Output (optional)

Features

  • Precision strain gauge accuracy of ± 1.5% or better
  • User-set high & low alarm limits with relays for alerting operating personnel of "out of tolerance" conditions
  • V-grooved rollers rated for speeds up to 2000 m/min are standard or, optionally, 3500 m/min (option K) or 5000 m/min (option HS)
  • Analog output for recording and control purposes
  • Built-in electronic damping to filter out fluctuating tension readings
  • RS232 Serial output (optional) allows you to connect your sensor to our SensorView software

Tension Ranges

ModelRange
TELC-1000-100 g
TELC-2000-200 g
TELC-5000-500 g
TELC-1K0-1 Kg
TELC-2K0-2 Kg
TELC-5K0-5 Kg
TELC-10K0-10 Kg

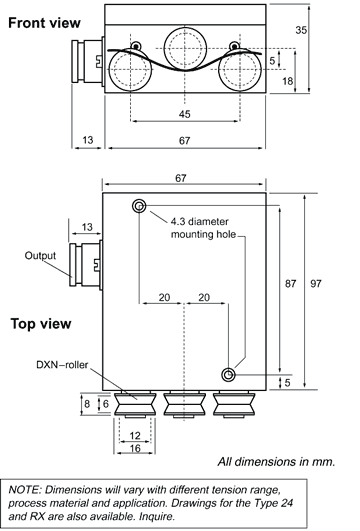

Dimensions

Special Purpose Models

Tapes/Films & Tows
Type RX
Uses 7, 10, 15, 20 or 30 mm wide cylindrical rollers for "strip" materials. Wider materials can be accommodated with other models.

Heavy-Duty Model
Type 24
Uses 30mm diameter hardened steel rollers for heavy wires, cable tire cord and similar process materials subjected to high impact loads

Related Products

Click image for more info
Digital Tension Indicator
- Can be scaled to any engineering units desired with user-set decimal point.
- 4-20 mA analog output for recording and control purpose (No analog output provided on PD765-6R5-10)
- Requires 85-265V AC Power, provides regulated power for the tension sensor
Click image for more info
Available Rollers for Hand-Held Tension Meters

Specifications

Accuracy±1.5% or better
Power Required12 - 24 V DC, regulated (20 mA)
Deflection0.5 mm maximum
Output (Standard)0-1 V DC
Output (Optional)0-10 V DC, 4-20 mA, RS-422 (Addressable)
Analog: 0 -2 V AC, linearized, app. 500 Hz
Digital: RS 422
Frequency Response50 Hz
Outer Roller Spacing40-200 mm, depending upon tension range, process material and application
Operating Temperature40 to 105° F (5-40° C)
