TE-RFS Multi-Configuration Tension Sensor

Made in Germany
TE-RFS Multi-Configuration Tension Sensor
Click images to enlarge.
Several Ranges up 500 Kg (5000 N / 1100 lbs)

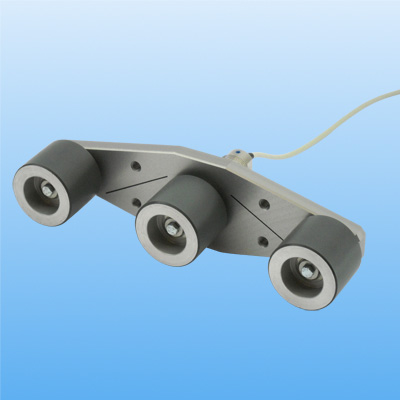

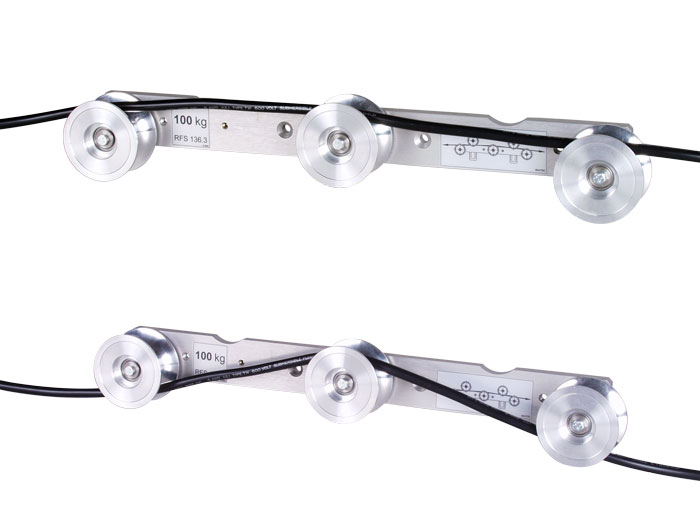

The new CHECK-LINE Model TE-RFS Tension Sensor measures the running line tensions of wires, optic fibers and cables. It is designed to minimize the effects of different material rigidities when measuring on a variety of material sizes and also features a unique "tri-tens" system where the material can be threaded through the 3 rollers in 3 distinct paterns.

Its unique strain-gauge design delivers excellent measurement precision and stability as well as providing maximum overload protection.

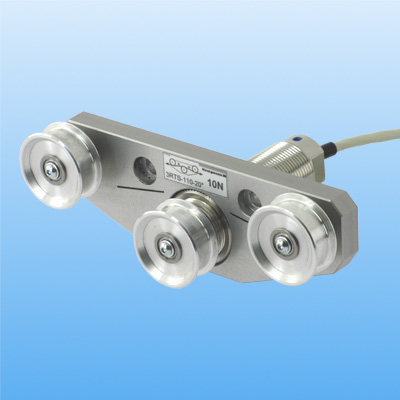

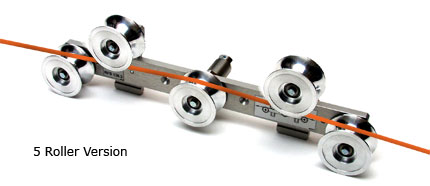

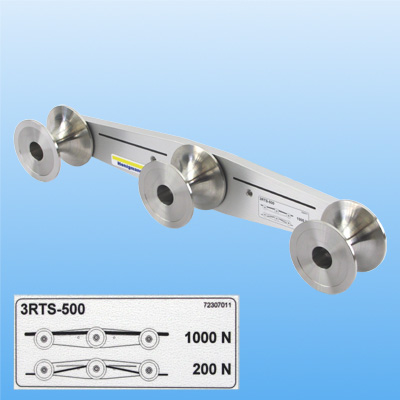

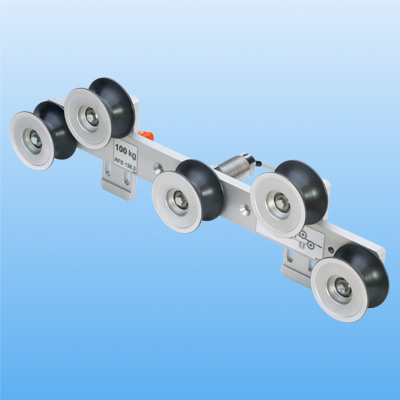

5-Roller version is offered to minimize tension fluctuations in applications where the process material vibrates, oscillates or is unsteady.

The 2 additional rollers mounted on top of the process material are mounted on adjustable brackets allowing them to be positioned so that they slightly contact the material.

They provide additional control to insure that the process material travels over the three primary rollers (located under the material) in a smooth and even fashion.

Features

  • Based on the precision tension sensor RFS 150
  • Measure a wide range of materials without need to adjust calibration, when using threading pattern "D"
  • Wear-resistant, ball-bearing guide rollers
  • Minimizes material deflection

Material Threading Patterns



Pattern D


Pattern E


Pattern F
Click images to enlarge

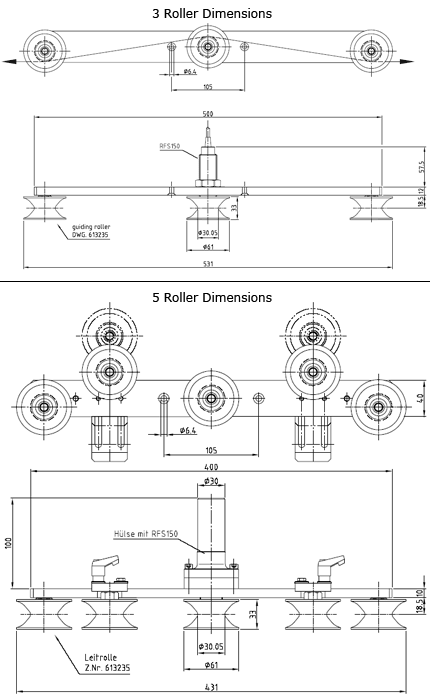

Dimensions

Related Products

Click image for more info
Strain Gauge Amplifier
- Designed for use with a wide range of strain-gauge-based force, load and tension sensors
- 0-10VDC analog output
Click image for more info
Digital Tension Indicator
- Selectable “damping function” reduces display fluctuations
- 24V DC power supply with galvanic isolation
Click image for more info
Tension Indicator/Amplifier Console
- 1 to 4 measuring channels
- For 24V DC power supply
- Rugged industrial design in steel plate-housing
Click image for more info
Data Transfer & Analysis Program For Honigmann Tension Sensors
- Real time display of measured values graphically and digitally, indicating the actual value in tension units
- Export data in ASCII format

Specifications

Accuracy± 1.5% Full Scale or better
Tension Ranges (Kg)Several Ranges up 500 Kg (5000 N / 1100 lbs)
Outer Roller Spacing (c:c)300 - 600 mm (depending upon material rigidity)
Guide RollersV Grooved, U Grooved or Flat Cylindrical (with or without flanges)
Roller MaterialNatural Aluminum, Hard Coat Aluminum, Ceramic Plasma-Coated Aluminum & Hardened Steel
Overload Protection200% +
Calibration CertificateOptional
