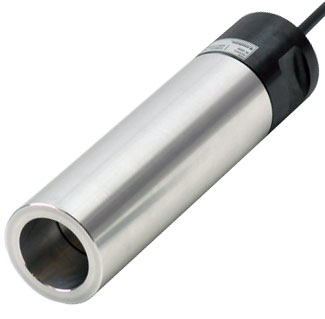

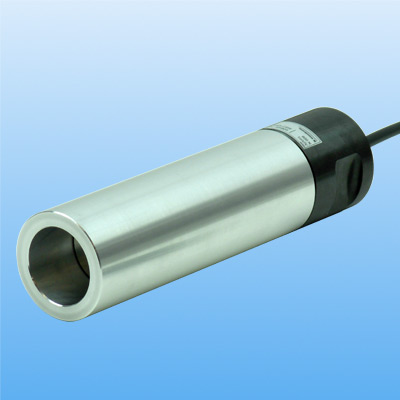

RMA-CSW Cantilever measuring rolls are used for direct tension measurement in narrow webs of films, foils, tapes, textiles or metals. Defined and setpoint-controlled web tension ensures high product quality and is the basis for a minimum of machine downtimes.
The compact RMA-CSW measuring rolls fulfill 2 functions at once:
- measurement of tension in the web
- guiding and deflecting the product web
- 2 construction sizes, available in 10 rated load ranges:
- 0 to 100 N ... 0 to 400 N, SR - Standard Range
- 0 to 500 N ... 0 to 1500 N, HR - High Range
- 0 to 3000 N, XR - eXtended Range
- Direct, radial force transfer
- Lever arm independent

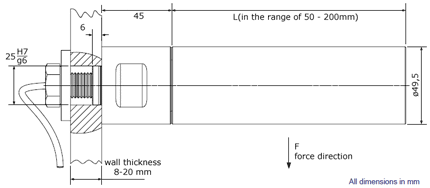

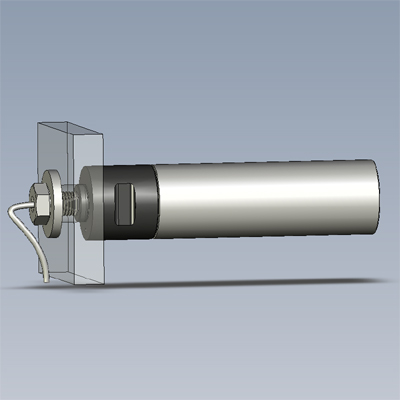

- Easy installation thanks to flange mounting
- High precision and excellent long-term stability
- High spring constants for the sensor permit high rotation speed ratings for the deflector roll
- Compact design
| Rated measuring ranges | 0 - 100 N up to 0 - 3000 N |
| Rated output | 1 mV/V |
| Rated output tolerance | < 0.2% |
| Accuracy class | 0.2% |
| Accumulated error | < 0.2% Full Scal |
| Excitation voltage max | 12 V |
| Reference excitation voltage | 4.5 V |
| Input resistance | 350 Ω±3 Ω |
| Output resistance | 350 Ω±2 Ω |
| Isolation resistance | > 5 GΩ |
| Nominal temperature range | 0…50 °C |
| Operational temperature range | -10…70 °C |
| Storage temperature range | -30…90 °C |
| Reference temperature | 23 °C |
| Temperature influence per 10 K | |
| - on the zero point (TK0) | < ±0.1% Full Scale |
| - on the calibration (TKC) | < ±0.2% Full Scale |
| Creep after 30 minutes | < ±0.1% Full Scale |
| Relative reversal error | < ±0.2% Full Scale |
| Service load | 300% Full Scale |
| Ultimate load | 400% Full Scale |
| Breaking load | > 500% Full Scale |
| Ultimate side load | 300% Full Scale |
| Dynamic load limit (DIN 50100) | 50% Full Scale |
| Axial torsional moment limit | 35 Nm |
| Deflection at nominal force | < 0.04 mm |
| Natural frequency of the sensor | depending on roll geometry and nominal force |
| Weight | Construction size 2: approx. 1.8 Kg Construction size 3: approx. 5 Kg |
| Connection cable | 3 m long, flexible, shielded 4 x 0,14 mm², total: 4.5 mm Diameter |
| Surface protection | black anodized finished |
| Protection class | IP 54 |
