CableSafe-RENT Leader Rope Tension Meter / Tension Sensor

Made in UK
rental tension meter for leader ropes
Click images to enlarge.
Available for RENT
Capacity: 22,000 Lbs (10te)

CableSafe Running Line Tensiometer is designed to measure the tension on running leader ropes or wire ropes that are used to pull fiber optic cables and other conductors thru conduit and cable troughs. When used in the field, it will allow the user to monitor tension with exceedingly high levels of accuracy, which ensures that rope/cables do not become overstretched or break.

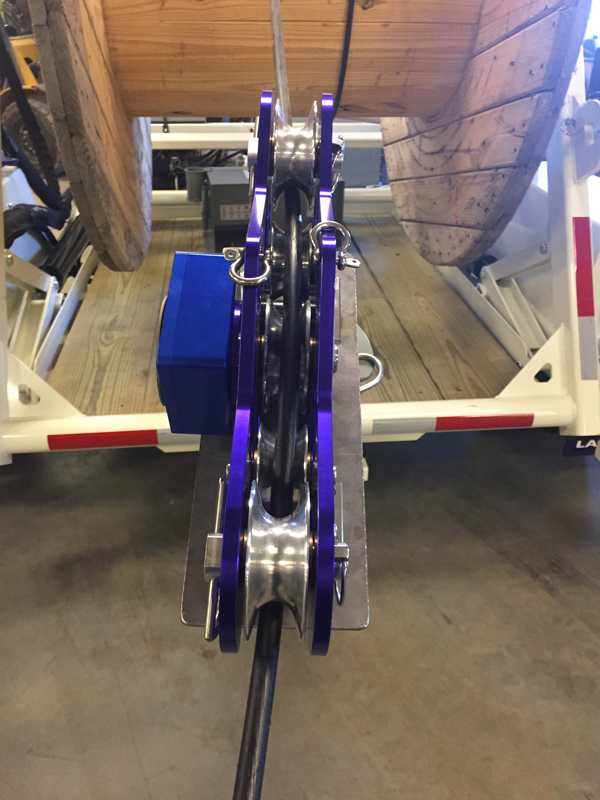

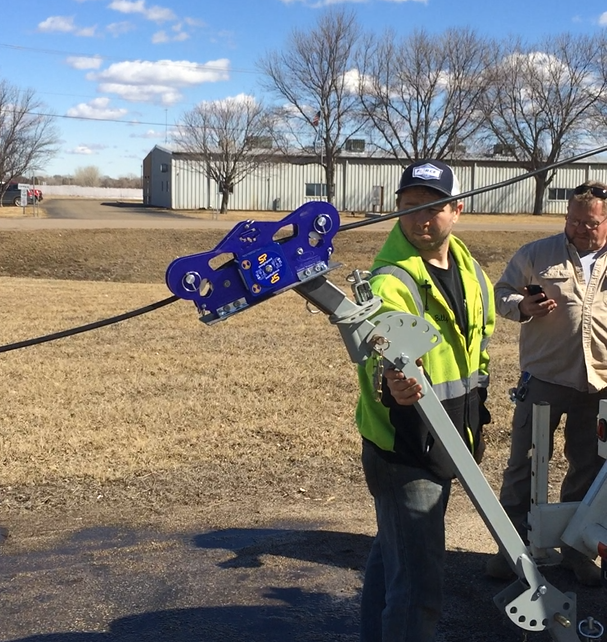

When using a capstan winch to unwind electrical cable from a reel/spool, you will be able to integrate the CableSafe within this setup to ensure that it is being pulled at a safe tension level. This helps the line maintain its transmissions capability, prevent it from becoming a fire hazard risk, and it also stops the need for furthering work in order to remove and replace it. The contractor is gifted with decreased liability and dramatically increased peace of mind. Ideal for the following applications:

-Measure tension when pulling electrical cables – protect against fractures or elongation
-Measuring tension on synthetic rope when erecting delicate structures using gin poles and capstan winch

Another example of best use is during the installation of cell phone towers or similar delicate structures. You will be able to use the product to help ensure structure-to-ground ropes, connected to a gin pole and pully system, do not exceed maximum tension whilst lifting sections of the tower to the top. There can be the possibility of the rope becoming snagged and cause greater tension to be loaded upon the system. With heavy materials being lifted to great heights; this would create a major safety hazard leading to a catastrophic failure with the endangerment of lives. Avoid the unknown through accurate monitoring, especially when risks are high.

What distinguishes it apart from previous versions of this type is the developed lightweight design that allows for easy transportation and usage. It also provides up to 500 hours battery life so that you can be assured that it won’t lose power before your work day has ended. The high level IP67/NEMA 6 ingress protection allows the product to be used in a variety of heavy weather conditions and dusty environments. These features, as a collective, means that it will be an invaluable and reliable tool in your work related armoury.

The five wheel design and gravity catches with top sheave pins allows for fast and simple rope attachment setup. The accuracy is also improved over three wheel alternatives.

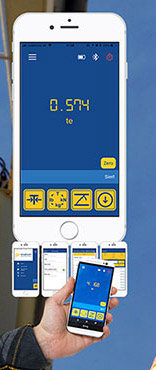

When used with a cable/rope pulling device you can remotely monitor the tension on the line using your smart handheld device via a Bluetooth connection*. You will be able to locate yourself up to 50m/164ft away from the Cable Safe to allow you to survey job progress from a distance.

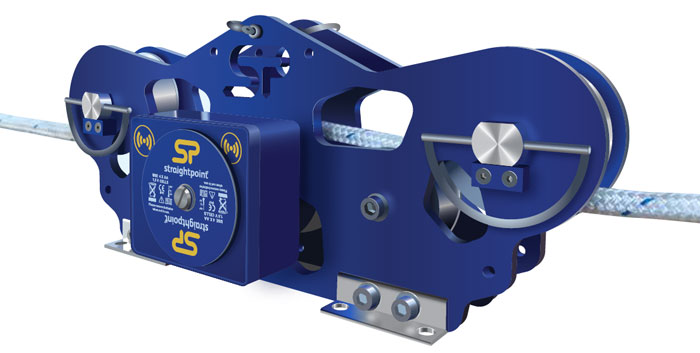

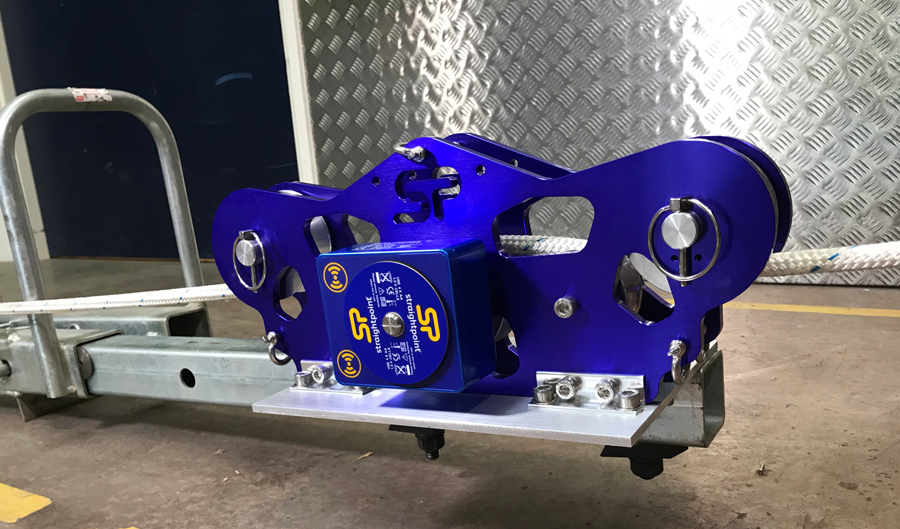

CableSafe capstan rope tension meter

Rental pricing:
$1500 for a 1-Week rental, $2000 for a 2-week rental, requires a $1500 security deposit refunded after return to Electromatic in "as-received" condition. Please call 516-295-4300 or email info@checkline.com for more details.
CALL 1-800-645-4330 FOR CURRENT AVAILABILITY,

Features

  • Remote monitoring option using smart phone via Bluetooth
  • For use on line speeds up to 165 Ft/min (50 meters/min)
  • For rope diameters from 0.157" up to 0.750" (4-19mm)
  • Calibration for larger diameter fiber ropes is available, Inquire.
  • IP67/NEMA 6 Protection for use in all weather conditions
  • Operated on 4 x AA standard Alkaline Batteries
  • Fully constructed from light and durable brushed Anodised Aluminium
  • Five wheel design improving accuracy (clear anodised)
  • Linchpins are fitted to the top sheave pins make wire rope installation quick and simple
  • Maintenance free heavy duty needle bearings
  • Bluetooth connection to app on smart mobile device to remotely monitor tension
  • Design validated by F.E.A.

Applications

Measuring loads in the following situations:

-Fibre optic cable pulling using turret winches
-Water gates for dams
-Offshore rescue and retrieval
-Capstan rope/cable winding
-Broadcast & telecommunications
-Erecting towers (maintaining structural capacity)
-Service & maintenance of cell towers

CableSafe Video

Supplied with the following as standard

-Calibration Certificate
-Operator Manual
-Carry/Storage Crate
-2-Year Warranty

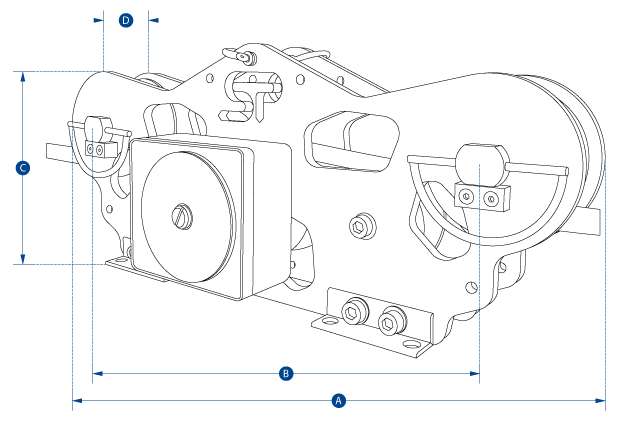

Dimensions


A = 422mm / 16.6"
B = 330mm / 13"
C = 152mm / 6"
D = 36mm / 1.4"

Specifications

Accuracy+/- 2% of Full Scale
Part NumberCS10T
Capacity10te
22,000lb
Lower ranges available upon request
Resolution0.01te
20lb
Rope Diameter4-19mm
5/32" - 3/4"
Calibration for larger diameter fiber ropes is available, Inquire.
Weight4.5kg
10lb
Battery Type4 x AA Alkaline
Battery Life500hrs
Operating Temp-10°C to +50°C / 14°F to 122°F
RangeBluetooth 50m / 164ft
ProtectionIP67 / NEMA 6
Maximum Speed100m per minute / 325 ft per minute

Downloads

Related Products

Leader Rope Tension Meter / Tension Sensor
Click image for more info
Software for SP Products with Bluetooth Option
TIMH Running Line Tensiometer built with dockside, marine, offshore, towage and salvage applications in mind.
Click image for more info
Running Line Tensiometer / Cable Tension Meter / Cable Tension Sensor
Rental pricing:
$1500 for a 1-Week rental, $2000 for a 2-week rental, requires a $1500 security deposit refunded after return to Electromatic in "as-received" condition. Please call 516-295-4300 or email info@checkline.com for more details.
CALL 1-800-645-4330 FOR CURRENT AVAILABILITY,

Buy Now

Item Description Price
Running Line Tension Sensor, Capacity of 22,000 Lbs (10 Te) with Bluetooth Output - 1 Week Rental
$1,500.00
Running Line Tension Sensor, Capacity of 22,000 Lbs (10 Te) with Bluetooth Output - 2 Week Rental
$2,000.00
Accessories
CABLESAFE-SECURITY
Refundable Security Deposit for CableSafe
$1,500.00
iOS & Android Load Display App for Bluetooth Enabled SP Devices - FREE Download
$0.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
