125-S-HDI Hand-Held Tension Sensor

Made in Germany

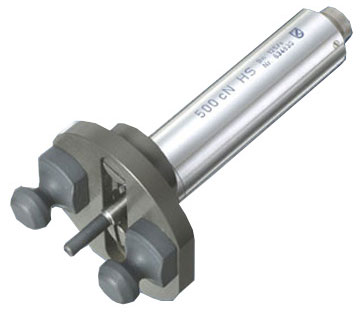

125-S-HDI Hand-Held Tension Sensor
Click images to enlarge.
Designed for measurement of high denier yarns for operating tensions up to 5Kg and for filament speeds up to 3000 m/min and higher.

Outer Rollers are mounted on a spring-loaded bracket which greatly simplifies acquisition of the yarn without stopping the speed. Special plasma-coated steel provides a ceramic-like coating with special "dimpled" surface structure which minimizes surface contact between the running yarn and the Non-rotating guide and sensor pins.

Connect sensor to our portable, Tension Indicators:
TM-353 Analog Tension Indicator
D-485 Digital Tension Indicator

Features

  • Ideal for high-strength, high denier yarns and fibers running at linear speeds up to 5000 m/min
  • Special plasma-coated steel provides a ceramic-like coating with special "dimpled" surface structure which minimizes surface contact between the running yarn and the Non-rotating guide and sensor pins
  • Small angle of contact minimizes twisting interference
  • Outer Rollers are mounted on a spring-loaded bracket which greatly simplifies acquisition of the yarn without stopping the speed
  • Lightweight and compact permits use in applications where access space is limited

Tension Ranges

ModelRange
125/S-500-HDI500 g/cN
125/S-1K-HDI1000 g/cN
125/S-2K-HDI2000 g/cN
125/S-3K-HDI3000 g/cN
125/S-4K-HDI4000 g/cN
125/S-5K-HDI5000 g/cN

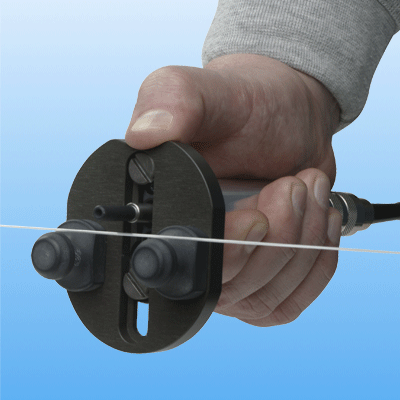

Material Threading Animation

Related Products

Click image for more info
Analog Tension Indicator with Built-In Amplifier
- Zero adjustment compensates for all measurement positions
- Provides 0-1 VDC analog output for recording purposes
- Three amplification settings are user-selected to provide maximum display resolution
Click image for more info
Digital Tension Indicator with Built-In Amplifier
- Convenient one-hand operation
- Tension values can scaled to a wide variety of engineering units
- Automatic zero setting and Hold function with slide-switch
- Averaging Mode (0.5 sec interval)
Click image for more info
Limited Access Tension Meter
- Small angle of contact minimizes twisting interference
- Easy to load thread

Specifications

Measuring PrincipleCapacitive Sensing
Accuracy±1.0% or better
Material Deflection15 Degrees
Roller MaterialPlasma Coated Steel
Dimensions100mm x 25mm diameter
Weight100 grams
Calibration CertificateOptional
