125-12-LFX Limited Access Tension Meter with Extra Long Probes

Made in Germany

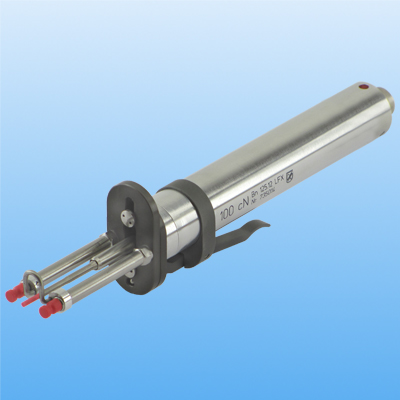

125-12-LFX Tension Meter
Click images to enlarge.
8 Ranges
0 - 10g up to 0 - 500g

The Series 125-12 Tension Meters are designed to measure tensile forces in textile threads. They find applications in spinning mills, texturizing operations, research laboratories, weaving mills, knitting mills, yarn spinning plants etc.

The slim design in addition to the long measuring fingers enables the user to measure at narrow available space and difficult accessible, distant locations.

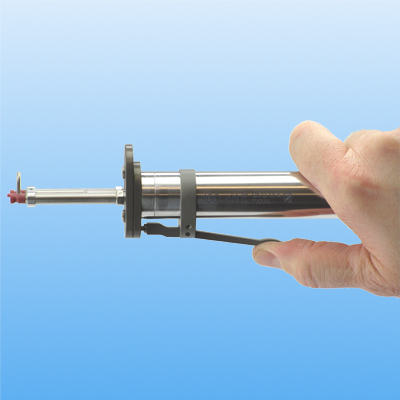

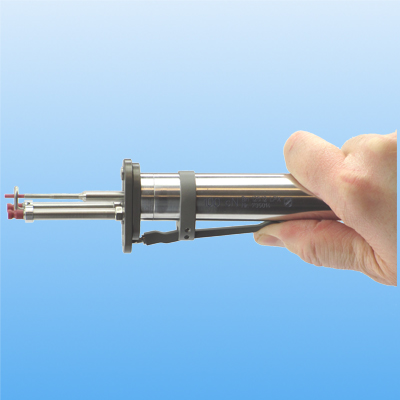

Comfortable and safe handling even on measurements in a heat chamber by lever-operated auto-threading function.

Features

  • Extra-long probes to reach any inconvenient place.
  • Small yarn deflection angle for minimum interference to yarn path and twist, low mechanical load to the thread.
  • Low friction and low stress for the yarn even at high speeds.
  • Robust by effect overload protection (1000% related to the rated load.)
  • High measuring precision and long-term stability.
  • Special clip type lever for safe and comfortable threading even at high temperatures at the measuring location.
  • Ceramic thread guides with a surface which is gentle on the threads.
  • High natural frequency for use at line speeds > 7000m/min

Thread Guides

The non-rotation ceramic thread guides have a gnetle surface with low coefficient of friction.

Standard Standard:
Structured surface (orange peel), especially for flat yarn.
Option Option:
Polished surface, for texturized yarn.

Related Products

Click image for more info
Digital Tension Indicator with Built-In Amplifier
- Convenient one-hand operation
- Tension values can scaled to a wide variety of engineering units
- Automatic zero setting and Hold function with slide-switch
- Averaging Mode (0.5 sec interval)
Click image for more info
Analog Tension Indicator with Built-In Amplifier
- Zero adjustment compensates for all measurement positions
- Provides 0-1 VDC analog output for recording purposes
- Three amplification settings are user-selected to provide maximum display resolution
Click image for more info
Limited Access Tension Meter
- Small angle of contact minimizes twisting interference
- Easy to load thread
Click image for more info
Hand-Held Tension Sensor
- Ideal for high-strength, high denier yarns and fibers running at linear speeds up to 5000 m/min
- Special plasma-coated steel provides a ceramic-like coating with special "dimpled" surface structure which minimizes surface contact between the running yarn and the Non-rotating guide and sensor pins

Dimensions
