125-12 Limited Access Tension Meter

Made in Germany

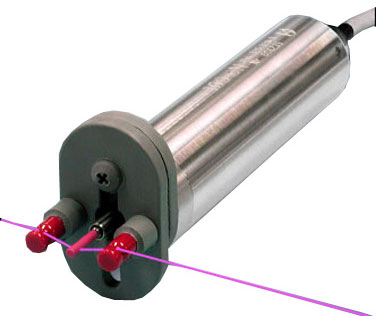

125-12 Limited Access Tension Meter
Click images to enlarge.
7 Ranges
0 - 10g up to 0 - 500g

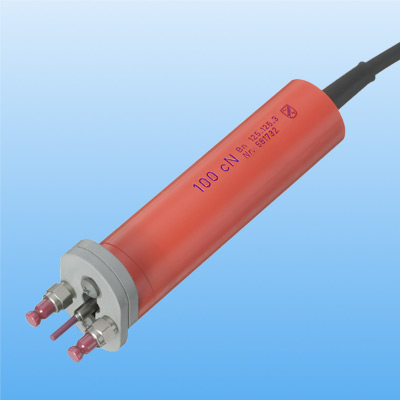

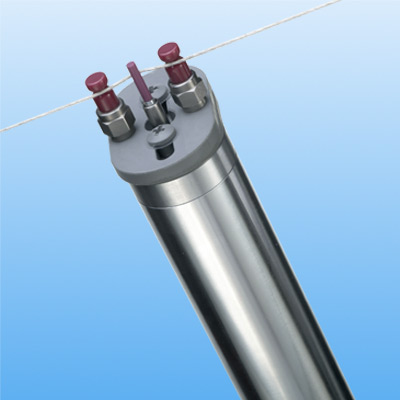

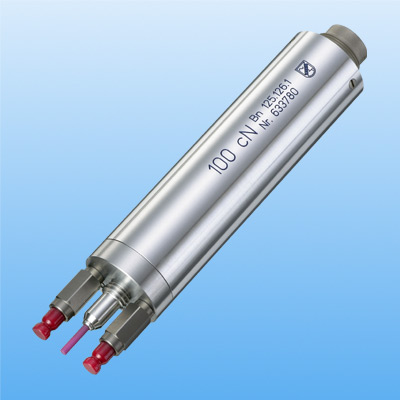

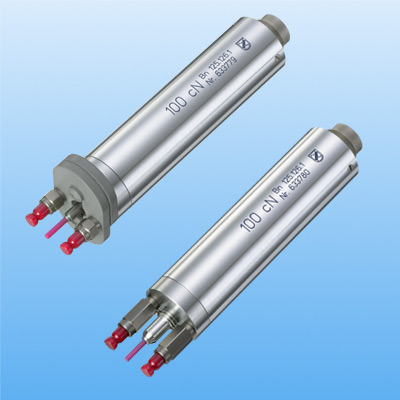

The Series 125-12 Tension Meters are extremely compact for use on low tension applications where access space is limited. They are offered with ceramic thread guides or precision ball bearing mounted rollers.

High overload protection and optional waterproof design makes this model ideal for all laboratory & production.

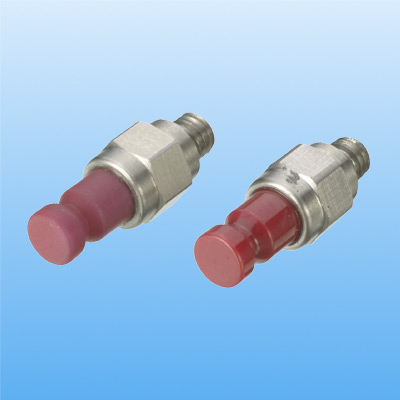

Two kinds of ceramic thread guides with a gentle surface and a low coefficient of friction are supplied to each sensor for various measuring tasks:

On the left:
• structurered surface (orange peel), especially for flat yarn

On the right:
• polished surface, e.g. for texturized yarn

The optional available, shiftable thread guiding device FFA offers comfortable and smooth threading into the running process.

Features

  • Small angle of contact minimizes twisting interference
  • Easy to load thread
  • Ceramic thread guides provide a surface that is gentle on the threads, making for low friction and even wear at high running speeds

Tension Ranges

ModelRange
125-12-100-10g
125-12-200-20g
125-12-30 0-30g
125-12-50 0-50g
125-12-100 0-100g
125-12-200 0-200g
125-12-300 0-300g
125-12-500 0-500g

Material Threading Animation

Related Products

Click image for more info

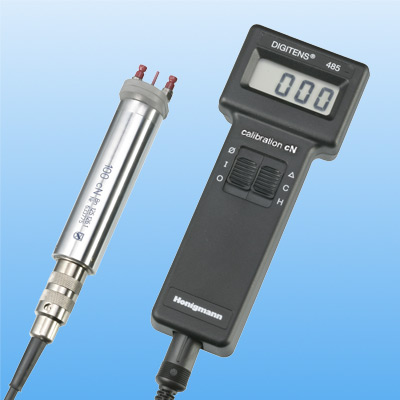

Digital Tension Indicator with Built-In Amplifier
- Convenient one-hand operation
- Tension values can scaled to a wide variety of engineering units
- Automatic zero setting and Hold function with slide-switch
- Averaging Mode (0.5 sec interval)
Click image for more info
Analog Tension Indicator with Built-In Amplifier
- Zero adjustment compensates for all measurement positions
- Provides 0-1 VDC analog output for recording purposes
- Three amplification settings are user-selected to provide maximum display resolution
Click image for more info

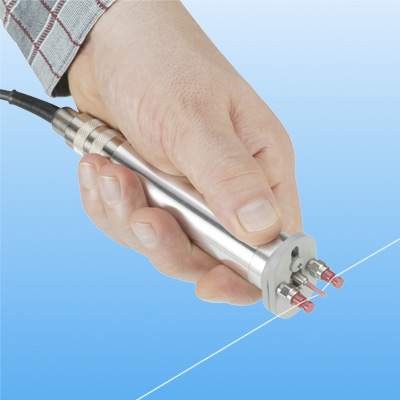

Hand-Held Tension Sensor
- Ideal for high-strength, high denier yarns and fibers running at linear speeds up to 5000 m/min
- Special plasma-coated steel provides a ceramic-like coating with special "dimpled" surface structure which minimizes surface contact between the running yarn and the Non-rotating guide and sensor pins

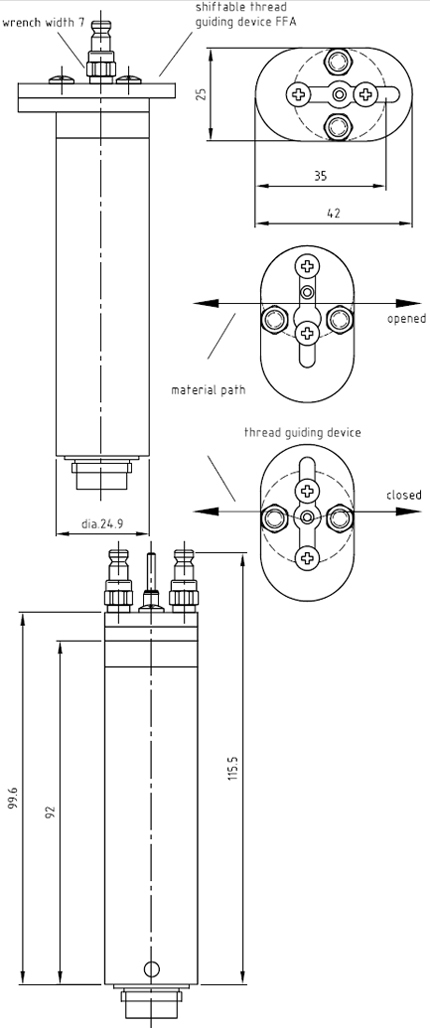

Dimensions

Specifications

Measuring PrincipleCapacitive Sensing
Tension Ranges0-10g, 0-20g, 0-30g, 0-50g, 0-100g, 0-200g, 0-300g, 0-500g
Accuracy±1.0% or better
Material Deflection15 Degrees
Thread GuidesCeramic Pins (Standard)
Ball-bearing mounted rollers (optional)
Dimensions100mm x 25mm diameter
Weight100 grams
Options Outer thread guide shifting plate
Ball-bearing mounted rollers
Splash-proof protection
Special thread guide design
Calibration CertificateOptional
