TS503 Strain Gauge Amplifier

TS503 Strain Gauge Amplifier
Click images to enlarge.

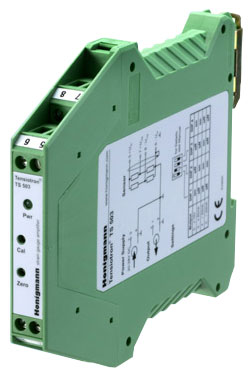

The TS503 electronic strain gauge amplifier is designed for use with most strain gauge-based sensors, esp. for tension measurement.

Best temperature stability, long-term stability and high accuracy are guaranteed by using modern technology. The very compact design, convenient mounting and high quality are the features of the amplifier TS503.


  • Slim-line housing for DIN-EN rail mounting – only 12.5 mm in width
  • Direct input power supply of 24V DC
  • Provides a well-regulated power supply for sensor excitation
  • Great noise immunity and service reliability for use in rough industrial operation
  • LED indicates power-on status
  • Adjustments for zero and amplification setting by trimpot
  • Connection via screw terminals
  • Output signal selectable by DIP-switches:
    - voltage 0 to ±10V or
    - current 0-20mA / 4-20mA, unipolar or bipolar
