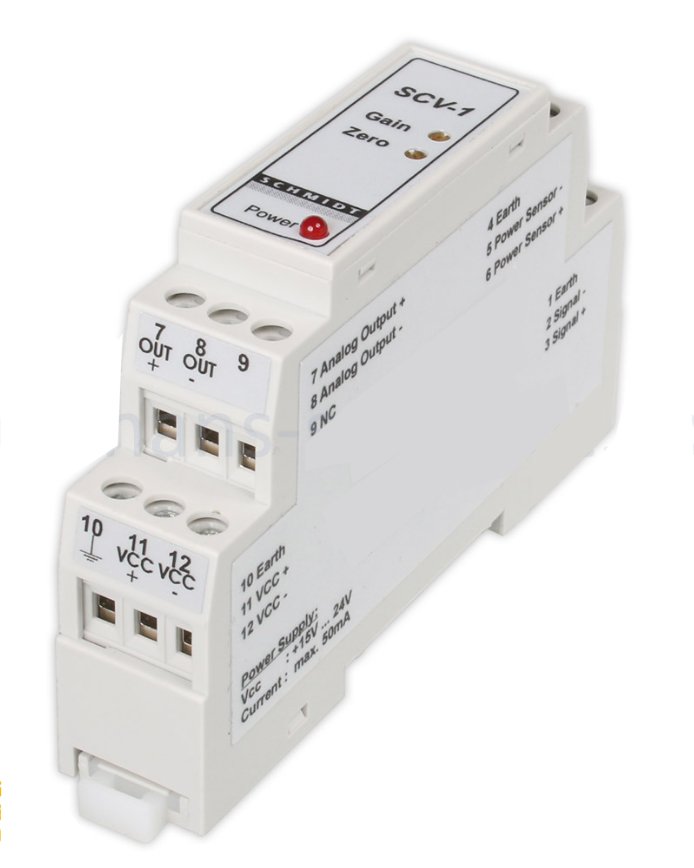

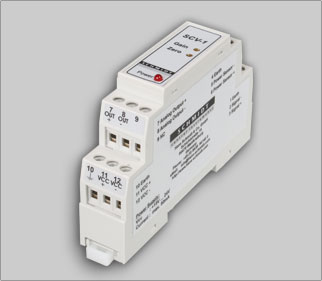

SCV-1 Amplifier SCV-1

Made in Germany
Click images to enlarge.
Strain gauge amplifier for sensors without integrated amplifier (mV/V output)

Convenient for all sensors of TS2, TSC and SF series Tension Sensors

Designed for DIN Rail Mounting

Features

  • For use with sensors providing mV/V output
  • Provides ZERO and GAIN Adjustment Pots for Calibration purposes
  • Output signals:
    Analog: 0 - 1 V DC (standard)
    Analog: 0 - 10 V DC (option A2)
    Current: 4 - 20 mA (option A3)
  • DIN Rail Mounting
  • Requires 15-24V DC power source
  • CE certified with sensor connected
  • LED Indicator shows Power to Amplifier

Specifications

Output signal:analog: 0 - 1 V DC /R (Last) ≥ 5kΩ
analog 0 - 10 V DC (option)
4 - 20 mA instead of 0 - 10 V DC
Input signal:mV/V
Power supply:15 - 24 V DC, 50 mA
Temperature range:10 - 45° C
Air humidity:85 % RH, max.
Housing:Plastics

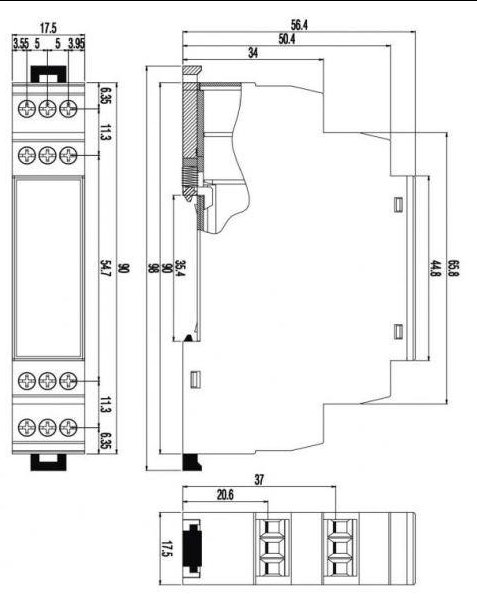

Dimensions:90 x 56 x 18 mm (LxWxH), DIN EN 60715 tophat rail box
Weight, net (gross):Approx. 53 g

Complete Kit

Amplifier with transport packaging, operating instruction in german and english, Certificate of Compliance with the order 2.1 according EN 10204 free of charge
