SCD-1 Display Unit

SCD-1 Tension Indicator
Click images to enlarge.

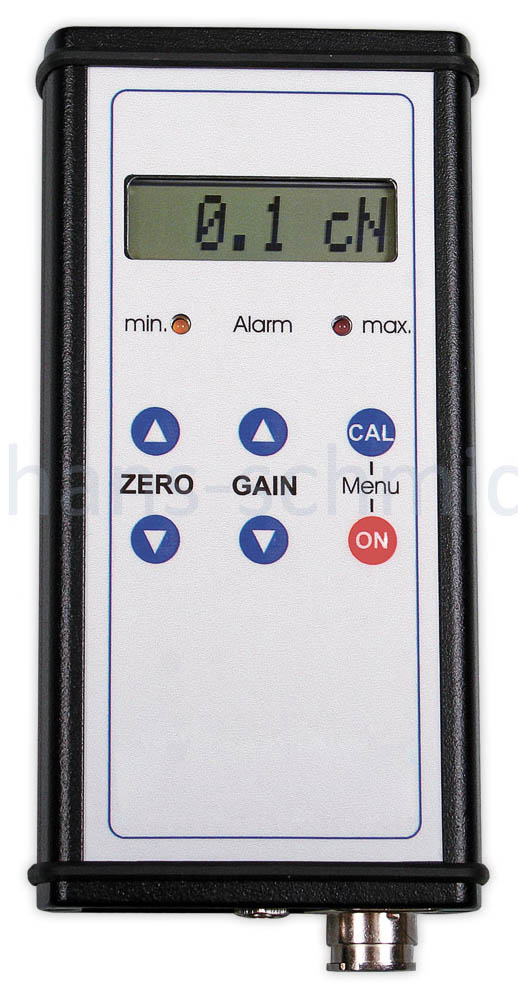

Display unit with LCD display for 1 sensor. All tension sensors series TS and FS with analog output signal 0 - 1 V can be connected.

Display for wall-mounting or as desktop device

Indicator with digital output signal for data processing with PC


  • Display unit with small, compact housing
  • Adjustable damping for output signal and display for easier reading if tension fluctuates
  • Menu for configurating the device (alarm limits, damping, units, tension range, adjustment graph)
  • User set limits with LED and Open Collector for external signal unit MIN - MAX interface (Open Collector) for connecting an external signal unit
  • Power supply by separate AC adapter
  • Wall-mounting possible

Available Models

ModelConnectable SensorsOutput signal
SCD-1Sensors with measuring amplifier0 - 10 V DC, RS 232, Open Collector
SCD-1DSensors without measuring amplifier0 - 10 V DC, RS 232, Open Collector


  • Digital: RS-232 for connection to a PC
  • Analog: 0 - 10 V DC for connection to a line recorder or for signal processing
SCD-1 Tension Indicator

Output Signal

Name Output Signal
digital RS 232
analog 0 - 10 V DC
open collector
80 readings can be transfered per second. (internal sampling rate max. 19200 times/s)
Click picture for more information

Complete Kit

Display unit with transport packaging, 1 AC adapter, operating instruction in german and english, Certificate of Compliance with the order 2.1 according to EN 10204 free of charge



Digital display Dotmatrix LCD, 12 mm high with backlight
Measuring unitscN, daN, g or kg adjustable
Tension rangeAdjustable
Damping (fg)16 steps adjustable
Output signalAnalog: 0 - 10 V DC R (Last) ≥ 5 kΩ
Digital: RS 232 (19200, 8, N, 1), 80 values/s
SetpointsProgrammable MIN/MAX limits with LED-diode
Output signal setpointsOpen Collector max. 30 V DC, 10 mA
Voltage output for sensorYes
Power supply12 ... 24 V DC/AC 100 mA
AC adapter 100 - 240 V AC, 50 - 60 Hz with 3 adapters (EU/USA/UK)
Temperature range10 - 45° C
Air humidity85 % RH, max.
Dimensions182 x 85 x 34 mm (LxWxH)
Weight (gross)Approx. 300 g (approx. 1000 g)
