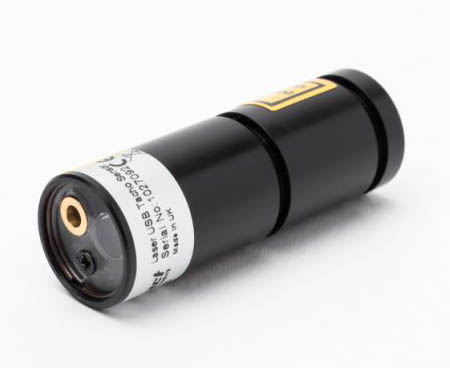

MiniVLS 313 USB Laser Speed Sensor / Tachometer

Made in UK
MiniVLS-313 USB Tachometer Laser Speed Sensor
Click images to enlarge.

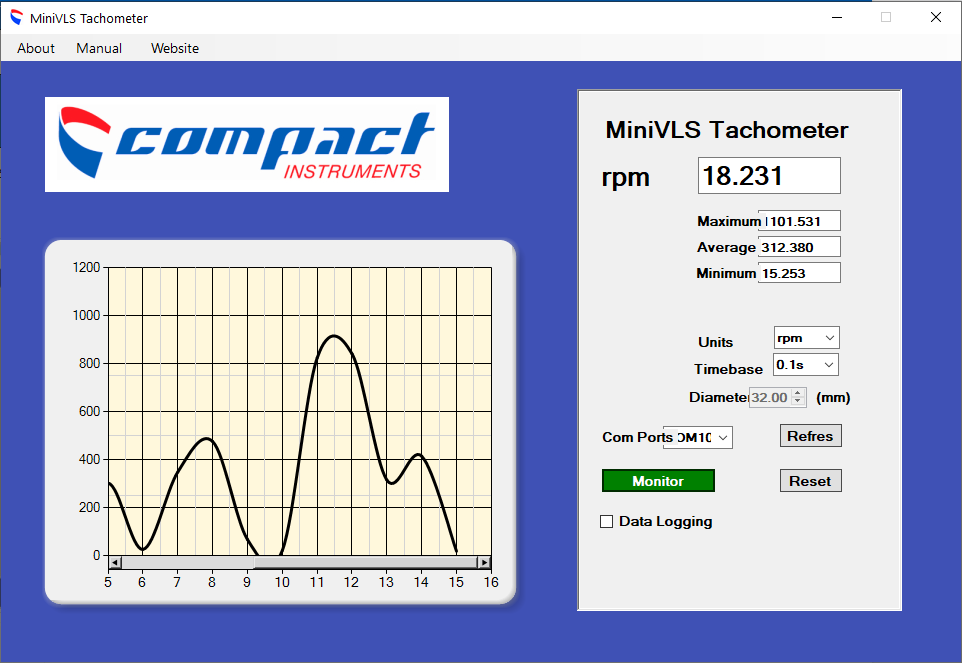

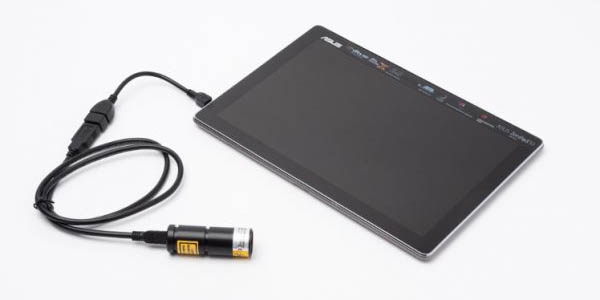

The MiniVLS 313 is a laser speed sensor with USB output for sending data direct to a PC or Android device.

Features

  • Pocket Sized Design
  • Selectable Sampling, from 0.1s to 5s
  • Powered by USB, no batteries or external power required
  • Can be used to measure RPM or Linear Speed

In The Box

• Instruction Manual
• MiniVLS 313 Speed Sensor USB Laser Tachometer
• Reflective Tape
• USB 3.1 Type C Male to USB 2.0 Type A Female Socket Adapter with OTG
• OTG USB On The Go Host Adapter Cable USB A Female to Micro B Black
• USB 2.0 to mini-B 5 pin Cable

Specifications

Optical Laser Range2 - 78 in / 50mm - 2000mm
Light SourceRed Laser Class II 635nm
Optical Angle± 80° degree to reflective marker
Speed Measurement Range3 - 99,999 rpm
Resolution0.001 rpm
Operating Temperature32 - 122 F / 0 - 50 C
Baud Rate115,200

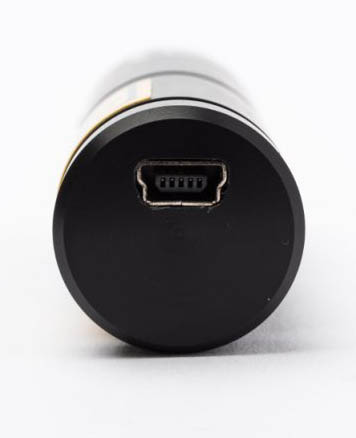

Connector / Power SourceMini USB
Sampling Rate0.1s to 5s (Adjustable)
Dimensions.78 - 2.55 in / 20 x 65 mm

Downloads

Buy Now

Item Description Price
USB Laser Speed Sensor / Tachometer
$425.00
Accessories
MVLS-BR1
Bracket for MiniVLS Sensors
$95.00
Reflective Tape, 1/2" x 5'
$15.00
NISTCAL
NIST Traceable Calibration Certificate
$100.00
Tripod for Tachometers and Stroboscopes
$35.00
