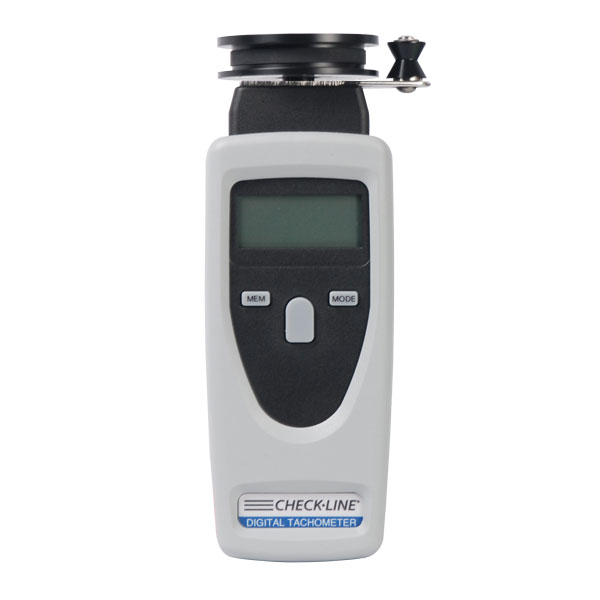

CDT-2000HD-TE Wire, Cable, and Rope Speed Meter

CDT-2000HD-TE Wire, Cable, Rope Speed Tachometer
Click images to enlarge.
CDT-2000HD-TE allows the device to measure speed and length of wires, cables and ropes up to 8 mm diameter, e.g.in elevator applications. The CDT-2000HD-TE is just as useful when setting up plants and machinery as during service jobs, monitoring manufacturing processes or in development laboratories. Example applications include measuring the rotational speeds of engines, pumps and turbines, as well as of mixers, centrifuges and conveyors; it can also measure the velocities and lengths of all kinds of threads, sheets and belts.

Features

  • Measurement of wires, cables and ropes up to 8 mm
  • Used for elevator applications and similar applications for measure cable speed and length
  • Wire Speed can be measured in feet/min, meters/min or in/min (user selectable)
  • Total Length can be measured in feet, meters, inches.
  • Wrapper roller mounted beside main roller insures adequate contact to eliminate slippage
  • Designed and fabricated in Germany
  • Includes Traceable Calibration Certificate

How to Use the CDT-2000HD-TE

Related Products

CDT-2000HD hand-held tachometer
Click image for more info
Combination Contact and Non-Contact Digital Tachometer
- Measures speeds from as low as 1.00 rpm up to 99,999 rpm
CDT-ADAP-CS20 Wire, Cable, and Rope Speed Adaptor
Click image for more info
Wire, Cable, and Rope Speed Adaptor
- Measurement of wires, cables and ropes up to 8 mm
- Used for elevator applications and similar applications for measure cable speed and length

Specifications

Measuring Ranges
RPMNon-Contact: 1.00 - 99,999 rpm
Contact: 1.00 - 19,999 rpm
Surface Speed0.30 - 6,500 feet/min
0.10 - 1,999 meters/min
4.0 - 78,000 inches/min
Length0.01 - 99,999 feet
0.02 - 99,999 meters
1.0 - 99,999 inches
General Specifications
Measurement DiameterUp to 8mm
Resolution.01 from 0 - 100
.1 from 100 - 1,000
1 from 1000 - 99,999
Accuracy± 0.02% of reading or 1 digit
Display5 - Digit LCD, 10mm high
Decimal PointAutomatic
Memory SystemMaximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement SystemNon-Contact: Visible LED light beam
Contact: Contact adapter
Engineering UnitsRPM: RPM
Surface Speed: Ft/min, inch/min & meters/min
Length: Feet, inches, meters
Sensing DistanceUp to 24 inches (60 cm)
Display Update Time0.5 seconds or one measuring
Auto Power OffAfter 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life40 hours continuous use
Battery2 AA (1.5 V) or rechargeable
Weight6 ounces (170 grams)
Housing MaterialABS Plastic housing with removable protective rubber shell
Housing RatingIP40
Operating Temperature32 to 122° F (0 to 50° C)
Storage Temperature-4 to 150° F (-20 to 70° C)
Accessories includedContact adapter, cone tip, universal surface speed wheel, reflective tape, operating instructions and foam-fitted, hard plastic carrying case
Optional AccessoriesShaft extension, 3.15 inches (80 mm)
Warranty5 years
Calibration CertificateIncluded

Complete Kit

The CDT-2000HD-TE includes the Tachometer, Wire, Cable, and Rope Speed Adaptor, Slide-In Tachometer Contact Adapter, 6" & .1m Surface Speed Wheels, Cone Tip, Funnel Tip, Extension Shaft, Reflective Tape, Two (2) AA Batteries (1.5 V), Calibration Certificate and Operating Instruction Manual -- all supplied in a foam-fitted, hard-plastic Carrying Case.
