MS-2700EX Intrinsically-Safe LED Stroboscope
EX-Proof Strobe

Click images to enlarge.

DISCONTINUED - New Model Coming Soon

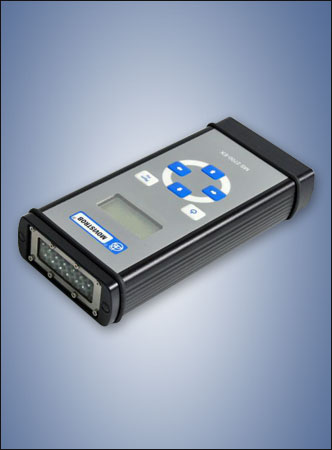

The Movistrob MS-2700EX is digital LED hand-held stroboscope specifically-designed for use in the hazardous areas. As with all other stroboscopes it is commonly used to observe, analyze & measure the speed of targets/objects that are in rotational or reciprocating motion. When the flash rate of the LEDs matches the speed of the target, the target will look like it is "frozen" and stationary. If the user adjust the flash rate in either direction it is possible to put the target in "slow motion" allowing you to observe it motion.

It is housed in a extruded aluminum housing with a rating of IP65 designed for use in the toughest applications. It is powered with a 9VDC battery and incorporate 20 LEDs for flash rates up to 20,100 (350 Hz). Best results are likely in low ambient lighting conditions as the brightness is limited and should not be compared to a Xenon Strobe.

The Movistrob MS-2700EX is Intrinsically-Safe and has been certified to European Standards for use in ex-proof areas classified as zone I and 21 according to norm 1999/92/EG (ATEX 137).

Features

  • Approved for zone 2 and 1, device group II, gas group C (explosive gases, vapours or mist), temperature class T4 per European norm 1999/92/EG (ATEX 137)
  • Broad field of application up to 20,100 FPM (350 Hz)
  • Robust aluminum housing
  • Easily change between FPM/RPM and frequency (Hz) units with a touch of a key
  • Powered with 9V DC battery
  • Lightweight and portable

Specifications

Frequency range60 - 20,100 RPM (FPM/RPM) or 1 - 335Hz
with automatic flash power control
Flash duration45 - 185µs
Light Source20 white light LEDs
Trigger actioninternal oscillator
Internal controladjustable via keypad with cursor function, standby (after 2minutes) with data-hold function, automatic switch-off with storage function of the last set value.
Displayvia LC Display selectable in Hz (flashes per sec.) or RPM (min-1)
Accuracy<± 0.1% of set value
Memorylast value
Flash power control / range switchingautomatic
Power supply9V DC (block-6LR1) battery
Power consumption70mA / Standby 25mA
HousingAluminium with IP65 rating
Operating temperature-4°F to +122°F (-20°C to +50°C)
Dimensions178 x 84 x 35 mm
Weightapprox. 400 g (incl. Battery)
