ChainSafe Chain Load Monitoring Bluetooth Tension Load Cell

Made in UK

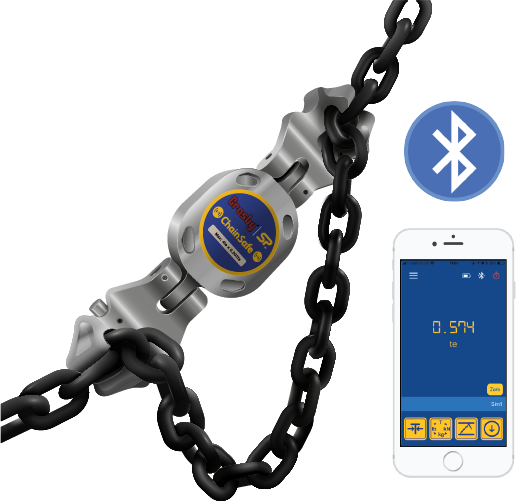

ChainSafe Tension Loadcell
Click images to enlarge.
The ChainSafe is a tension load cell with Bluetooth output designed for use along the length of the chain. It is capable of load monitoring of capacities up to 4te. An array of chain fittings allow for the Chainsafe to measure applications where chain slings, chain lashings, and tie-downs are used.

The ChainSafe design has an unrivalled strength to weight ratio with a completely sealed stainless steel enclosure providing IP67 or NEMA6 environmental protection, making this industry-leading dynamometer even more suitable for use in the harshest environments.

The versatile chain load monitoring device has an update rate of 1Hz and the Bluetooth signal effortlessly connects to any iOS or Android smartphone that has our free HHP app installed. This will provide the operator with a wireless range of up to 328ft or 100m – measuring the load from a safe distance. The app will also allow the operator to log data versus time or on events such as over or underload and the adjustable alarm will alert the operator on their smartphone if any overload is occurring.

Fittings are SOLD SEPARATELY

Features

  • Bluetooth wireless range of 100m/328ft
  • Designed to work along the length of 10mm chain
  • Lightweight load cell easily attaches to the length of chain
  • No battery change required - Battery life 5 years based on 4hrs use per day
  • Environmentally protected to IP67/NEMA6
  • Conforms to EN1677:2008
  • Fatigue tested to 30,000 cycles to 1.5x WLL.
  • N.B. Fittings not included

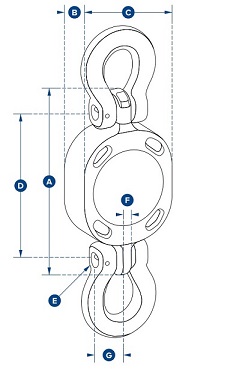

Dimensions

Dimensions Chart

ABCDEFG
164 mm
6.46 mm
85 mm
132 mm
13.2 mm
11 mm
28 mm
6.46 inches
1.38 inches
3.35 inches
5.20 inches
0.52 incheses
0.43 inches
1.10 inches

Crosby Fittings for use with the ChainSafe

Crosby Fittings for ChainSafe

Specifications

Capacity4te (8800lb)
Resolutions0.002te (4lbs) (tonne and pounds)
Safety Factor4:1
Battery TypeLithium Thionyl Chloride (non-replaceable)
Battery Life5 years based on 4hrs use per day
Operating Temp-10°C to +50°C or 14°F to 122°F
Accuracy±0.2% of full scale
System Range100 metres or 328 feet
Data Rate1Hz
ProtectionIP67 or NEMA6
Recommended Fitting10mm or 3/8” G100 Chain Fittings
BlueTooth AppHHP
