SW-1 Data Acquisition Software for Force Gauges & Torque Gauges

SW-1 Software for force and torque
Click images to enlarge.
SW-1: one channel model - collects force or torque data
SW-2: two channel model - collects both force and displacement data (use with test stands equipped with digital distance meters)

SW-1 is a highly customized Excel spreadsheet specifically designed for capturing and analyzing real-time data from force gauges with a RS-232 port or USB port.

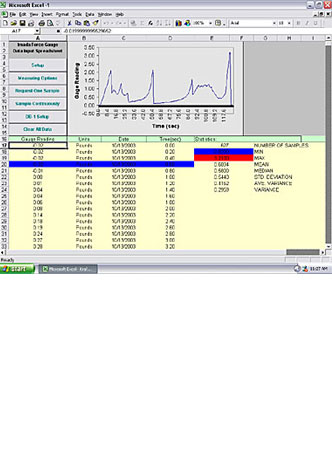

SW-1 allows real time data from instruments to be input directly into any Windows program – including Microsoft Excel. SW-1 inputs gauge readings in real time and provides a running log of all force measurements along with a chart of the data as well as statistical information including Min, Max, Mean, Median, Standard Deviation, Average Deviation and Variance.

Complete control of the gauge is provided through a set of “buttons” on the spreadsheet that enable easy editing of the sampling rate, force measurement units, peak/real time, tare and power off.

Other features include a memory download option for Z2, Z2-DPU and Z2H gauges only. If desired, the entire stack can be saved to disk, analyzed or cleared. Because all data is entered directly into a standard Excel spreadsheet, you are virtually unlimited in your ability to analyze your force gauge data using all of the powerful tools available in Excel.

Hardware Requirements: Force Gauge or Torque Tester with RS-232 or USB port, output cable, a Pentium or equivalent with 32MB RAM or better, a mouse and approximately 1 MB hard disk space.

Software Requirements: Windows 95, 98, ME, XP home or XP Pro, NT or 2000 and Excel ‘97, 2000, 2003 or XP

Screen Capture of 2 channel system, SW-2 plotting force vs distance

Related Products

Click image for more info
Data Input Button
- Send data to the PC spread sheet with the touch of a button
- Select different acquisition rates
- Zero the gauge

Features

  • Full SPC and graphing capabilities
  • Automates your data collection
  • Provides a running log of all measurements along with a chart of the data as well as statistical information

Buy Now

Item Description Price
Data Acquistion Software for DS2, DPSH (CD-ROM)
$199.00
SW-1S
Data Acquisition Software for DID Torque Screwdrivers
$199.00
SW-1X
Data Acquisition Software for Force / Torque Gauges
$199.00
SW-1SD-USB
Data Acquisition Software for Torque Testers
$199.00
SW-2
Software for DPS, DPSH w/distance meter
$199.00
SW-2X
Data Acquistion Software ZT, ZT-DPU, ZT-LM, ZPH, w/distance meter
$199.00
Accessories
CB-203
RS-232 Serial Output Cable
$75.00
CB-204
RS232 Serial Output Cable
$75.00
CB-207
RS232 Serial Output Cable for Torque Gauges
$75.00
SS-209
USB Output Cable for DID Torque Screwdriver
$25.00
