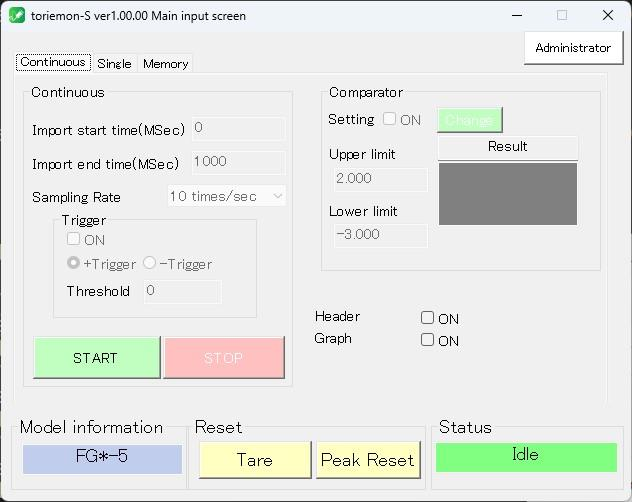

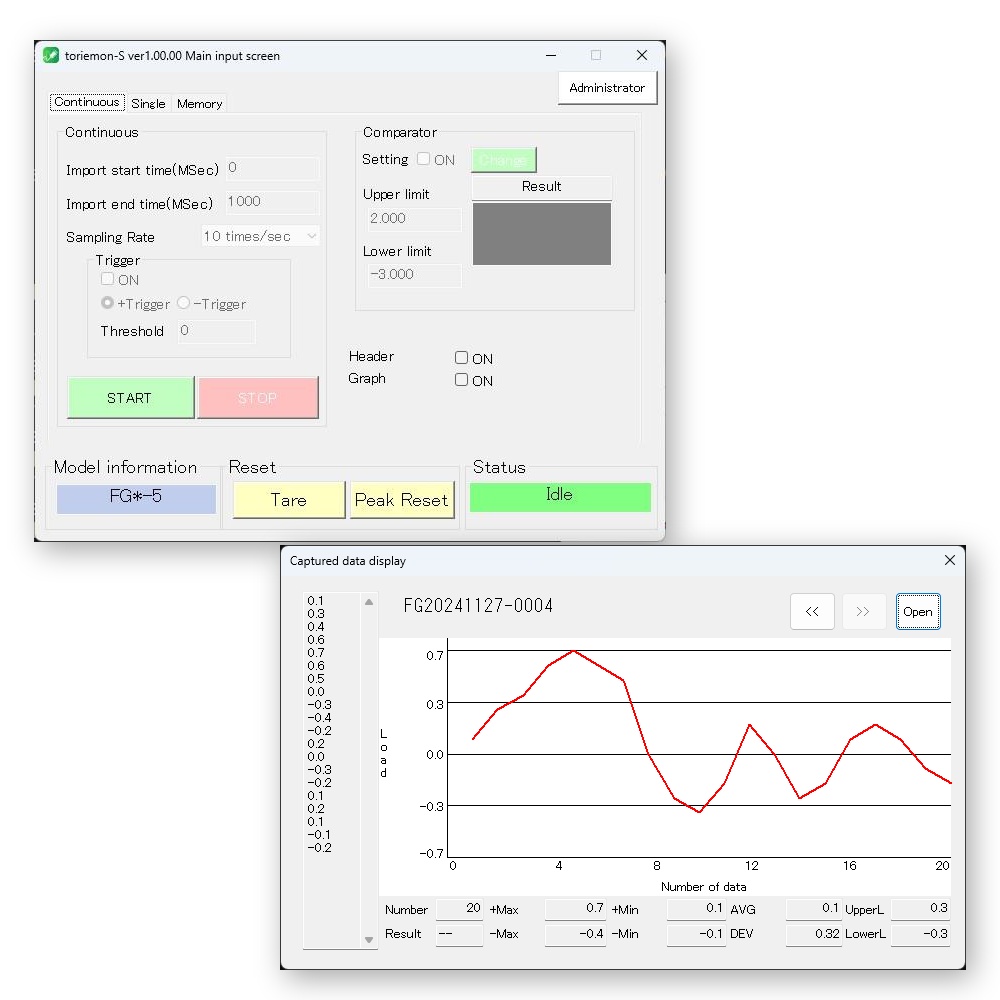

Three download modes cover a wide range of testing needs. Continuous mode streams real-time load data at up to 100 readings per second, with optional trigger, live graphing, and pass/fail comparator evaluation. Single mode captures the current or peak reading on demand. Memory mode downloads data stored in the gauge's internal memory and lets you start and stop memory-mode measurements remotely from the PC.
Upper and lower limit comparator values can be set from the software and are applied directly to the gauge, with clear OK / NG (or HIGH / LOW) results on screen. Every download is saved automatically as a CSV file, graphs are saved as bitmap images, and summary statistics are calculated for you. Password-protected administrator access allows settings to be locked to prevent unauthorized changes.
- Real-time continuous data download at 10, 20, 50 or 100 readings per second, up to 65,000 data points per test
- Single-reading mode for current or peak load capture, with automatic peak reset on download
- Memory mode download and remote start/stop of Single, Continuous and Standard memory measurements
- Adjustable start delay, end interval and load trigger for repeatable test timing

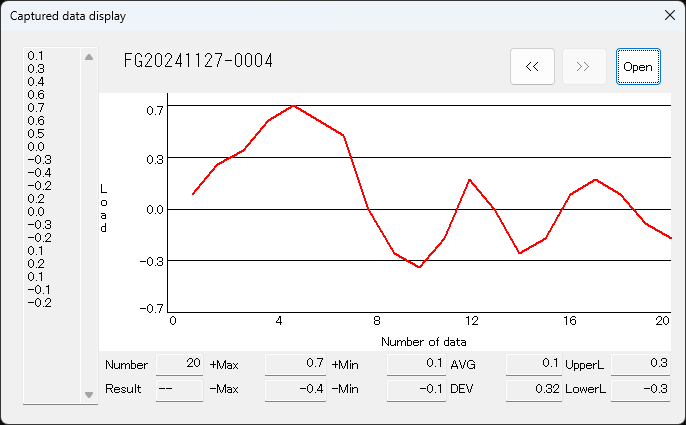

- Live graph plus automatic statistics: +Max, -Max, +Min, -Min, average and standard deviation
- Automatic CSV data files and bitmap graph files for records and reporting
| OS Required | Windows 10 or later |
| Connection | RS-232C serial (D-sub 9-pin); serial-to-USB adapter may be used |
| Download Modes | Continuous, Single, Memory |
| Item | Description | Price | ||
|---|---|---|---|---|
Windows based software for the FGV-XY & FGV-HXY Series Gauges (for Win 10, 11) | $425.00 | |||
| Accessories | ||||
USB-RS232-ADAP | RS232 to USB Adapter | $25.00 | ||
FGV-RS232 | RS232 9 Pin Serial output cable for FGV Digital Force Gauge | $125.00 | ||
