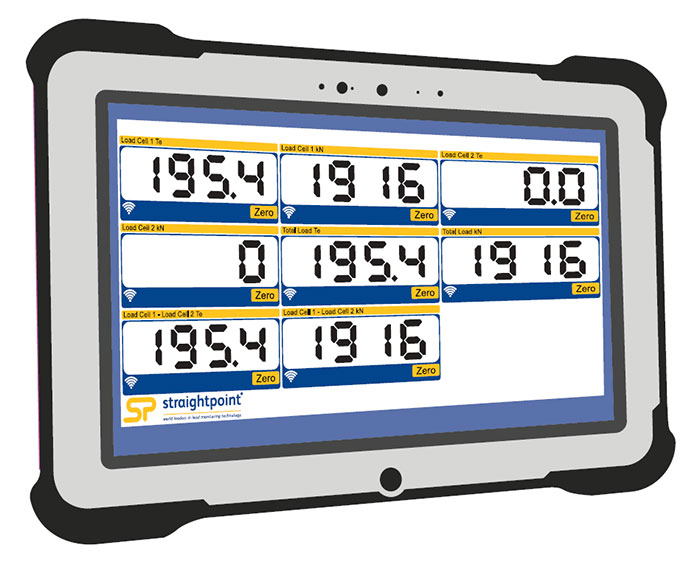

SW-RWT Latest Generation Fully Rugged Tablet for Load Cells

SW-RWT Latest Generation Fully Rugged Tablet for Load Cells
Click images to enlarge.

The SW-RWT tablet is the latest generation fully-rugged tablets. Featuring an array of integrated options, and a sleek, sophisticated design, the SW-RWT will change the way you look at tablets. With a MIL-STD-810G rating and Windows® 7 Pro, the SW-RWT can go from the boardroom to the work site without missing a beat.

Exceeding rugged standards

Refined by over a decade of real world customer feedback and experience in the rugged space, the SW-RWT is the most rugged tablet in its class. Boasting a 5 foot drop rating, the SW-RWT’s core construction features a lightweight magnesium alloy mid-frame in an ultra-portable form factor for the utmost rugged reliability. Featuring MIL-STD-810G and IP65, the SW-RWT is engineered to protect critical lift data under the most demanding conditions.

For In The Field Critical Lifts

Whether using the Straightpoint SW-MWLC multiple loadcell software or our ground breaking Centre of Gravity system the SW-RWT sets the standard for field mobility.
A full shift hot-swappable battery, lasting up to fourteen hours, maximizes time in the field and boosts productivity. The brilliant outdoor viewable, multi-touch display allows seamless transition from indoor to outdoor use. Supplied with carrying straps the SW-RWT is an ideal tablet for field applications running the Straightpoint suite of software solutions.

Features

  • Lightweight Platform for Ultra Mobility
  • Full Shift Battery Life - Up to 8 Hours hot swappable to 14 Hours
  • MIL-STD-810G Certified
  • IP65 Rated for Protection from Dust and Liquids
  • Brilliant Outdoor Viewable Multi-Touch Display
  • Full Microsoft. Windows. 7 Professional or Windows. 8.1 Professional
  • Expansive Standard I/O Features - RS-232 Ready, RJ45
  • 2 Full Size USB 3.0 Ports, and a MicroSD and SIM Slot

Specifications

Fully Rugged
  • MIL-STD-810G and IP65 Tested
  • Elastomer Bumpers (Protected Glass/Touch Screen)
  • Multiple 5’ Drops (Single Battery)
  • Magnesium Alloy Midframe
Processor/Graphics
  • Intel® Bay Trail E3845 Quad Core 1.91 GHz Processor
  • Intel® Integrated Mobile Gen7 Graphics
Display
  • 10.1” WXGA (1366 x 768) Rugged IPS LCD Backlit Display
  • 500 NITs Direct Bonded Screen
  • 178° Viewing Cone (89° Off-Axis)
  • Contrast Ratio: 800:1; Aspect Ratio: 16:9
  • Ambient Light Sensor (ALS)
  • 10-Finger Multi-Touch, Glove Touch
Memory
  • 4 GB DDR3L 1333
Operating Systems
  •  Windows 8.1® Professional, 64-Bit
  • Windows 7® Professional, 32-Bit, 64-Bit
Battery
  • Up to 8 Hour Battery Life (5300 mAhr, 39.22 Whr, Single Battery)
  • Up to 14 Hour Battery Life (4200 mAhr, 31.08 Whr, Dual Battery)
  • Hot Swappable External Battery
Power Supply
  • Input Voltage: 19V with AC Adapter
  • Supports 12~20V Input DC on Tablet
Storage Options
  • Standard 128 GB SSD
  • Up to 256 GB SSD
Integrated
Communications
  • Wireless LAN: 802.11 ac
  • Broadband: 4G LTE (Optional)
  • GPS: Integrated, 2.5m Accurate Satellite
  • Bluetooth: 4.0
  • LAN: 10/100/1000 Gigabit Ethernet (RJ-45)
Security
  • Kensington® Cable Lock Slot
  • Integrated Trusted Platform Module - TPM 1.2
  • CAC Reader Module (Optional)
Collaboration
  • Integrated Speaker and Microphone
  • Integrated Rear 5 Megapixel Camera with Flash
  • Integrated Front 720P HD Webcam
Ports
  • Micro SIM Card Reader
  • DC Power
  • RS232 Serial Ready Port
  • Headphones/Speaker Mini-Jack Stereo, Smart Phone
  • Headphone Compatible
  • DC Power
  • 2 x USB 3.0 Ports
  • Micro SDXC
  • Micro HDMI-out
Inputs and
Status Indicators
  • Status Indicators: Power, Charge/DC-in, Camera Active
  • Projected Capacitance Multi-Touch
Dimensions/
Weight
  • W11.05” (28.1 cm) x H7.07” (18.0 cm) x D0.86” (2.2 cm)
  • Starting at 2.4 lbs (1.09 kg)
Environmental
Specifications
  • Tested to MIL-STD-810G Standards
  • Operating Temperature: -20 °C to 60 °C / -4 °F to 140°F
  • Storage Temperature: -30 °C to 70 °C / -22 °F to 158 °F
  • Humidity: 95% Non-Condensing
  • Water Proofness: Dripping Rain, 1m, 15 Minutes
  • Blowing Rain: 4”/Hour (101.6 mm/Hour), 40 mph Wind, 30 Minutes Per Side
  • Blowing Sand and Dust: 30 MPH Wind, 30 Minutes
  • Vibration: Minimum Integrity, Vehicle Vibration, U.S. Highway Truck Vibration
  • Altitude: 40,000 Ft (12,192 M) Operating
  • Other Tests: Functional (20G Operating, 40G Non-Operating), Explosive Atmosphere
  • Transit Drop – Operating: 5’ (1.52 M) Drop Direct to Plywood over Concrete while System is Operating, 26 Drops, 4’ (1.21M) Drop Direct to Plywood over Concrete while System is Operating, with any Installed Accessory
Iec Ingress Testing
  • IEC (60529) Ingress Tested to an IP65 Standardy
Emissions and
Immunity
  • Immunity: CISPR 24, EN55024 (U.S., CAN, EU)
  • Emissions: EN55022, CISPR 22, CFR47 Part 15, Subpart B, ICES-003 for Class B (U.S., CAN, EU), CEC, Regulatory Bulletin No. 110915.02B (BCS), ERP Directive
  • Safety: CB Scheme, IEC 60950 (U.S., CAN, EU), UL 60079-0 and UL 60079-11 Class 1 Zone 2, A, B, C, D; T5 (U.S., CAN), ATEX
Environment
  • ROHS, Recycling Program: www.xploretech.com/environment/recycle
Warranty
  • Extended Warranty and xDefend Programs Available
  • Standard 3 Year Limited Warranty
Peripherals and
Docking
  • xDock G2 IP55 Waterproof and Dust-Resistant Dock
  • Industrial Desktop Dock
