The STA has been discontinued and is replaced by the TT02. Click here to visit the TT02 page.

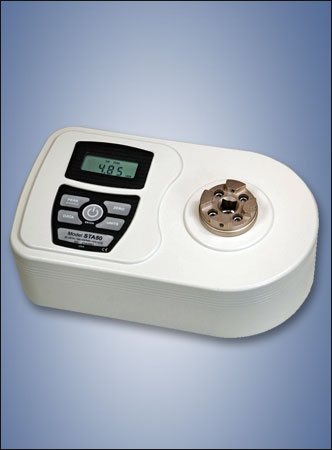

STA Torque Tool Testers present a simple yet accurate solution for testing hand operated torque screwdrivers, wrenches, and other tools. Applications exist in manufacturing facilities in virtually every industry. The STA features a solid aluminum housing, making it rugged enough for many years of service in production or laboratory use, while a universal receptacle with square drive and grooves accepts common bits and attachments. The STA captures peak torque in both clockwise and counterclockwise directions.
Note: The STA cannot be used with power, impact or air tools - Selectable units of measurement
- Peak memory for clockwise and counterclockwise readings
- Solid aluminum housing
- Battery or AC operation (AC Adapter included)
- Mounting holes for bench mounting
- CE Certified
- Includes NIST-Traceable Calibration Certificate
- MESUR™ Lite data acquisition software is included (Requires optional Serial Cable)
| Model | Capacity | Resolution |
|---|---|---|
| STA-12 | 12 lb-in 140 kg-mm 135 N-cm | 0.01 lb-in 0.1 kg-mm 0.1 N-cm |
| STA-50 | 50 lb-in 580 kg-mm 570 N-cm | 0.05 lb-in 0.5 kg-mm 0.5 N-cm |
| STA-100 | 100 lb-in 1150 kg-mm 1150 N-cm | 0.1 lb-in 1 kg-mm 1 N-cm |
| Accuracy | ± 0.5% of full scale, ±1 least significant digit |
| Max Sample Diameter | 7.5" (189.4 mm) |
| Sampling Rate | 65 readings per second |
| Display | 4 1/2 digit LCD with .3" high characters. Indicators for low battery, units and mode of operation |
| Power | Non-rechargeable 9V battery or AC operation with included adapter |
| Battery Life | 30 hours of continuous use, LO BAT indicator |
| Overload Protection | 150% or higher |
| Weight | 4.8 lbs (2.2 kg) |
| Warranty | 3 years |
| Calibration Certificate | Included |
