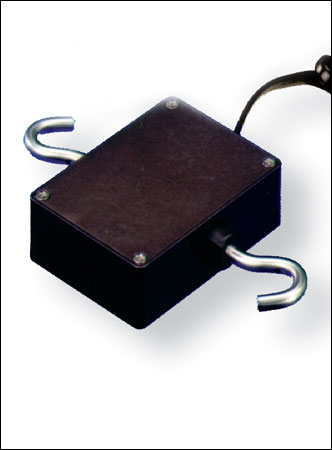

SSM2 SSM2 Force Sensor

Click images to enlarge.
The SSM has been replaced by the R03. Please click here to view the new model

Force measurement sensor for tensile and compressive loads in a wide variety of applications, available in capacities from 0.25 lb to 100 lb. Thread on two sides can accept a variety of hooks and implements, making this sensor particularly well suited for inline tests.

DESIGNED TO WORK WITH BGI REMOTE SENSOR FORCE GAUGE

Features

  • Member of the BGI family of interchangeable sensors
  • Rugged aluminum housing
  • NIST-traceable certificate of calibration included
  • "Personality module" holds all calibration and configuration data
  • Measures tensile and compressive forces

Force Ranges

ModelCapacityResolution
SSM0250.25 lb
100 gF
1 N
0.0001 lb
0.05 gF
0.0005 N
SSM050.5 lb
250 gF
2.5 N
0.0002 lb
0.1 gF
0.001 N
SSM22 lb
1 kgF
10 N
0.001 lb
0.0005 kgF
0.005 N
SSM55 lb
2.5 kgF
25 N
0.002 lb
0.001 kgF
0.01 N
SSM1010 lb
5 kgF
50 N
0.005 lb
0.002 kgF
0.02 N
SSM2020 lb
10 kgF
100 N
0.01 lb
0.005 kgF
0.05 N
SSM5050 lb
25 kgF
250 N
0.02 lb
0.01 kgF
0.1 N
SSM100100 lb
50 kgF
500 N
0.05 lb
0.02 kgF
0.2 N

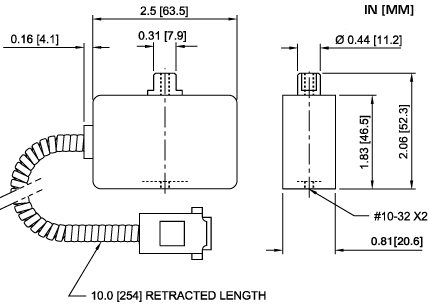

Dimensions

Related Products

Click image for more info
BGI
Remote Sensor Force / Torque Gauge
- Fully interchangeable force and torque BGI force/torque sensors with "personality" modules
- Unlimited number of sensors possible due to unique design
- RS-232, Mitutoyo and analog outputs

Specifications

Accuracy:Accuracy: ± 0.15% of full scale ±1 digit + BGI
Weight:0.4 lbs (0.2 kg)
Warranty:3 years

Downloads

Buy Now

Item Description Price
SSM2
SSM2 Force Sensor
$640.00
