Positector SPG Surface Profile Gauge

Made in USA-Defelsko
Positector SPG
Click images to enlarge.
Positector SPG Surface Profile Gages use a digital depth micrometer fitted with a fine pointed probe to measure and record peak-to-valley surface profile eights in preparation for the application of coatings.

5 Models Available:

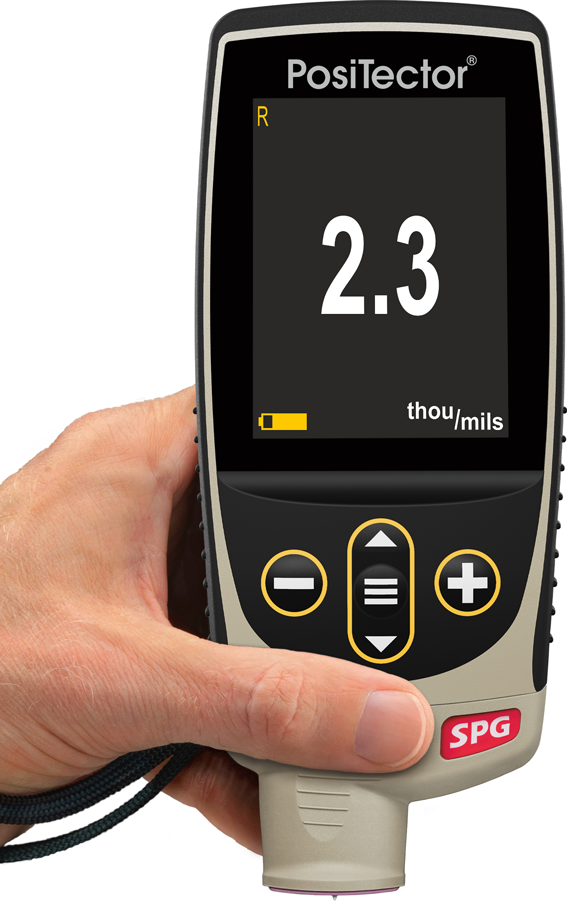

SPG: Integrated Probe, 500 micron / 20 mil range, 60° angle

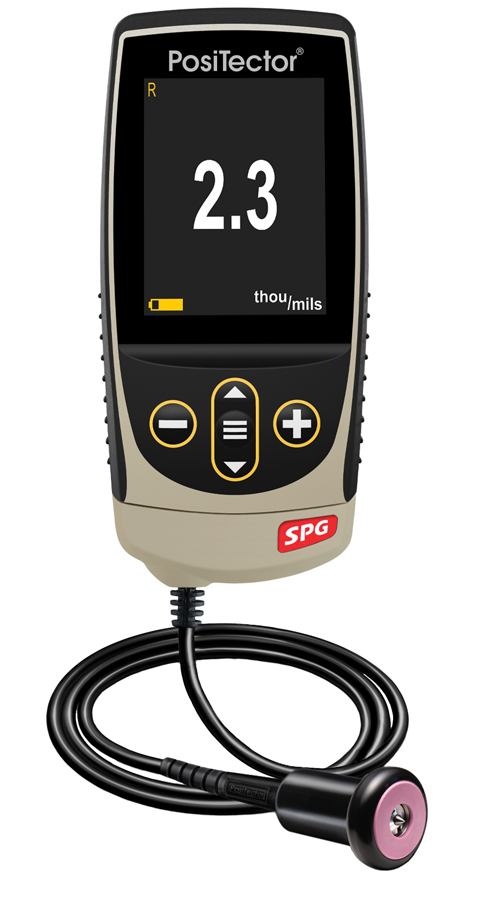

SPG-S: Cabled Probe, 500 micron / 20 mil range, 60° angle

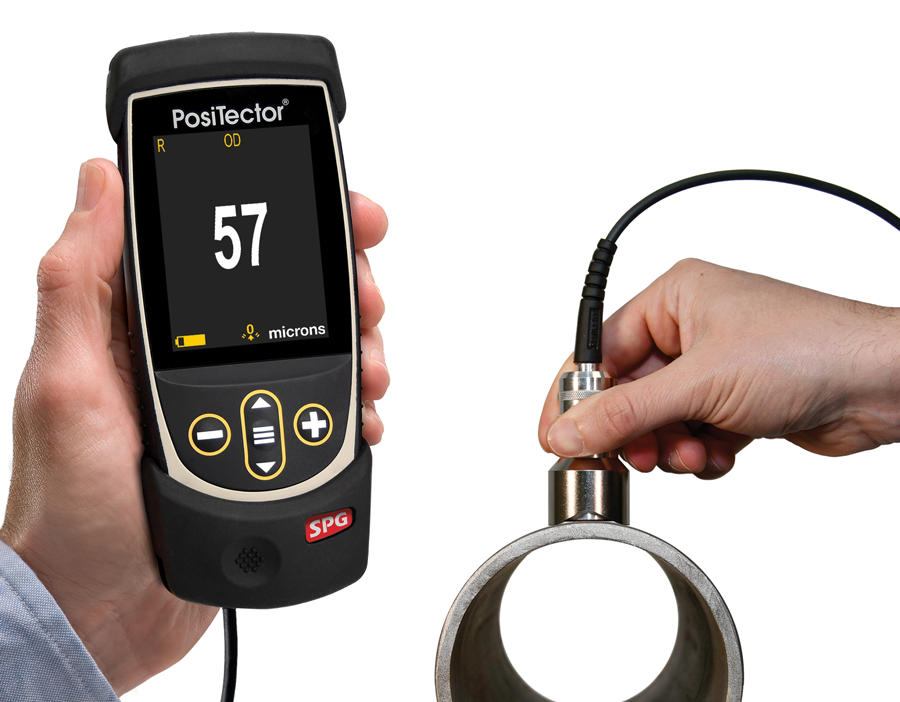

SPG-OS: Cabled Probe, for Convex Surfaces, 500 micron / 20 mil range, 60° angle
SPG-CS: Cabled Probe, for Textured Coatings, 1500 micron / 60 mil range, 60° angle
SPG-TS: Cabled Probe, for Concrete, 6 mm / 250 mill range, 60° angle

Conforms to ASTMD4417-B, ASTM D8271 (SPG TS only), AS 3894.5-C (with optional 30° tip), U.S.Navy NSI 009-32, Navy NAVSEA 009-32, US Navy NAVSEA PPI 63101-000, SSPC PA 17, SANS 5772, and others. Conforms to ASTM D4417-B, AS 3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others.

Features

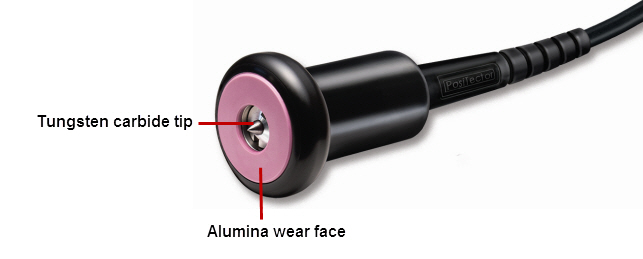

  • Alumina wear face and tungsten carbide tip for long life and continuous accuracy—field replaceable tips
  • Certificate of Calibration showing traceability to PTB included
  • Built-in temperature compensation ensures measurement accuracy
  • Glass Zero Plate and metal check shim included
  • Weatherproof, dustproof, and water-resistant—IP65-rated enclosure

Probe Options

Probe Order Code SPG SPG S SPG OS SPG CS SPG TS
Application Blasted Steel Blasted Steel Convex Surfaces Textured Coatings Concrete Surface Profile
Measuring Range 0 - 500 µm
0 - 20 mils
0 - 500 µm
0 - 20 mils
0 - 500 µm
0 - 20 mils
0 - 1500 µm
0 - 60 mils
0 – 6 mm
0 – 250 mils
Accuracy ± (5 µm + 5%)
± (0.2 mil + 5%)
± (5 µm + 5%)
± (0.2 mil + 5%)
± (5 µm + 5%)
± (0.2 mil + 5%)
± (5 µm + 5%)
± (0.2 mil + 5%)
± (25 μm + 1%)
± (1 mil + 1%)
Tip Angle 60 degree* 60 degree* 60 degree* 60 degree 60 degree
Radius 50 µm
(2 mils)
50 µm
(2 mils)
50 µm
(2 mils)
500 µm
(20 mils)
500 µm
(20 mils)

* 30 degree tips available for conforming to Australian standard AS 3994.5-C

All probes feature durable Alumina wear face and tungsten carbide tip for long life and continued accuracy.

Display Options (Standard vs Advanced)

Standard Models
  • Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

Advanced Models

  • Storage of 250,000 readings in up to 1,000 batches and sub-batches
  • SmartBatch™ allows entry of user-defined parameters and criteria to for quick statistical analysis comply with standards such as ASTM D4417 and SSPC PA-17
  • Live graphing of measurement data
  • NEW Touchscreen keyboard for quickly renaming batches, adding notes, and. more
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

Related Products

Positector 6000 Probes
Click image for more info
Probes For Use With Positector® 6000 Series Coating Thickness Gauge
smartlink wireless transmitter
Click image for more info
Wirelessly connect PosiTector® probes to smart devices.
PT-DPM Environmental Meter and Dew Point Meter
Click image for more info
Positector® Environment Meter / Dew Point Meter

Complete Kit

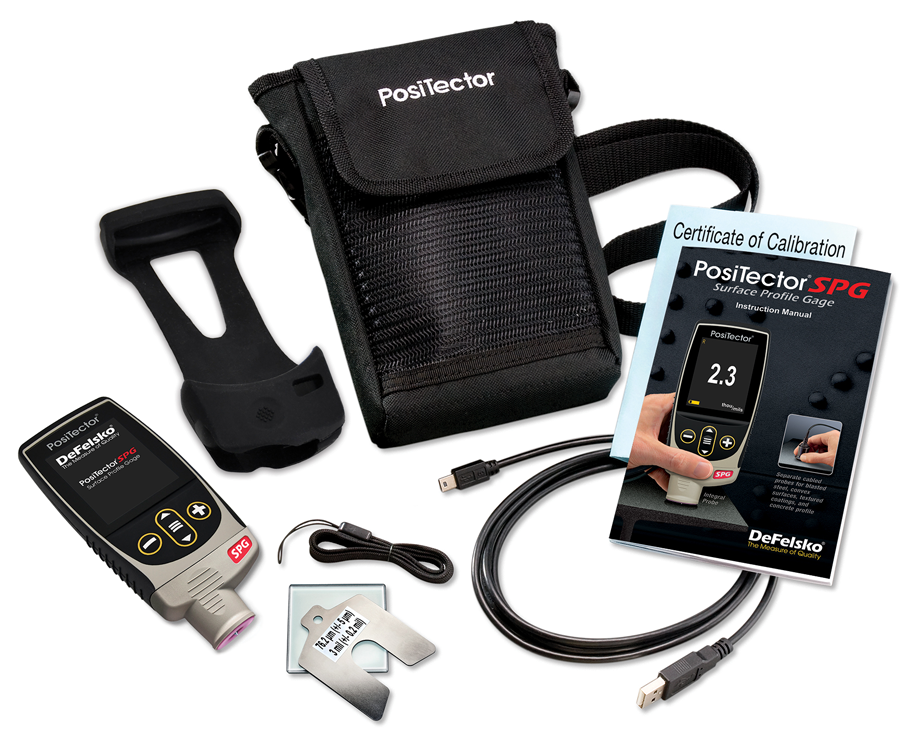

ALL GAGES COME COMPLETE with glass zero plate, metal check shim, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to PTB, USB cable, two (2) year warranty.

Specifications

Dimensions137 x 61 x 28 mm (5.4" x 2.4" x 1.1")
Weight140 g (4.9 oz.) without batteries
Conforms toASTM D4417-B, AS 3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others

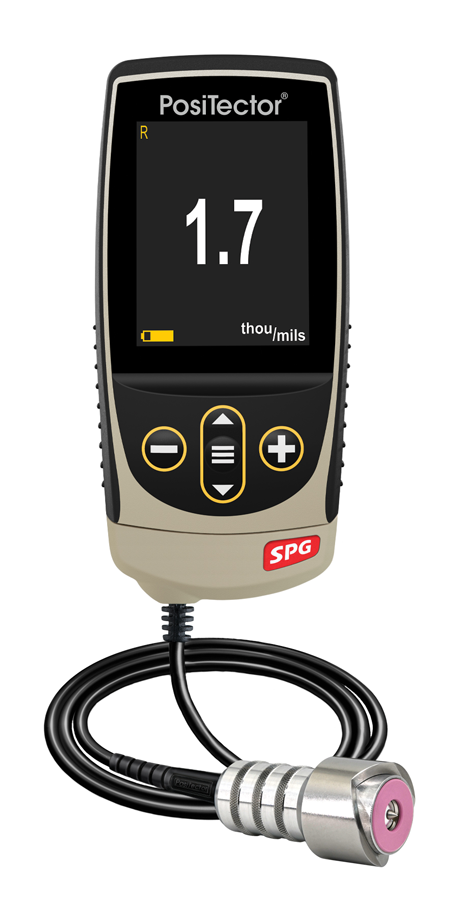

SPG OS ProbeFor flat or convex surfaces with an OD above 3mm (0.125”)

Downloads

Buy Now

Item Description Price
Surface Profile Gauge with Built-In Probe, Standard Kit
$685.00
Surface Profile Gauge with Built-in Probe, Advanced Kit
$1,105.00
Surface Profile Gauge, Separate Probe, Standard Kit
$820.00
Surface Profile Gauge, Separate Probe, Advanced Kit
$1,240.00
Surface Profile Gauge, Separate C Probe, Standard Kit
$820.00
Surface Profile Gauge, Separate C Probe, Advanced Kit
$1,240.00
Surface Profile Gauge, Separate TS Probe, Standard Kit
$920.00
Surface Profile Gauge, Separate TS Probe, Advanced Kit
$1,340.00
Surface Profile Gauge, Separate OS Probe, Standard Kit
$1,025.00
Surface Profile Gauge, Separate OS Probe, Standard Kit
$1,445.00
Accessories
PROBE-SPG
PosiTector® Built-in Surface Profile Probe with 60 Degree Tip 0 - 500 µm (0 -20 mils) - PRBSPG
$385.00
PROBE-SPG30
PosiTector® Built-in Surface Profile Probe with 30 Degree Tip 0 - 500 µm (0 -20 mils)
$385.00
PROBE-SPGS
PosiTector® Cabled Surface Profile Probe with 60 Degree Tip 0 - 500 µm (0 -20 mils) - PRBSPGS
$520.00
PROBE-SPG30S
PosiTector® Cabled Surface Profile Probe with 30 Degree Tip 0 - 500 µm (0 -20 mils)
$520.00
PROBE-SPGCS
PosiTector® Cabled Surface Profile Probe with 60 Degree Tip 0 - 1500 µm (0 -60 mils) - PRBSPGCS
$520.00
PROBE-SPGTS
PosiTector® Cabled Surface Profile Probe with 60 Degree Tip 0 - 6 mm (0 - 250 mils)
$620.00
PROBE-SPGOS
PosiTector® Cabled Surface Profile Probe for 3mm+ flat of convex services, 0 - 500 µm (0 - 20 mils)
$725.00
SPG60KIT
Replacement 60 Degree Tip
$55.00
SPGCSKIT
Replacement 60 Degree C Tip
$100.00
SPG30KIT
Replacement 30 Degree Tip
$100.00
SPGTSKIT
Replacement Tip for TS Probe
$125.00
SPGZEROKIT
Glass Plate and Shim
$15.00
STDSPG
Certified SPG Standards
$995.00
