LS-6000 Linear Stroboscope

Made in USA
Click images to enlarge.
As of January 2012 the LS-6000 strobe has been discontinued. It is replaced by the LS-9-12000, click for more info

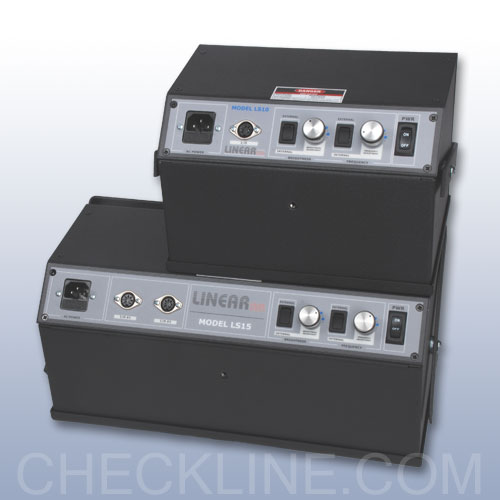

The new CHECK-LINE Series LS Linear Stroboscope is offered in a 10 and 15 inch width. They are designed to provide an extremely bright, uniform light source that is typically required to perform visual inspection of narrow and wide web-type products such as; labels, printed material, textile fabrics, metals, non-wovens and more. Two or more units can be combined for continuous inspection of wider webs.

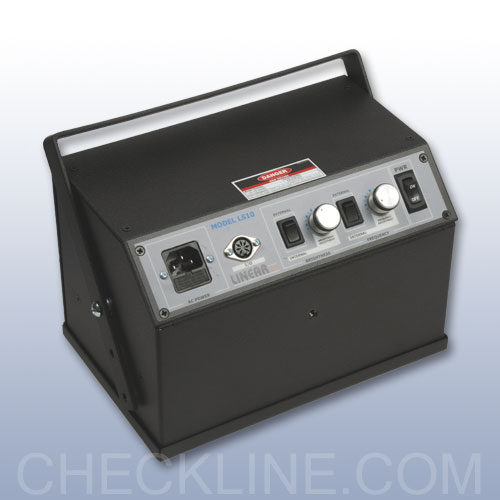

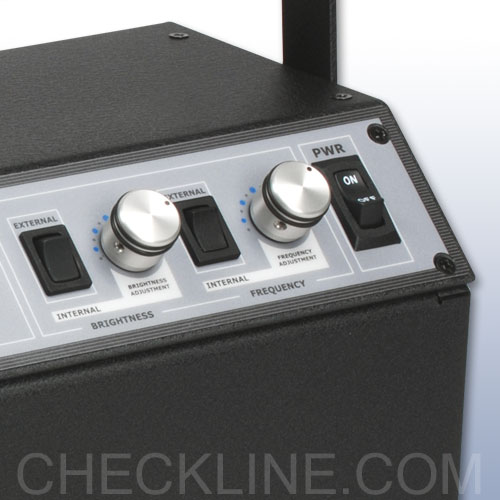

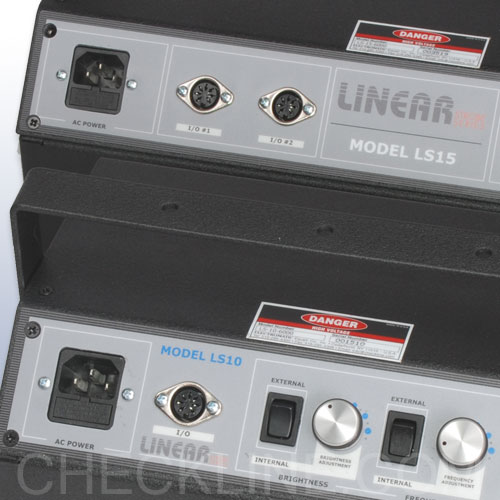

Flash frequency can be automatically synchronized to varying web speeds using an external sensor or user-controlled using a precision adjustment knob located on the rear control panel.Flash intensity (brightness) can also be manually adjusted via an adjustment knob or controlled externally using a 0-6 Vdc input.

Features

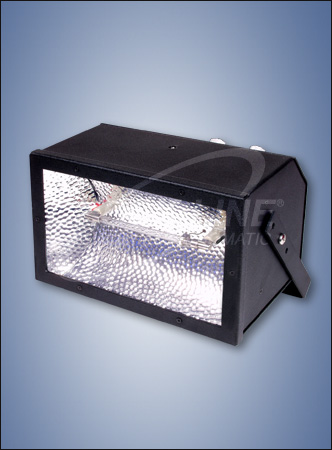

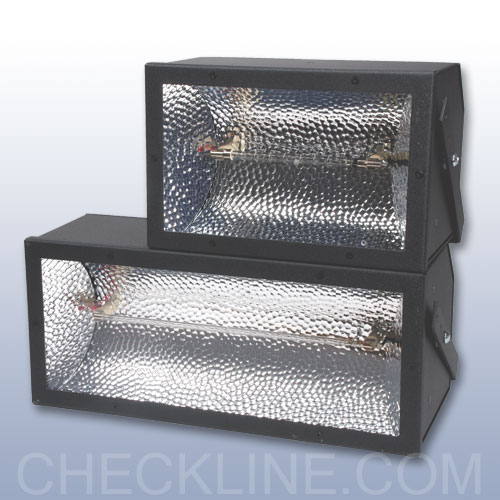

  • Super-bright Xenon Tube and highly-polished hammertone reflector combines to generate industry-leading light intensity and uniformity

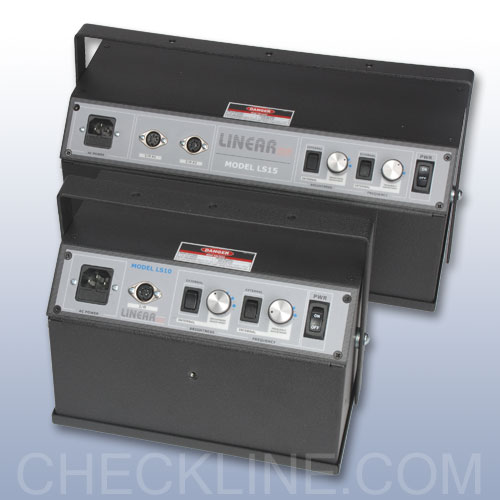

  • Models are offered in 10 inch (250 mm) and 15 inch (380 mm) widths
  • Internal and External control of flash rate and flash intensity (brightness)
  • Steel enclosure is specifically-designed to efficiently dissipate heat eliminating the need for bulky heat sinks
  • 2 or more LS models can be connected to each other for wider web coverage

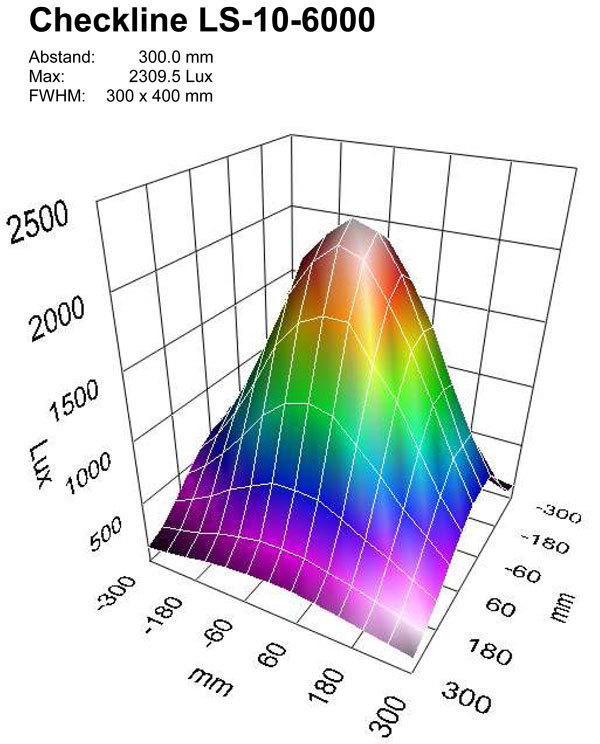

Light Output (LUX) vs Distance

light output
at 30 cm Distance, 6000 flashes/min (FPM)

Related Products

Label Sensor for Triggering On Label Gaps - LS-GAPSENSOR
Click image for more info
Label Sensor for Triggering On Label Gaps
- Only label sensor on the market that is immune to the interference caused by a strobe.
registration mark sensor
Click image for more info
Registration Mark Sensor
- Color Mark registration detection on transparent and translucent, including many metalized films and paper

Specifications

Energy Output.72 joules
Flash Duration10us
Flash RangeInternal Control:400-6000 FPM
External Control: unlimited
Flash Frequency AdjustmentINTERNAL, using 10-turn potentiometer
EXTERNAL, using external trigger sensor
Flash Brightness LevelINTERNAL, using potentiometer (50-100%)
EXTERNAL, 10:1 using voltage input (1.5-6 Vdc)
Illumination180 ft-c (1960 Lux), measured at 2400 fpm
Coverage, Maximum Web WidthLS-10-6000: 24 inches (600 mm)
LS-15-6000: 36 inches (900 mm)
Trigger SupplyRegulated 12VDC @100mA
External Trigger Input Signal+5V at 20mA NPN
Frequency AdjustmentVariable Control
External Sensor Typesmagnetic pickups, contact closures or open collectors (NPN)
DisplayNone
Operating Temp Range-10 to 110° F (-23 to 43° C)
Operating Humidity Range0 to 90% noncondensing
Body MaterialFabricated Metal Enclosure
WeightLS-10-6000: 4.2 lbs (1.9 Kg)
LS-15-6000: 5.6 lbs (2.6 Kg)
DimensionsLS-10-6000: 10"L x 5.4"W x 6.4"H
(without mounting bracket)
LS-15-6000: 15"L x 5.4"W x 6.4"H
(without mounting bracket)
Power Requirement115/230 VAC 50/60Hz (Specify prior to order)
Power Consumption0.5A Maximum
Flash Tube Life100 million flashes (While maintaining 70% of initial intensity)
Accessories AvailableLabel Sensor, Extra Tube, Cables
Customization OptionsElectronics, Lamp, UV, Kelvin Correction, Color Correction, etc.
Warranty1 year

Downloads

Buy Now

Item Description Price
LS-10-6000
Discontinued Model replaced by LS-9-12000
$0.00
LS-15-6000
Discontinued Model replaced by LS-9-12000
$0.00
LS-10-6000-2
Discontinued Model replaced by LS-9-12000
$0.00
LS-15-6000-2
Discontinued Model replaced by LS-9-12000
$0.00
Accessories
LS-10-TBE
LS-10-6000 Flash Tube
$110.00
LS-15-TBE
LS-15-6000 Flash Tube
$145.00
LS-CORD-110
Power Cord 110 VAC
$10.00
LS-CORD-220
Power Cord 220 VAC
$10.00
LS-CABLE-DAISY
Daisy Chain Cable
$30.00
LS-DIN-MALE
Male Din Connector Attachment
$8.00
Sensor for Triggering Stroboscopes On Label Gaps
$150.00
Sensor for Triggering Stroboscopes On Registration Marks
$210.00
