Thickness gauges are used for measuring the thickness of leather, textile, cardboard, felt, rubber, sheet metal, foils, plywood, plastic parts of all kind, etc.

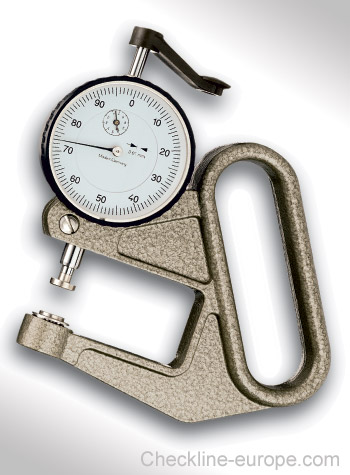

The J-50 model is available with 5 different feelers, which can be found below. Measurement by manual pressure by plunger.
- Metric or Inch Dials Available
- Resolution 0.01 mm or 0.001 inch
- Measurement by manual pressure by plunger
- Opening by spring force - self opening
- NIST-Traceable Calibration Certificate is optional
| To order, please indicate the desired feeler, e.g. J-50-B for gauge with feeler >b<. This means that NOT all feelers are included in the package! | |
 |
Feeler: A
For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge |
| Feeler: B For rubber, felt*, soft materials*, non wovens*, etc.
*Meets no DIN EN ISO standard
|
|
| Feeler: C
For soft leather, cardboard, paper, foils, etc.
|
|
| Feeler: D
For hard leather, plywood, fiberboard, etc.
|
|
| Feeler: E
For sheet metal, etc.
|
|
| Resolution: | 0.01 mm |
| Measuring range: | 10 mm |
| Depth of jaw: | 50 mm |
| Scale diameter: | 58 mm |
| Feeler shape: | a,b,c,d or e |
| Spring force: | Self opening |
| Weight, net: | 300 g |
| Item | Description | Price | ||
|---|---|---|---|---|
J-50-E | Dial Thickness Gauge, 10m Range, 50mm Jaw Depth, feeler E (5mm dia, curved) | $295.00 | ||
| Accessories | ||||
NISTCAL | NIST Traceable Calibration Certificate | $100.00 | ||
J-50-100-TS | Table Stand for for J-50 and J-100 Thickness Gauges | $130.00 | ||
