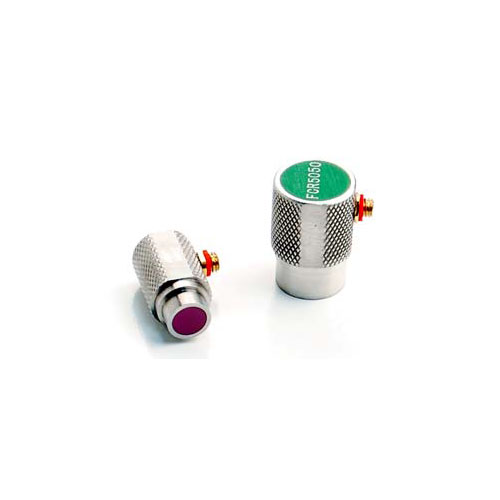

FC-FT Finger Tip Single Element Contact Transducer

Click images to enlarge.
General contact style transducers with stainless steel construction. Good for near surface resolution with a 70% bandwidth.

Used for common metals and plastics.

Models

Use the options below to filter the table to find the transducer you need. Clicking on the model will highlight the item in the Buy Now.

Reset
Model Element Size Frequency Damping Composite Connector Connector Entry
PFC251 0.250" ⌀ 1.0 Mhz None Yes Microdot Side
PFC251T 0.250" ⌀ 1.0 Mhz None Yes Microdot Top
T-4043-0865 0.500" ⌀ 1.0 Mhz None Yes Microdot Side
PFC501T 0.500" ⌀ 1.0 Mhz None Yes Microdot Top
T-4063-0865 0.750" ⌀ 1.0 Mhz None Yes Microdot Side
PFC751T 0.750" ⌀ 1.0 Mhz None Yes Microdot Top
T-4023-1845 0.250" ⌀ 2.25 Mhz High Gain No Microdot Side
FCG2525T 0.250" ⌀ 2.25 Mhz High Gain No Microdot Top
T-4023-1855 0.250" ⌀ 2.25 Mhz Resolution No Microdot Side
FCR2525T 0.250" ⌀ 2.25 Mhz Resolution No Microdot Top
T-4033-1845 0.375" ⌀ 2.25 Mhz High Gain No Microdot Side
FCG3725T 0.375" ⌀ 2.25 Mhz High Gain No Microdot Top
T-4033-1855 0.375" ⌀ 2.25 Mhz Resolution No Microdot Side
FCR3725T 0.375" ⌀ 2.25 Mhz Resolution No Microdot Top
T-4043-1845 0.500" ⌀ 2.25 Mhz High Gain No Microdot Side
FCG5025T 0.500" ⌀ 2.25 Mhz High Gain No Microdot Top
T-4043-1855 0.500" ⌀ 2.25 Mhz Resolution No Microdot Side
FCR5025T 0.500" ⌀ 2.25 Mhz Resolution No Microdot Top
T-4063-1845 0.750" ⌀ 2.25 Mhz High Gain No Microdot Side
FCG7525T 0.750" ⌀ 2.25 Mhz High Gain No Microdot Top
T-4063-1855 0.750" ⌀ 2.25 Mhz Resolution No Microdot Side
FCR7525T 0.750" ⌀ 2.25 Mhz Resolution No Microdot Top
PFC2525 0.250" ⌀ 2.25 Mhz None Yes Microdot Side
PFC2525T 0.250" ⌀ 2.25 Mhz None Yes Microdot Top
PFC3725 0.375" ⌀ 2.25 Mhz None Yes Microdot Side
PFC3725T 0.375" ⌀ 2.25 Mhz None Yes Microdot Top
PFC5025 0.500" ⌀ 2.25 Mhz None Yes Microdot Side
PFC5025T 0.500" ⌀ 2.25 Mhz None Yes Microdot Top
PFC7525 0.750" ⌀ 2.25 Mhz None Yes Microdot Side
PFC7525T 0.750" ⌀ 2.25 Mhz None Yes Microdot Top
T-4023-9865 0.250" ⌀ 3.5 Mhz None Yes Microdot Side
PFC2535T 0.250" ⌀ 3.5 Mhz None Yes Microdot Top
T-4033-9865 0.375" ⌀ 3.5 Mhz None Yes Microdot Side
PFC3735T 0.375" ⌀ 3.5 Mhz None Yes Microdot Top
T-4043-9865 0.500" ⌀ 3.5 Mhz None Yes Microdot Side
PFC5035T 0.500" ⌀ 3.5 Mhz None Yes Microdot Top
T-4063-9865 0.750" ⌀ 3.5 Mhz None Yes Microdot Side
PFC7535T 0.750" ⌀ 3.5 Mhz None Yes Microdot Top
T-4023-2845 0.250" ⌀ 5.0 Mhz High Gain No Microdot Side
FCG2550T 0.250" ⌀ 5.0 Mhz High Gain No Microdot Top
T-4023-2855 0.250" ⌀ 5.0 Mhz Resolution No Microdot Side
FCR2550T 0.250" ⌀ 5.0 Mhz Resolution No Microdot Top
T-4033-2845 0.375" ⌀ 5.0 Mhz High Gain No Microdot Side
FCG3750T 0.375" ⌀ 5.0 Mhz High Gain No Microdot Top
T-4033-2855 0.375" ⌀ 5.0 Mhz Resolution No Microdot Side
FCR3750T 0.375" ⌀ 5.0 Mhz Resolution No Microdot Top
T-4043-2845 0.500" ⌀ 5.0 Mhz High Gain No Microdot Side
FCG5050T 0.500" ⌀ 5.0 Mhz High Gain No Microdot Top
T-4043-1855 0.500" ⌀ 5.0 Mhz Resolution No Microdot Side
FCR5050T 0.500" ⌀ 5.0 Mhz Resolution No Microdot Top
T-4063-2845 0.750" ⌀ 5.0 Mhz High Gain No Microdot Side
FCG7550T 0.750" ⌀ 5.0 Mhz High Gain No Microdot Top
T-4063-2855 0.750" ⌀ 5.0 Mhz Resolution No Microdot Side
FCR7550T 0.750" ⌀ 5.0 Mhz Resolution No Microdot Top
PFC2550 0.250" ⌀ 5.0 Mhz None Yes Microdot Side
PFC2550T 0.250" ⌀ 5.0 Mhz None Yes Microdot Top
PFC3750 0.375" ⌀ 5.0 Mhz None Yes Microdot Side
PFC3750T 0.375" ⌀ 5.0 Mhz None Yes Microdot Top
PFC5050 0.500" ⌀ 5.0 Mhz None Yes Microdot Side
PFC5050T 0.500" ⌀ 5.0 Mhz None Yes Microdot Top
PFC7550 0.750" ⌀ 5.0 Mhz None Yes Microdot Side
PFC7550T 0.750" ⌀ 5.0 Mhz None Yes Microdot Top
T-4023-4845 0.250" ⌀ 10.0 Mhz High Gain No Microdot Side
FCG2510T 0.250" ⌀ 10.0 Mhz High Gain No Microdot Top
T-4023-4855 0.250" ⌀ 10.0 Mhz Resolution No Microdot Side
FCR2510T 0.250" ⌀ 10.0 Mhz Resolution No Microdot Top
T-4033-4845 0.375" ⌀ 10.0 Mhz High Gain No Microdot Side
FCG3710T 0.375" ⌀ 10.0 Mhz High Gain No Microdot Top
T-4033-4855 0.375" ⌀ 10.0 Mhz Resolution No Microdot Side
FCR3710T 0.375" ⌀ 10.0 Mhz Resolution No Microdot Top
T-4043-4845 0.500" ⌀ 10.0 Mhz High Gain No Microdot Side
FCG5010T 0.500" ⌀ 10.0 Mhz High Gain No Microdot Top
T-4043-4855 0.500" ⌀ 10.0 Mhz Resolution No Microdot Side
FCR5010T 0.500" ⌀ 10.0 Mhz Resolution No Microdot Top
PFC2550 0.250" ⌀ 10.0 Mhz None Yes Microdot Side
PFC2550T 0.250" ⌀ 10.0 Mhz None Yes Microdot Top
PFC3750 0.375" ⌀ 10.0 Mhz None Yes Microdot Side
PFC3750T 0.375" ⌀ 10.0 Mhz None Yes Microdot Top
PFC5050 0.500" ⌀ 10.0 Mhz None Yes Microdot Side
PFC5050T 0.500" ⌀ 10.0 Mhz None Yes Microdot Top
