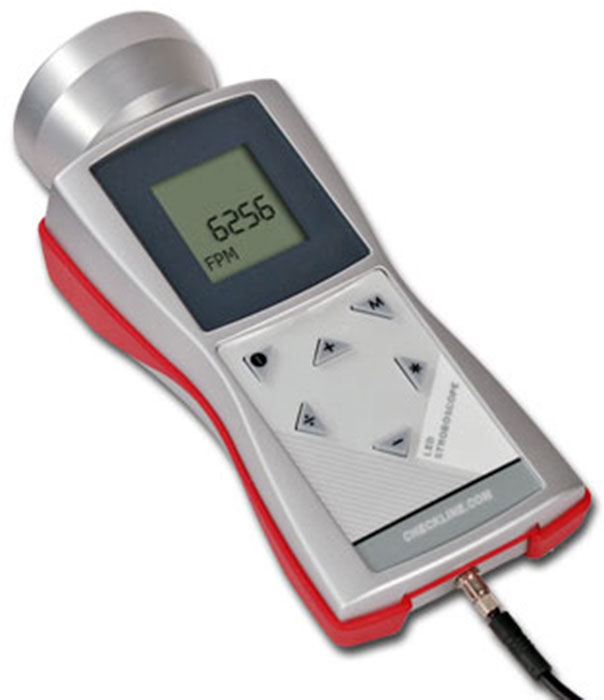

DS-2000LED-OT LED Stroboscope with external trigger input/output

Made in Germany
LED Stroboscope with output
Click images to enlarge.
Flash Range: 30 - 300,000 FPM (5000Hz, max)
Flash Brightness: up to 3000 Lux (@ 6000 FPM)

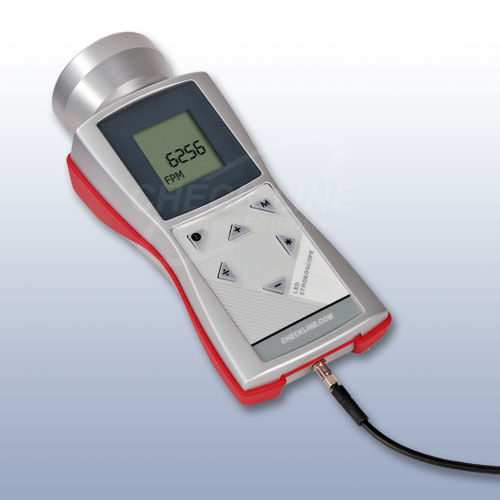

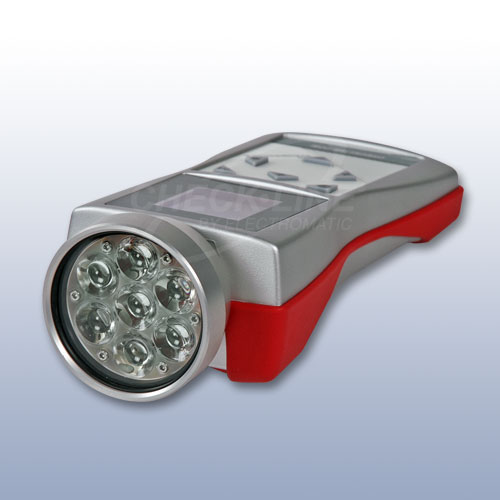

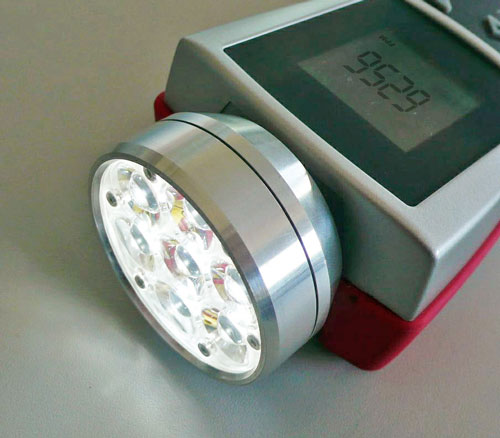

Designed for maximum performance, portability and ease of use, the DS-2000LED-OT is a hand-held battery-powered LED Digital Stroboscope for use in speed measurement as well as for motion analysis. It is fitted with seven (7) state-of-the-art, super-bright LEDs mounted in a precision-machined aluminum head with optimized optics, providing the highest light output of similar strobes on the market. Produces up to 3000 Lux!

The DS-2000LED-OT can operate even at the highest flash rates for up to six hours continuously on a single set of three (3) standard "AA" batteries. Keypad controls adjust the flash rate in single increments as well as special keys for 2X and ÷2 functions. Other user-programmable settings include flash duration, phase shift, delay and much more.

Supplied in a high-impact plastic with rubber protective sleeve providing additional protection as well as improved grip for the operator. Lifetime LEDs do not wear-out or need replacement making this product ideal for use on the factory floor, in the field or in the laboratory. Applications include ideal for speed, motion and vibration analysis, on rotating shafts, fans, cams, hi-speed motion analysis for speakers or ink-jet printing and more.

Features

  • NIST-Traceable Calibration Certificate provided
  • Produces the brightest flash and sharpest image over the entire range to 300,000 FPM
  • Lifetime LEDs do not wear-out or need replacement
  • Three (3) AA-Batteries provide six hours of continuous use operation

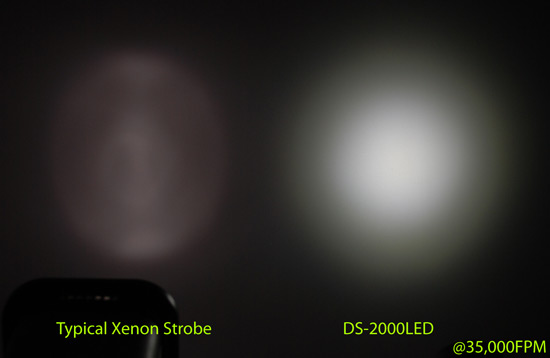

  • Market-leading 3000 Lux brightness (measured at 6000 fpm at a distance of 12")
  • Intuitive controls allow user to quickly adjust flash rate and shift phase

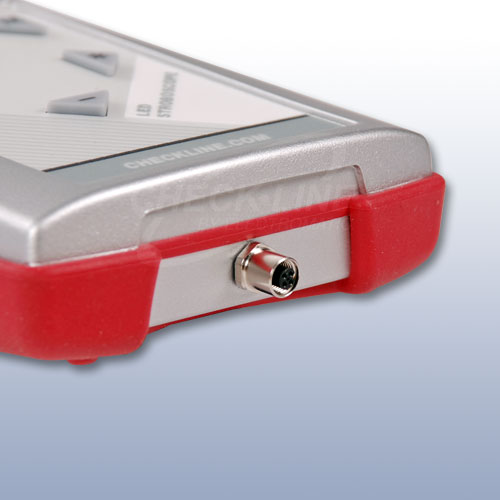

  • External Trigger Input/Output is optionally available. Specify model DS-2000LED-OT
  • User-selected units of Hz or FPM (Flashes Per Minute)
  • IP 65 rated housing provides protection from water jets
  • Made in Germany
  • 2-Year warranty

Light Output (LUX) vs Distance

DS-2000LED-OT light output graph
at 12"/30 cm Distance, 6000 flashes/min (FPM)

Related Products

DS-2000LED LED Stroboscope
Click image for more info
LED Stroboscope - Splashproof
- Produces the brightest flash and sharpest image over the entire range to 300,000 FPM
- Lifetime LEDs do not wear-out or need replacement

Complete Kit

DS-2000LED-OT Strobe is supplied in foam-fitted carrying case with 2 sets of 3x-AA batteries (6 batteries total), connector for external trigger signal and 3 meter/10ft. trigger cable, Traceable Calibration Certificate and Operating Instruction Manual.

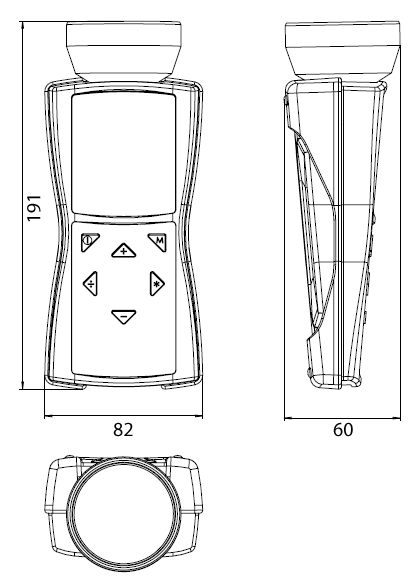

Dimensions

Specifications

Frequency Range30 - 300,000 FPM (0.5 - 5000Hz)
Flash DurationAdjustable (1 usec up to 8522 usec)
Accuracy± 0.02% ± 500ns
Resolution± 0.1 FPM (30 - 999) ± 1 FPM 1000+
Brightness3000 Lux @ 6000 FPM / 30cm (12 inch)
Protection ClassIP65 (Protection from Dust and Water Jets)
DisplayLCD, multiple lines
CertificationCE (as per EU norms)
Flash ColorApprox. 6.500 K

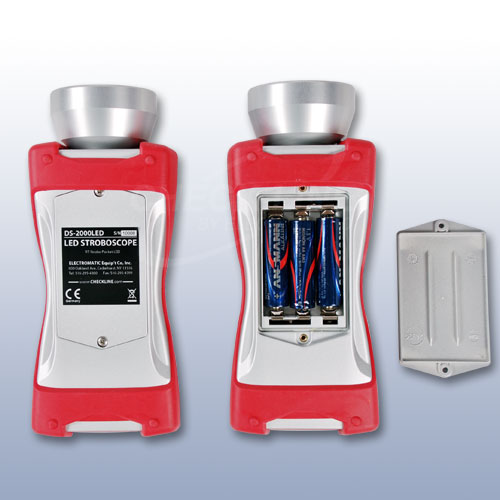

Power Supply3x AA size batteries or 3x NiMH rechargeable batteries
Housing MaterialAluminum / ABS Heavy duty design
Dimensions191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch
Weight Approx400g (including batteries)
Temperature Range0° - 45° C / 32° - 113° F
Battery LifeNiMH: approx 11h at 6.000 FPM
Disposable: approx 6 h at 6.000 FPM
Warranty2 Years
Trigger Input3 - 32 V, NPN + PNP
Low Level: < 1 V
Principle: Optocoupler, voltage-free
Trigger OutputLevel: max. NPR, max 32V
Pulse Length: Adjustable
Maximum current: 50mA
Reverse voltage protection: Yes
Principle: Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated

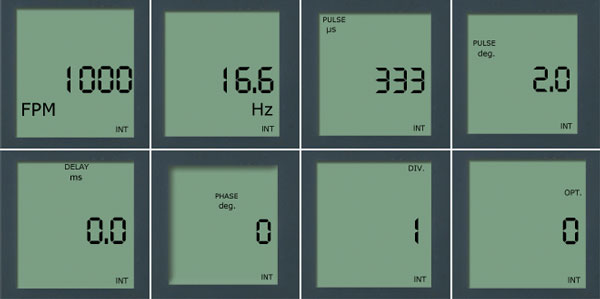

Default SettingsFPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0

Downloads

Buy Now

Item Description Price
LED Stroboscope Complete Kit with external trigger input/output in carrying case
$895.00
Pocket Laser LED Stroboscope Kit with Laser Tach Mode & Auto-Sync Function - external trigger input/output
$995.00
Accessories
BATT-RC4AA-WC
4-pack AA Ni-MH Rechargeable Batteries & Charger Kit
$35.00
DS-2000LED-TPM

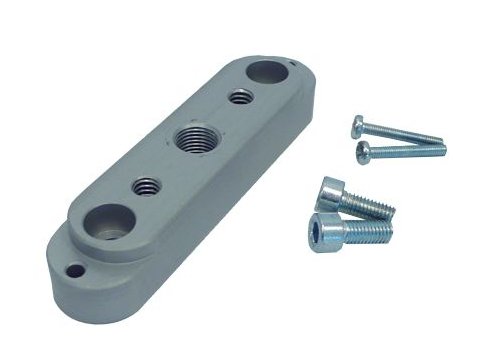

Screw-on Tripod Mount for DS-2000LED [N0001.618]
