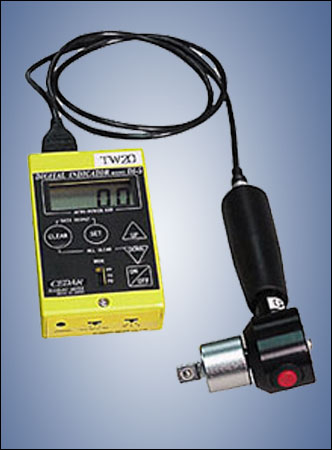

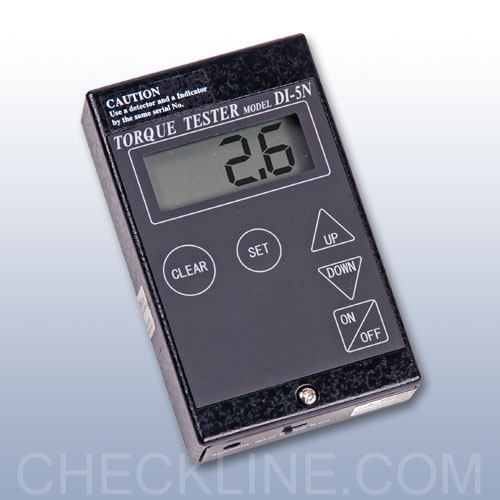

The DI-5N-TW20 Digital Torque Tester is ergonomically designed, extremely lightweight and good for use as a production tool. It tightens or loosens bolts up to 180 lbf-in., yet can be used in difficult to reach places. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed.
This tester has an accuracy of ±0.5%, ±1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak data for SPC (statistical process control) via the RS232 port.

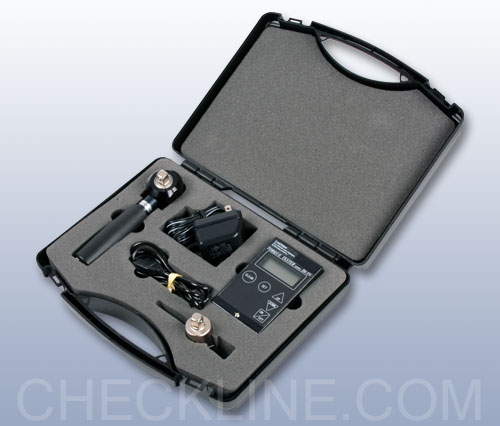

DI-5N-TW20 substantially reduces scrap and rework costs by eliminating over and under-tightening. It is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies. Sold in kit form including display unit, wrench with cable, stepless oneway clutch, AC adapter/charger and carrying case.
- Includes NIST calibration Certificate

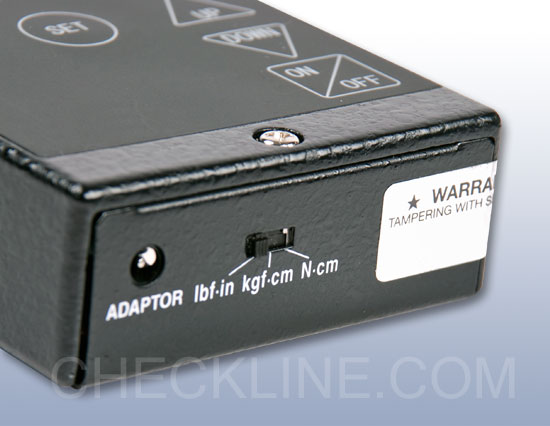

- lbf-in, Kgf-cm and N-cm (selectable)
- Peak, Real Time and Peak Down measuring mode (selectable)
- Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
- 400 peak data memory for recall or for SPC download
- Programmable High and Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing

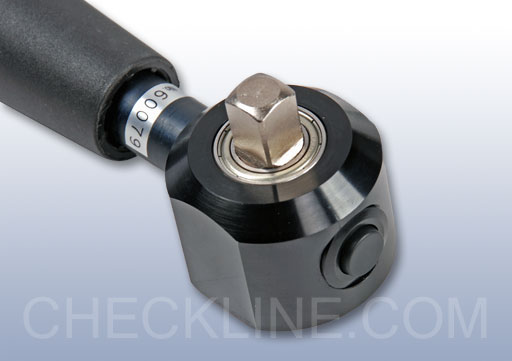

- Zero reset button on the driver for easy operation
- Both clockwise and counterclockwise operation

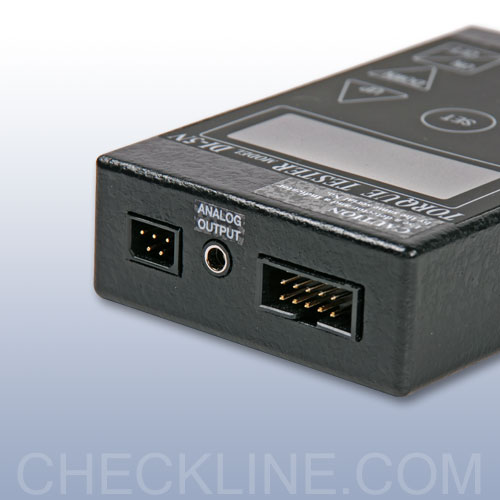

- RS-232 output for SPC capability (peak data only)
- Runs on internal NiCad batteries (8 hour use)
- Ergonomic, light weight, rugged metal construction
- ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
- 2 Year Warranty
| Model | Capacity | Sq. Drive |
|---|---|---|
| DI-5N-TW20 | 1.5-180.0 lb-in 1.5-200.0 kg-cm 15-2000 N-cm | 3/8" |
| Item | Description | Price | ||
|---|---|---|---|---|
DI-5N-TW20 | DI-5N-TW20 - Digital Torque Wrench - No Longer Available | $0.00 | ||
| Accessories | ||||
SW-1S | Data Acquisition Software for DID Torque Screwdrivers | $199.00 | ||
CB-206 | Serial Output Cable | $75.00 | ||
