Measuring Ranges:

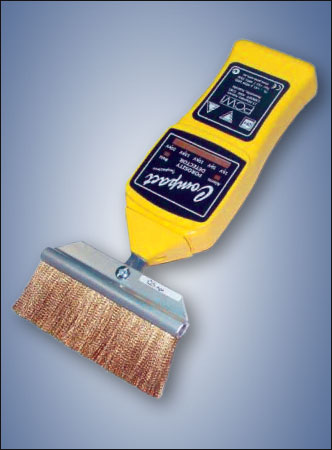

DCI-10: 0 to 10,000 Volts with 9V battery Resolution: 1 kV Steps "Single" handheld, light weight porosity detector for simplicity and ease of operation. Designed with the inspector in mind - Weighs only 460g. Applications
Porosity detection of tanks, valves, pumps, pipeline field joints and general inspection and maintenance. Suitable for a broad range of testing and inspection requirements. It is recommended that the integral probe be limited to a 5" (125mm) wide flat brush or fan brush electrode.
DCI-10: 0 to 10,000 Volts with 9V battery Resolution: 1 kV Steps "Single" handheld, light weight porosity detector for simplicity and ease of operation. Designed with the inspector in mind - Weighs only 460g. Applications
Porosity detection of tanks, valves, pumps, pipeline field joints and general inspection and maintenance. Suitable for a broad range of testing and inspection requirements. It is recommended that the integral probe be limited to a 5" (125mm) wide flat brush or fan brush electrode.
- LED bargraph display of voltage
- Integral probe
- LED battery condition indicator
- Audible & visual alarms
| Model: | DCI-10 |
| Unit Weight: | 1 lb (460 g) |
| Packed Weight: | 3.3 lbs (1.5 kg) |
| Display Voltage: | LED bargraph |
| Test Voltage: | 0 to 10 kV |
| Battery: | 9V Internal |
| Output Test Current: | up to 100µA |
| Dimensions: | Gell Cell 3Ah Slide-Off |
| Dimensions: | 8.25" x 3.1" x 1.5" (210 x 75 x 35 mm) excluding brush |
| Alarm: | Audible and visual |
| Battery Condition: | LED indicator |
The Inspector Kit comprises the detector, power pack (20kV Inspector only), 5-inch (125 mm) flat brass wire brush or optional fan brush, 23-feet (7 m) Earth lead with clamp, carrying case, operating instructions with Conformance Certificate.
