2 Models
DCF-3000PS - Ferrous Model
DCN-3000PS - Non-Ferrous Model
DCF-3000PS - Ferrous Model
DCN-3000PS - Non-Ferrous Model
Measuring Range: 0-60.00 mils (0-1500 µm)

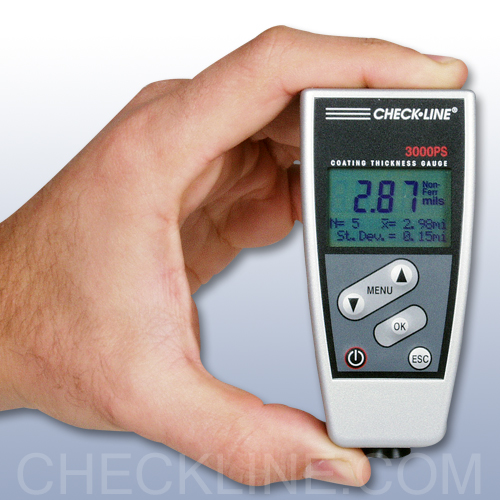

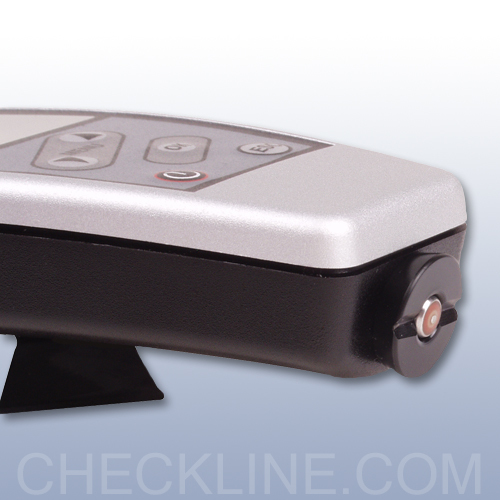

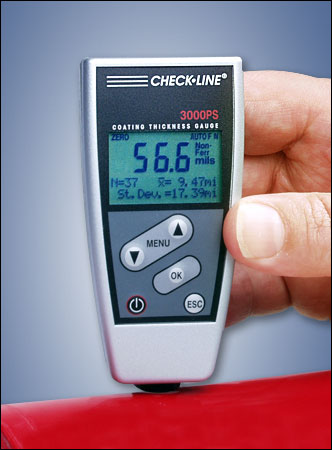

The 3000PS is an exceptionally small hand-held gauge with integrated probe for fast, practical and precise coating thickness measurement.
It is ideal for the non-destructive testing of all non-magnetic coatings such as varnish, paint, enamel, chrome, copper, zinc, etc... on steel and iron (magnetic induction method) and all electrically insulating coatings, such as varnish, paint, anodizing coatings on non-ferrous metals, also on stainless steel (eddy-current method).
- Keypad-selectable English or metric units.
- Long lasting, driftless calibration... Set it and forget it for long periods of time and from job to job
- Traceable Certificate Included at no additional cost
- 1 Year Warranty

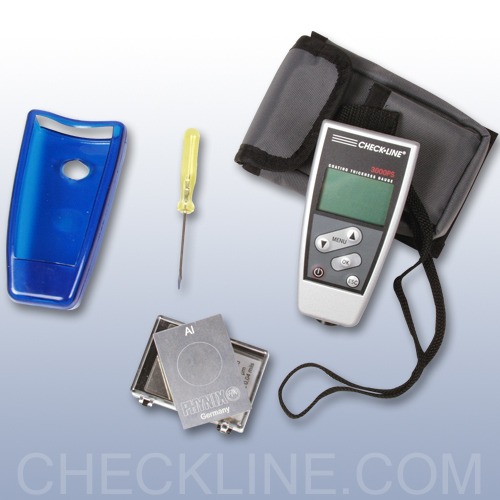

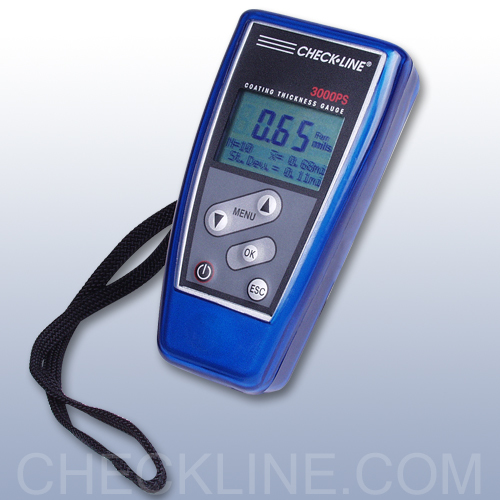

The 3000PS is supplied as a complete kit with gauge, ferrous or non-ferrous zero plate(model dependant), 2 calibration standards, 2 AAA batteries, soft carrying pouch, protective rubber shell, mini screw driver, instruction manual and manufacturer's calibration certificate
| Minimum Radius for Convex Surfaces | 0.12" (3 mm) | |
| Minimum Radius for Concave Surfaces | 0.2" (5 mm) | |
| Minimum Headroom | 4" (100 mm) | |
| Minimum Sample Diameter | 0.2" (5 mm) | |
| Minimum Substrate Thickness - F | 20 mils (0.5 mm) | |
| Minimum Substrate Thickness - NFe | 2 mils (50 um) |
| Mils | |
| 0.00 - 9.99 mils | 0.01 mils |
| 10.00 - 24.98 mils | 0.02 mils |
| 25.00 - 49.95 mils | 0.05 mils |
| 50.0 - 99.9 mils | 0.1 mils |
| Microns (µm) | |
| 0.0 - 99.9 µm | 0.1 µm |
| 100.0 - 249.8 µm | 0.2 µm |
| 250.0 - 499.5 µm | 0.5 µm |
| 500 - 999 µm | 1 µm |
| 1.000 - 1.998 mm | 0.002 mm |
| Range | 0 - 60.00 mils 0 - 1500 µm |
| Accuracy | ±0.04 mils / 1µm + 1% of reading |
| Resolution | Refer To Table Above |
| Display | back-light, 4-digit alphanumeric, digit height 10mm |
| Minimum Measuring Area | 0.2" x 0."2 (5 mm x 5 mm) |
| Minimum Curvature Radius | convex: 0.12" (3 mm), concave: 0.2" (5 mm) |
| Minimum Substrate Thickness | Ferrous: 20 mils / 0.5 mm Non-Ferrous: 2 mils / 50 µm |
| Calibration | factory calibration, zero calibration, foil calibration, offset-function: addition or subtraction of a constant value |
| Memory | 80 readings |
| Statistics Program | Number of readings, mean value, standard deviation, maximum and minimum reading of max. 10,000 readings |
| Set Limits | Adjustable selectable with acoustic alarm system |
| Data Output | Infrared IrDA Standard |
| Operating Temp. | 32 °F to 122 °F / 0 °C to 50 °C |
| Surface Temp. | 5 °F to 140 °F / -15 °C to 60 °C |
| Storage Temp. | -4 °F to 140 °F / -20 °C to +60 °C |
| Power | 2 AAA 1.5V |
| Dimensions | 4" x 2" x 1" (99mm x 48mm x 24 mm) |
| Weight | 3 oz (85 g) |
| Protection Class | IP 52 (proof against dust and dripping water) |
| Standards | DIN, ISO, ASTM, BS |
| Warranty | 1 Year |
