- Automatic identification of the substrate
- Calibration-free measurements (calibration only in exceptional cases)

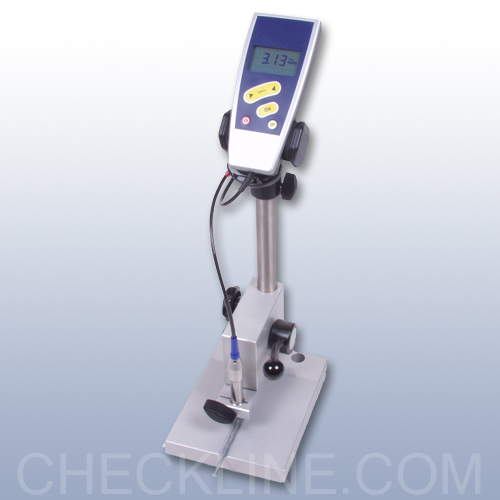

- Mobile and stationary operation with only one gauge
- Highly wear-resistant measuring poles made of carbide metal

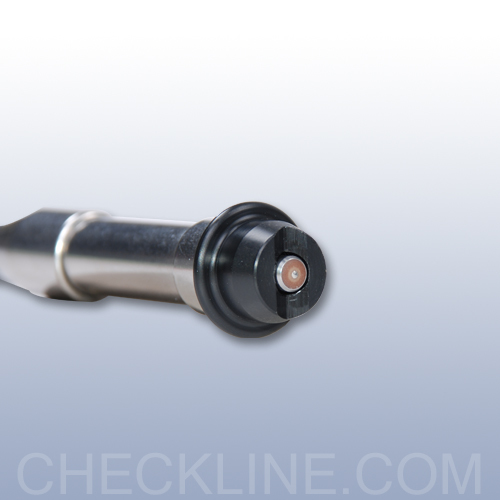

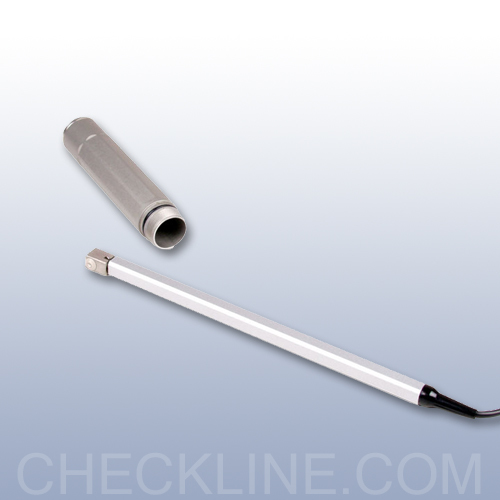

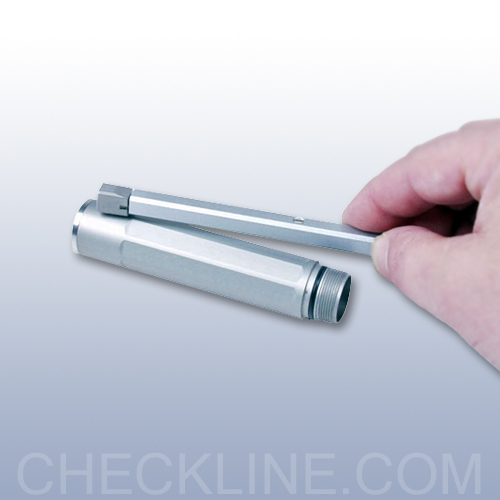

- Special probes for unusual measurement tasks
- Precise measurements on different geometries thanks to simple calibration methods
- Safe use even for special applications such as sand-blasted surfaces, small parts and curved surfaces
- Scan mode for the quick recognition of coating thickness variations on large surfaces, including display of minimum and maximum readings
- Display backlight for bad ambient lighting conditions
- Online statistics with all statistical parameters
- Easy to operate, well-known from mobile phones
- Intuitive menu guidance via dialog with the user
- Free choice of language - German, English, French
- Extensive data memory for the management of different measurement series
- Alphanumerical file names can be individually stored for every measurement task
- Infrared interface for wireless data transfer to printer and PC
- No additional data transfer software required thanks to the use of Windows® standard application (HyperTerminal)
- Optional high temperature footer for measuring on surfaces up to 150 °C/302 °F
- Includes Traceable Calibration Certificate
- 1 Year Warranty

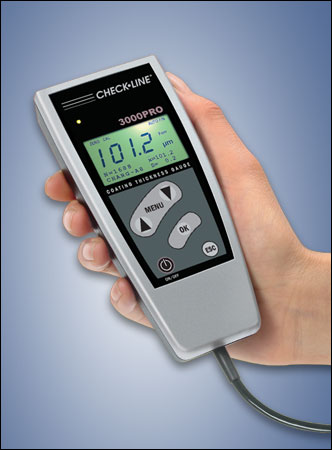

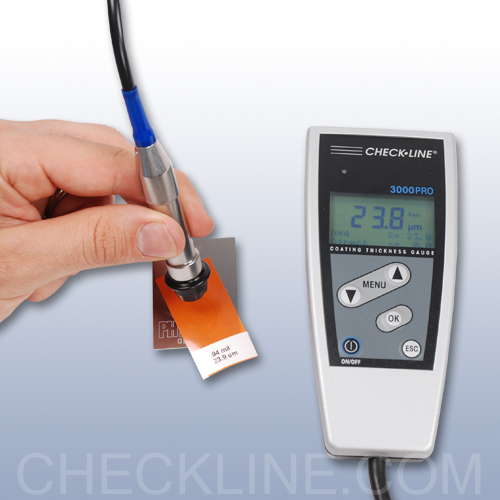

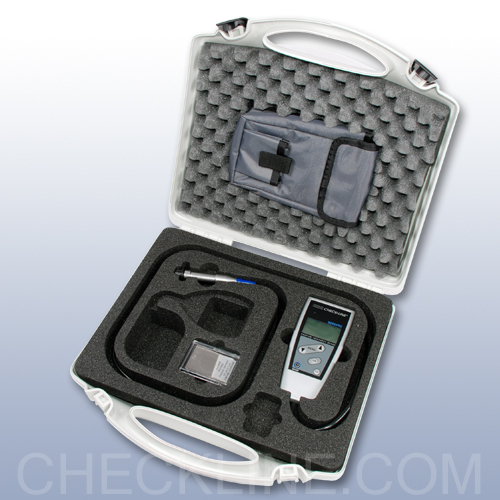

The 3000PRO is supplied as a complete that includes the gauge, probe, manufacturers calibration certificate, a ferrous and or non-errous zero plate(model dependant), 2 calibration foils, 2 AA batteries, soft pouch, instruction manual all in a rugged plastic carrying case.
| Minimum Radius for Convex Surfaces | 0.08" (2 mm) | |
| Minimum Radius for Concave Surfaces | 0.2" (5 mm) | |
| Minimum Headroom | 4" (100 mm) | |
| Minimum Sample Diameter | 0.2" (5 mm) | |
| Minimum Substrate Thickness - F | 8 mils (0.2 mm) | |
| Minimum Substrate Thickness - NFe | 2 mils (50 um) |
| Standard probe & and FN/90° probe | |
| Mils | |
| 0.00 - 9.99 mils | 0.01 mils |
| 10.00 - 24.98 mils | 0.02 mils |
| 25.00 - 49.95 mils | 0.05 mils |
| 50.0 - 99.9 mils | 0.1 mils |
| Microns (µm) | |
| 0.0 - 99.9 µm | 0.1 µm |
| 100.0 - 249.8 µm | 0.2 µm |
| 250.0 - 499.5 µm | 0.5 µm |
| 500 - 999 µm | 1 µm |
| 1.000 - 1.998 mm | 0.002 mm |
| Measuring principle: | Magnetic induction method (F-version); Eddy current method (N-version) |

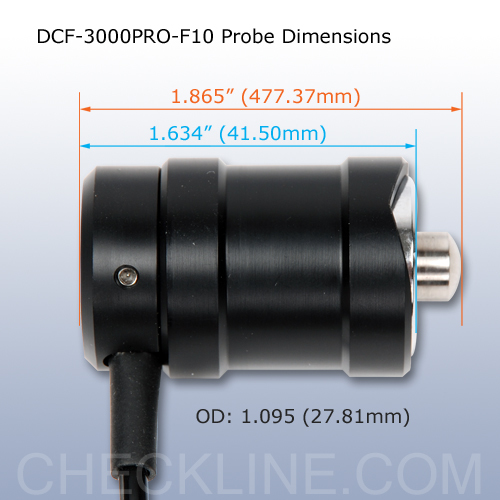

| Measuring range: | 3000PRO & 3000PRO-FN90: 0 - 60.00 mils / 0 - 1500 µm 3000PRO-F10: 0 - 400 mils / 0 - 10,000 µm |
| Tolerance: | ± (0.7 µm/0.04 mils + 1% of reading) |
| Resolution: | Refer to RESOLUTION TABLE, above |

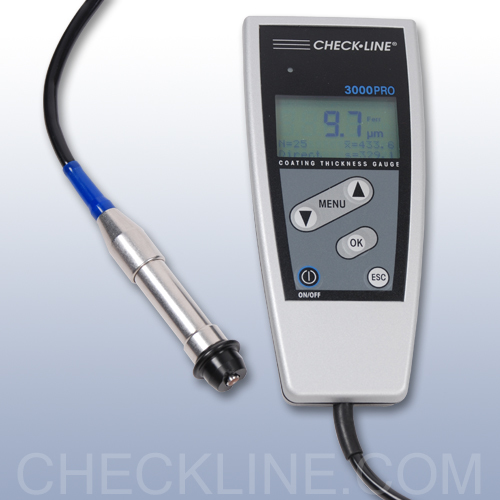

| Display: | 4-digit display (digit height 10 mm/0.4") and 32 alphanumerical characters; switchable backlight |
| Minimum measurement area: | 5 mm x 5mm/0.2" x 0.2" |
| Minimum curvature radius: | convex 2mm/0.08"; concave 5mm/0.2" |
| Minimum substrate thickness: | 0.2mm/8 mils (for F-versions); 50 µm/2 mils (for N-versions) |
| Calibration methods: | - Factory calibration: no calibration required for standard applications - Zeroing (1-point calibration): measurements on small geometries - Zeroing and foil calibration (2-point calibration): increased measuring accuracy - Two-foil calibrat |
| Limit values: | Selectable; optical and acoustic signal if limit value is exceeded |
| Scan mode: | For continuous measurements; for the quick recognition of coating thickness variations; with permanent display of minimum and maximum reading |
| Statistics: | Single-value statistics: n, avarage x, s, kvar, min, max, cp, cpk from max. 10,000 readings Block-value statistics: n, avarage x , avarage s, avarage kvar , min, max, cp, cpk; block size 3 to 100 readings |
| Data memory: | 10,000 readings in max. 500 selectable files; alphanumerical file names; stored readings and statistical values individually recallable |
| Interfaces: | Infrared and serial RS232 interface |
| Language: | Operator prompting and documentation in German, English, French (optional other languages) |
| Operating temperature: | 0 °C to 50 °C/32 °F to 122 °F (storage temperature - 20 °C to +60 °C/-4 °F to 140 °F) |
| Surface temperature: | 5° F - 140° F / -15° C - 60° C (standard) 5° - 302° F / 15° - 150° C (w/optional footer) |
| Power supply: | 2 x round cell (AA) 1.5 V up to 60 hours of operating time |
| Housing/keypad: | Protection class IP52 (protection against dust and dripping water) |

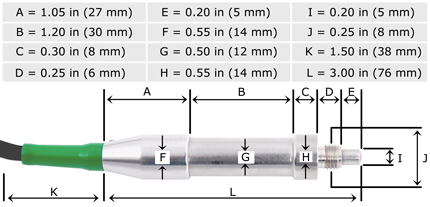

| Dimensions: | Gauge: 140 mm x 62 mm x 30mm/5.6" x 2.5" x 1.2" (HxWxD) Probe: dia. 14 mm x 83mm/dia. 0.56" x 3.3" |
| Weight: | approx. 200 g/7 oz (gauge including batteries and probe) |
| Standards: | DIN EN ISO, ASTM, BS |
| Warranty | 1 Year |
| Calibration Certificate | Included |
