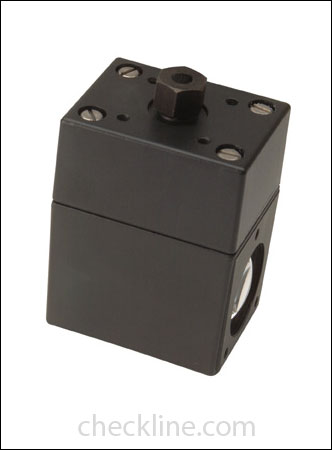

MCS-625 Photo Reflective Sensor

Click images to enlarge.
Consists of a LED infra-red light source sensing device and amplifier contained in a heavy-duty housing. For initial alignment purposes, a small indicator lamp is mounted in the top of the sensor housing. The MCS-625 has an open collector output and requires a pull up resistor.

Features

  • The MCS-625 has an open collector output and requires a pull up resistor
  • Consists of a LED infra-red light source sensing device and amplifier contained in a heavy-duty housing
  • A small indicator lamp is mounted in the top of the sensor housing

Specifications

Operating Range1" to 3ft
Power Input12 to 18VDC at 35 to 50mA
Activation Frequency250Hz
Ambient Temperature-30ºC to 50ºC ( -22ºF to 122ºF)
OutputOpen collector type sink current 250mA max
Cable length10ft
Weight18.5 oz
HousingZinc die cast
Mounting4 mounting holes in base, 3 holes in face
