RP6 RP6 Moisture Meter for Recycled Paper

RP6 Moisture Recycled Paper Moisture Meter
Click images to enlarge.

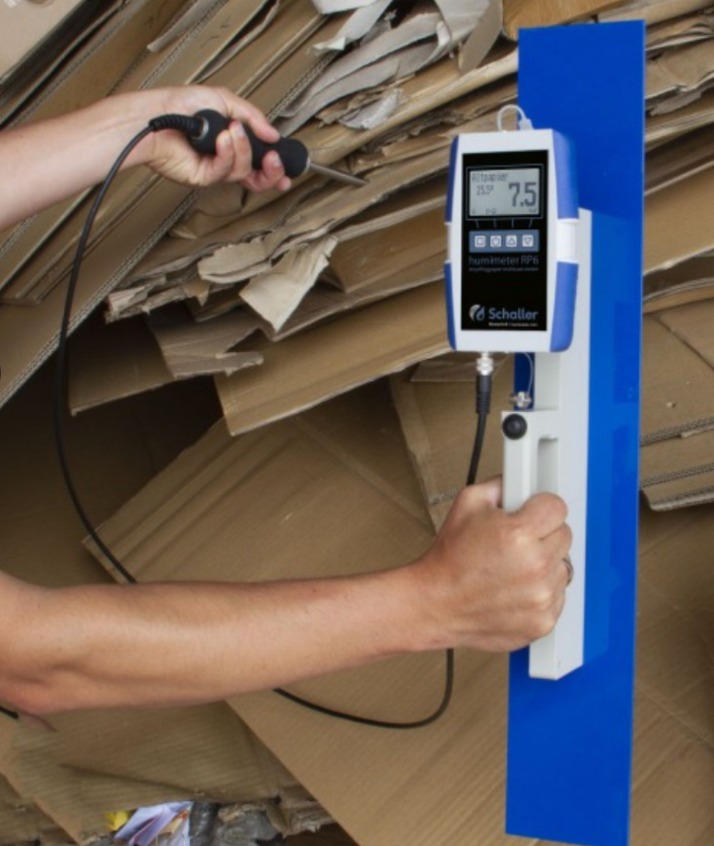

RP6 Moisture Recycled Paper Moisture Meter measuring a bale of paper The RP6 moisture meter is designed fast, non-destructive measurement of moisture content in recycled paper and for the detection of moisture spots in recycling paper bales.

Measurement of compressed bales, roles and pulp possible. Measuring range of 1 to 50% water content, measuring depth 500mm. Furthermore it is possible to connect external sensors to the humimeter RP6.

Use the optional humidity and temperature sensor to measure environmental parameters and many other important paper key figures quickly and efficiently.

To measure loose paper or cardboard, use the optional 0.3 meter long insertion probe.

Features

  • Measuring range: 1 to 50% water content (depending on the material)
  • Resolution: 0.5% water content
  • Eight (8) built-in factory calibrations for most common recycled paper types
  • Hold function, automatic dataloging for up to 10,000 values with measuring point report
  • Includes USB data outut, supplied with cable and Free Software
  • Quickly and highly accurate measurement using a non-destructive method
  • Automatic temperature compensation
  • Measurement within seconds without prior treatment of samples
  • Interface for the connection of optional external sensors
  • Menu languages: English, German, Italian, French, Spanish, Russian, many others on request
  • Protection class: IP64 - protected against dust and liquid spray
  • Optional: portable thermal printer, humidity and temperature sensor, test block
  • Supplied with Rechargeable batteries (Li-Ion 1950mAh) and USB Charging Cable
  • Made in Austria to the highest standards, CE-certified and backed by 2-Year Warranty

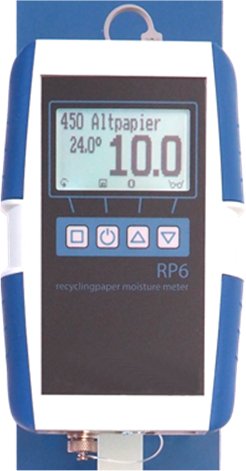

RP6 Measuring Procedure

Turn on your RP6 moisture meter by pushing the black button on the handle of the device. Choose your calibration (e.g. 350 recycling paper) and press the measuring plate against the paper bale. The display immediately shows the water content and temperature. The measuring values can be stored in the humimeter RP6 memory, additional information like supplier’s data and notes can be added. The stored values can be sent to a PC if required. Measurements can be printed immediatley via the optionally available portable printer. For measurement of other relevant process parameters, a humidity and temperature sensor can be connected.

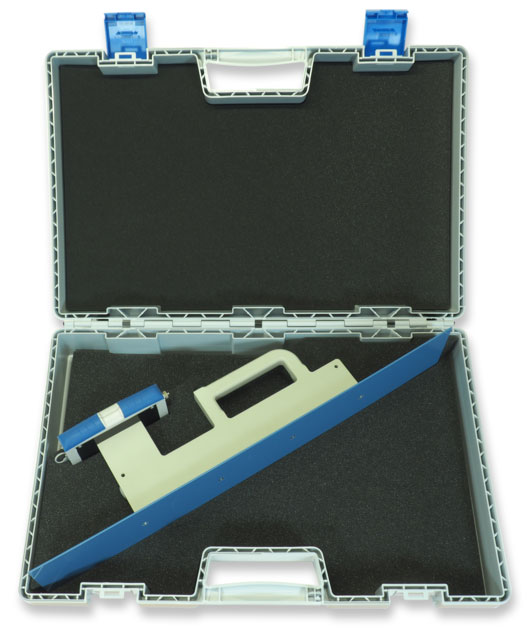

Complete Kit

The RP6 is delivered as a complete kit including:

RP6 Recycling Paper Moisture Meter
USB cable
LogMemorizer PC Software (supplied on thumdrive
Rechargeable batteries (Li-Ion 1950mAh)
USB Charger
Plastic carrying case

Specifications

Measuring Range0 to 50% water content
Resolution0.5% water content
Data LoggerUp to 10,000 measurements & report
Data OutputUSB (supplied with data transfer cable and software on thumbdrive)
Measuring depthmax. 500 mm
LCD Display128 x 64 matrix display, with backlight
Battery TypeLi-Ion 1950mAh Re-Chargeable Battery (USB Cable included)
Battery Life40 hours (continuous use)
Temperature CompensationAutomatic (Displayed in °C or °F as preferred)
Factory CalibrationsEight (8) built-in factory calibrations for most common recycled paper types
Current Consumption40mA (with backlightlight)
Operating Temperature0 to +50°C (32 to 122°F)
Storage Temperature-20 to +60°C (-4 to 140°F)
Dimensions620 x 100 x 147 mm (24.4" x 4" x 5.8")
Weight1 kg, approx. (with batteries) / 2.2 Lbs
Carrying Case Dimensions590 x 394 x 165 mm (23" x 15.5" x 6.5")
Shipping Weight4.5 kg / 10 lbs
Warranty2-Years
Menu LanguagesEnglish, German, Italian, French, Spanish, Russian, many other on request

Downloads

Buy Now

Item Description Price
RP6
Recycling Paper Moisture Meter with built-in datalogger & USB output
$5,795.00
Accessories
HUMI-PRINTER
Portable Battery Powered Thermo Printer
$450.00
12391
Replacement Li-Ion rechargeable battery for RP5/RP6 3.7V 1950 mAh
$75.00
RP6-TB
Test Block for use with RP6 to confirm calibration, supplied in wood carring case
$395.00
LF-TB-120

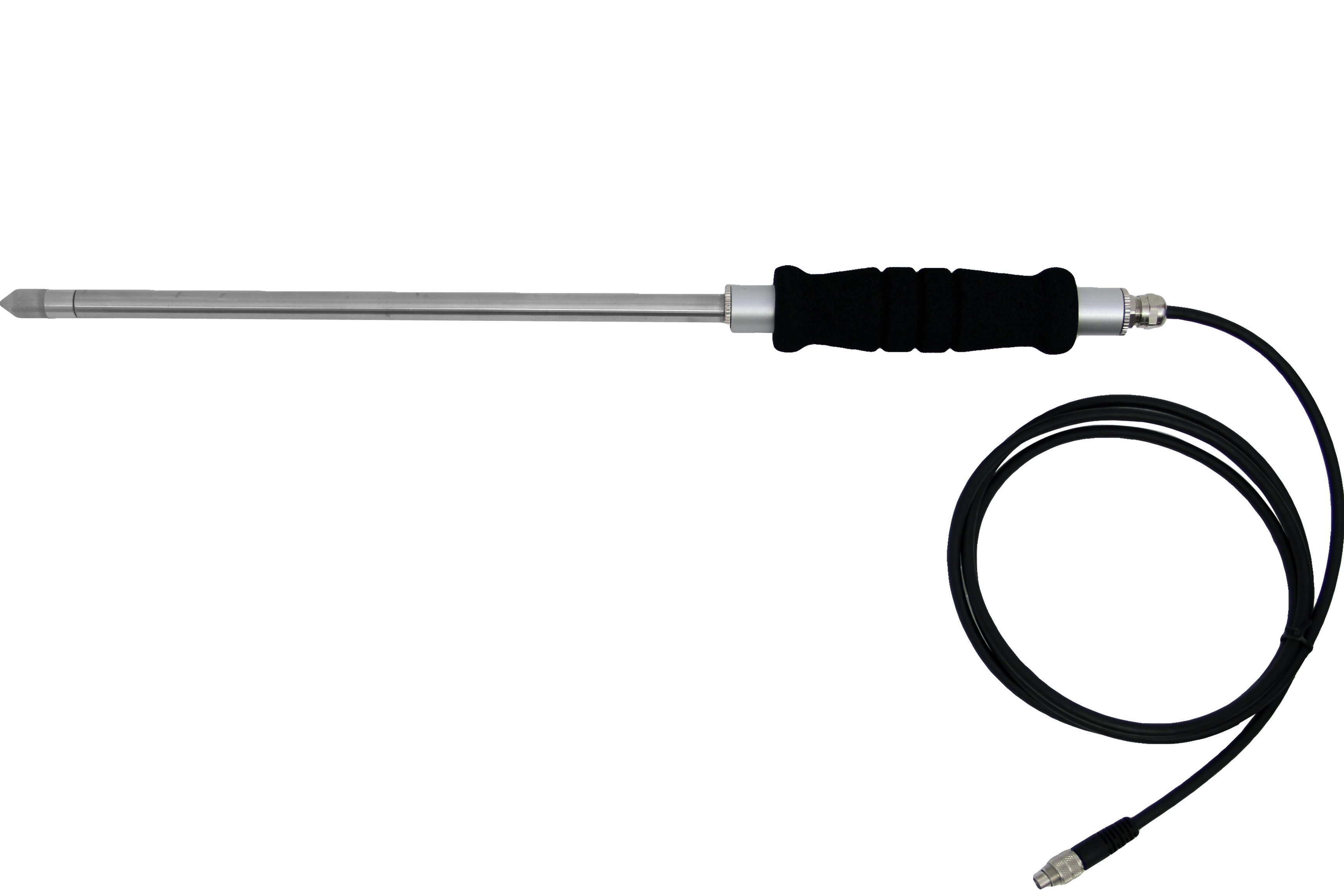

LF-TB-120 Precision Humidity & Temperature Plug-in Sensor (Art# 12004)
$795.00
13837

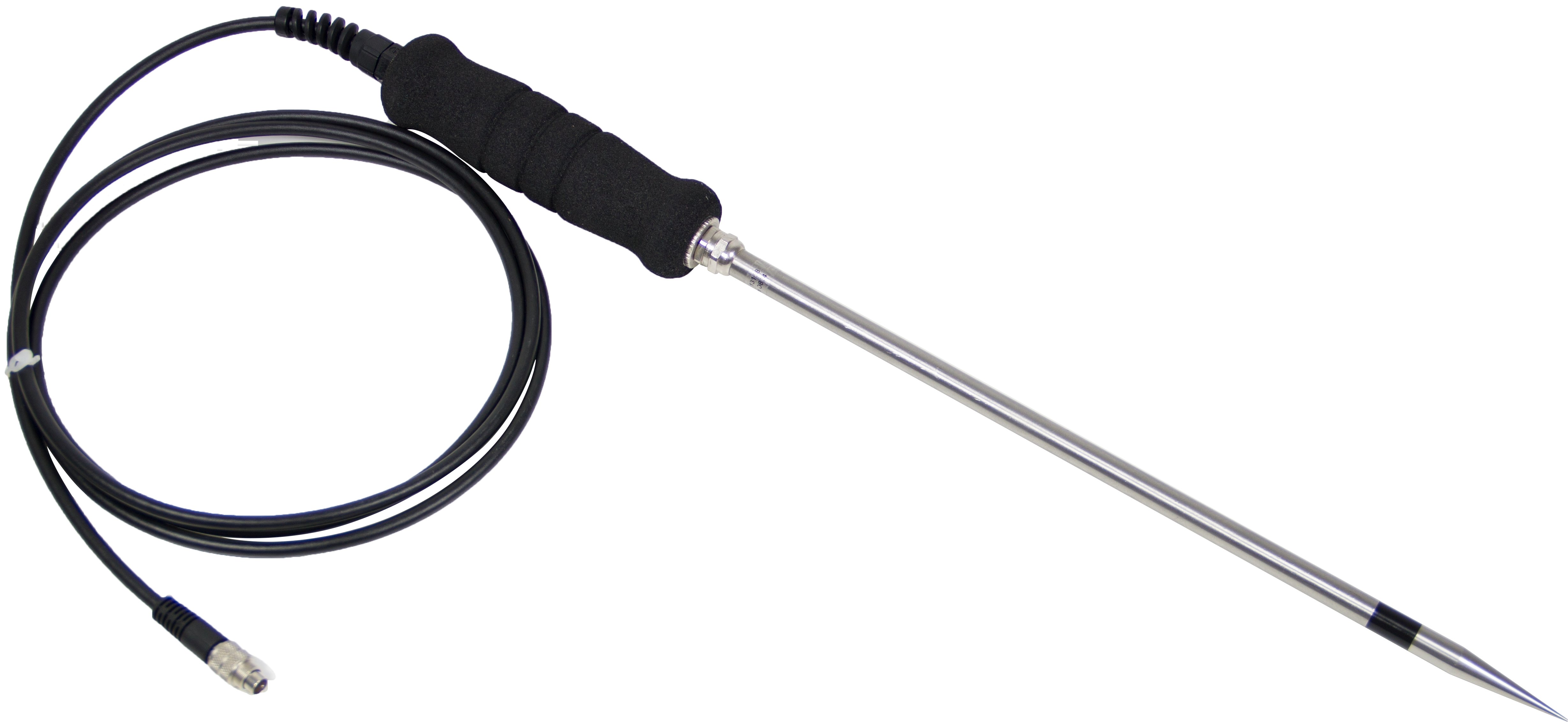

Insertion probe with stainless steel probe of 0.3 meter length for recycling paper and corrugated board
$525.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
