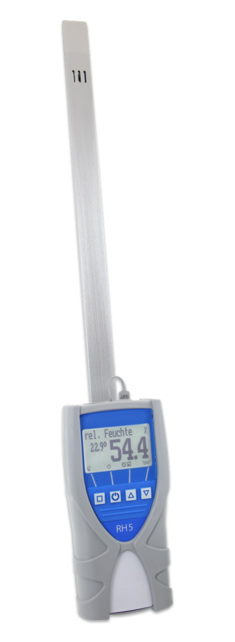

RH5 RH5 Paper Moisture Meter with Datalogger

RH5 Paper Moisture Meter
Click images to enlarge.
The RH5 Paper Moisture Meter is designed for measuring relative moisture in paper by inserting the sword probe into a stack/pile of paper. The measured values can be manually entered into datalogger or can be set to automatically record at pre-set intervals

The temperature is measured as well and included in the hygromeasurement. Temperature range for measurement is -10 to +60 °C and can either be displayed in °C or °F. The RH5 hygrometer can measure the relative air humidity measurements or dew point.

Model RH5-USB includes USB output for transferring recorded data to a PC or printer for analysis/documentation. It is supplied with FREE software and USB data transfer cable for connection to a PC. There is also an option for a thermal printer with which you can print you measured values without a PC directly from the instrument. For additional protection, we recommend the optional RH-SWORD sensor holder to prevent the sensor or gauge being damaged during the "insertion" process. We also recommend using the optional RH-REMOVE removal tool to extract the sensor holder from the stack of paper.

Features

  • Measurement accuracy of ±1.5% & resolution of 0.1%
  • Data can be manually entered into datalogger automatically record at pre-set intervals
  • RH5-USB provides output to transfer stored data to a PC. Includes software & transfer cable
  • Supplied with wooden case and batteries
  • Measures temperature using Pt 1000 probe & calculates Dew Point
  • Menu language in English, German, French, Italian, Spanish and Russian
  • Using unique "sword" sensor element to penetrate paper roll
  • 2-Year Warranty

RH5 Measuring procedure

To determine the moisture in paper piles, the sword sensor is inserted into the paper stack and left there for a short conditioning time. The large, well-lit display shows the current moisture and temperature value. Via the integrated datalogger the measuring values can be stored and additional data can be added. The Autolog function enables an automatic saving of measuring values in adjustable time intervals. To prevent a damage of the sword sensor in heavy paper stacks, a sword sensor holder and a tool for removing the sword sensor holder are available optionally. The humimeter USB data inter-face module offers the possibility to connect the device to a PC. Via the delivered LogMemorizer software the measuring values can be read off the device, addition information can be added, and the data can be archived, exported and processed.

Specifications

Measurnig Range0 to 100%
Resolution0.1%
Accuracy±1.5% (0 to 90%) at 25°C
Temperature Range-10 to +60°C (14 to 140°F)
Temperature Resolution0.1°C (0.1°F)
Temperature Unitscan be set to °C and °F
Temperature Accuracy±0.4°C (at 25°C) Pt 1000 DIN B
Dew Point Temperature Range-55 to 60°C (-67 to 140°F)
Dew Point Temperature Resolution0.1°C
Date LoggerAutomatic data log for 10.000 logs with measuring point report (optional)
Complete KitRH5 Moisture Meter, Wooden Case, Batteries, User Manual
Optionally AvailablePC-interface, software and printer
Warranty2 years

Downloads

Buy Now

Item Description Price
Paper Moisture Meter with Sword Probe, Memory (no output)
$816.48
Paper Moisture Meter with Sword Probe, Memory and USB Output (includes USB cable and software)
$1,450.40
Accessories
RH-PRINTER
Portable thermoprinter on batteries - for use with RH5-USB ONLY.
$558.88

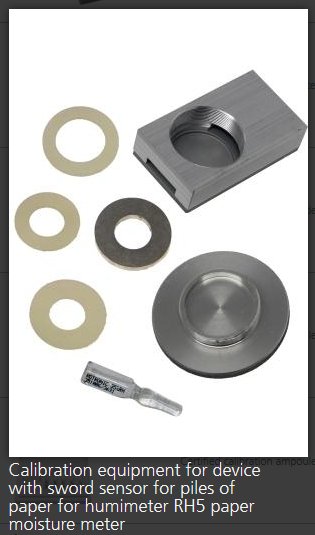

RH-CAL-UNIT
Calibration accessory required for use with RH-CAL-AMP1 or RH-CAL-AMP2
$252.00

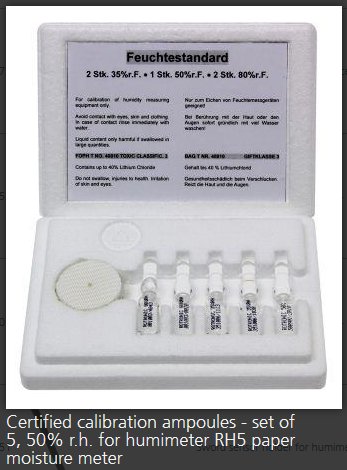

RH-CAL-AMP1
Certified calibration ampules - set of 5. 50%r.h. (requires use of RH-CAL-UNIT accessory)
$162.40
RH-CAL-AMP2
Certified calibration ampoules - set of 5. 2 x 35 % r.h., 1 x 50 % r.h., 2 x 80 % r.h (requires use of RH-CAL-UNIT accessory)
$162.40

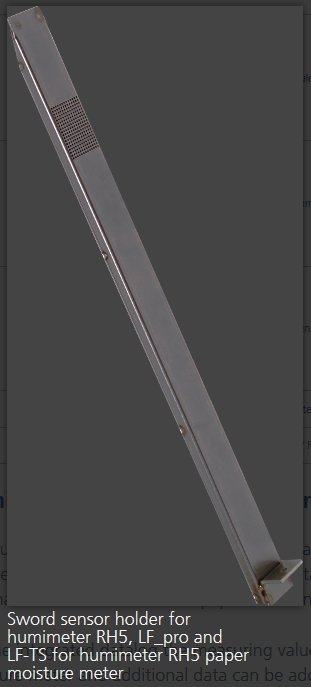

RH-SWORD
Sword sensor holder for RH5
$168.00

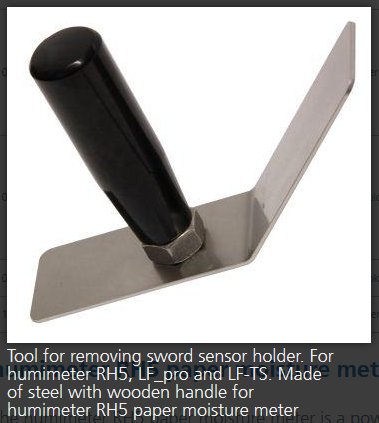

RH-REMOVE
Sword sensor holder removal tool (made of steel, with wooden handle)
$67.20
RH-CAL
Factory calibration certificate protocol documenting the adjustment at delivery
$168.00
