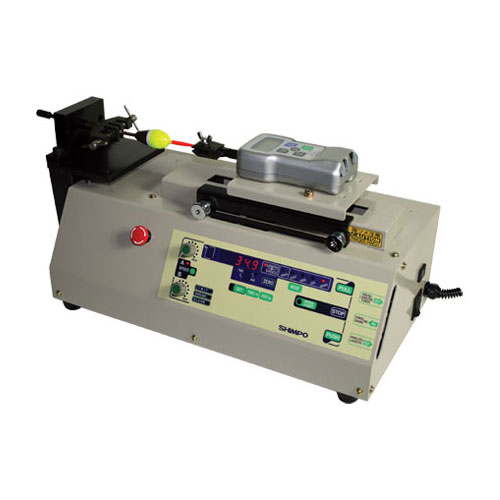

FGS-100PX Motorized Programmable Force Test Stand

Click images to enlarge.
2 Models Available
FGS-100PXH
: 1.6" - 16" inches/min (Standard Speed)
FGS-100PXL: .4" - 4" inches/min (Low Speed)

The FGS-100PX advanced motorized, programmable force test stand combined with our line of top quality force gauges; provide a complete force measurement system capable of handling the most precise testing applications. Their all steel construction makes them remarkably rugged while performing with precision. Programming capabilities provide the versatility to tackle a multitude of applications. Two modes of operation, single or continuous cycling allow for a single precise test or repetitive, consistent results. User selectable high and low force set points through RS232 interface or directly through the force gauge allows the test stand to stop at specific force loads while displaying and outputting the displacement. The FGS-100PX motorized test stand offers a wide range of force capacities in horizontal configurations and are available in both standard and ultra-slow speeds.

*FORCE GAUGE NOT INCLUDED
Designed to work with the FGE & FGV force gauges.

Features

  • 5 user programmable set points for speed, distance and stop time permit customized testing
  • Compatibility with nearly all manufacturers' force gauges enables flexibility in testing applications
  • Analog voltage output of displacement allows graphing and analysis of data on computer
  • Manually adjustable upper and lower limits restricts movement, allowing for precise testing
  • All gauge functions can be communicated through stand via RS232 interface allowing easy operation and data download
  • Compact, modular design reduces weight, footprint and cost of stand

Specifications

Capacity110 lb (50 kg)
Travel SpeedFGS-100PXH: 0.79 – 19.69 inch/min (20 – 500 mm/min)
FGS-100PXL: 0.19 – 4.72 inch/min (5.00 – 120 mm/min)
Stroke5.5" (140 mm)
DisplayFour digit LED, 0.41" high (10.5 mm), Reads in inches (0.01 resolution) or millimeters (0.1 resolution)
Operating ModeManual (MANU), Jogging (JOG), Single (SING), Continuous (CONT), Program (PROG)
Time Delay0 through 5 second delay between direction change
Power120 VAC, 60 Hz
Weight40 lb (18 kg)
Warranty2 Years

Downloads

Buy Now

Item Description Price
Horizontal motorized test stand, 100 lb capacity, high speed model - Please contact us for pricing and availability.
$
Horizontal motorized test stand, 100 lb capacity, low speed model - Please contact us for pricing and availability.
$
Accessories
UNI-PLATE
Gauge mounting plate for FGS-100 Series Stands
$135.00
FGV-FGS250P
Interface cable for FGS-100 & FGS-250 force test stands
$105.00
FGS-ANALOG
Analog output cable for force test stands
$30.00
FG-250PV-RS232
RS-232 Communication cable from FGS stand to computer
$90.00
FG-HORIZ-ADAP
Grip adapter for horizontal test stands
$260.00
