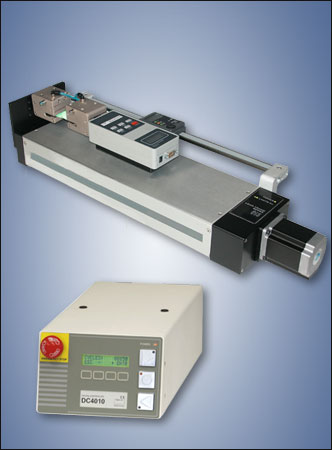

ESMH-DC Advanced Motorized Test Stand REPLACED BY ESM303

Made in USA
Click images to enlarge.
REPLACED BY ESM303

The ESMH-DC Advanced Motorized Force Measurement Test Stand offers all the mechanical specifications of the ESM motorized test stand, including 50 lb (250 N) force capacity, smooth top surface for coefficient of friction testing, integrated limit switches, stepper motor design that prevents speed variation with load, and more.

The ESMH-DC offers expanded capabilities, including PC control, programmable cycling, auto return, and other features.

Features

  • Mounting Holes for bench mounting
  • Removable loading plate with matrix of #10-32 threaded holes
  • RS-232, Mitutoyo and analog outputs
  • The ESMH-DC is supplied with a small hook, medium hook, 2" diameter compression plate, extension rod, and #10-32 coupler.

Controller Features

  • Computer Control

  • An RS-232 port is provided to interface with a PC. The ESMH-DC accepts a number of commands pertaining to test stand motion and force gauge functions*. The following additional items are required for PC control:
    - Series BG force gauge (more info)
    - 09-1056 serial cable (see Optional Equipment)
    - 09-1143 multi-function cable (see Optional Equipment)
  • Overload Protection Protects a force gauge against overload (requires a Series BG force gauge and 09-1143 multi-function cable). The user programs the desired percentage of full scale of the gauge. Adjustable analog output voltage setting allows the test stand to interface with virtually any force gauge with analog output.
  • Auto-return
    The crosshead moves to a limit switch or force set point (requires a Series BG force gauge), stops, and reverses direction at maximum speed to the other limit switch or set point.
  • Cycling / Dwell Time
    The crosshead moves up and down between limit switches or force set points (requires a Series BG force gauge). Configurable up to 99,999 cycles. Dwell time allows the operator to program the amount of time, up to 9,999.9 seconds, in 0.1 second intervals, for which the crosshead pauses at limits.
  • Programmable LEFT / RIGHT Button Functions
    LEFT and RIGHT button operation can be configured in three user-configurable modes: Maintained: a short push produces continuous motion until STOP is pressed, Momentary: crosshead moves only while the button is pressed, and Auto: short push produces maintained motion, while holding down the button will produce momentary motion.
  • Independent Left and Right Speeds
    Programmable independent speeds for left and right directions
  • Selectable speed units of measurement (in/min & mm/min)
  • Password protection Prevents unauthorized changes to test parameters
* Contains no integrated travel measurement. Travel information available only through the external ESMH001 digital travel display, requiring an additional serial port on the PC. For an integrated solution with full PC control, including travel distance, see test stand model ESM301.

Related Products

M5 Digital Force Gauge
Click image for more info
Advanced Digital Force Gauge - Model M5
- High-speed 7,000 Hz peak sampling rate
- 1,000-point data memory with statistics and outputs

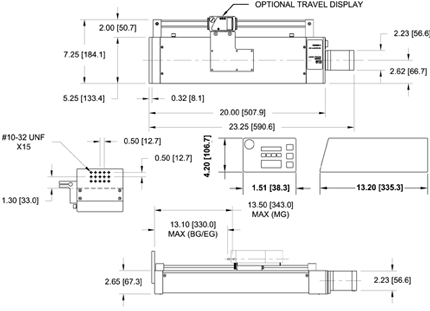

Dimensions

Specifications

Capacity50 lbs / 25 Kg / 250 N
Stroke13" [330 mm], 12" [305 mm] w/optional travel display
Travel Rate0.2 - 50 in/min [5 - 1270 mm/min]
Speed Accuracy±2% of setting, ±0% variation with load
Limit Switch Repeatability±0.001" [0.03 mm]
DimensionsRefer to Dimensions above
Operating Temperature Range40 - 100°F, max. 96% humidity, non-condensating
Compatible GaugesBG and MG
Warranty3 years

Downloads

Buy Now

Item Description Price
ESMH Motorized Test Stand with digital speed controller REPLACED BY ESM303H
$
Accessories
ESMH001
Digital travel display, 12" x 0.0005 (300 mm x 0.01)
$900.00
09-1143
Multi-function cable, gauge to test stand
$125.00
09-1056
Serial cable, test stand to PC
$30.00
09-1066
Cable, travel display to Mitutoyo
$75.00
MRS100A
Communication adapter, Mitutoyo to RS-232, 9-pin
$190.00
09-1048A
Cable, RS-232 9-Pin
$75.00
RSU100
Communication adapter, RS-232 to USB
$125.00
