The new ESMH is a 50 lb capacity horizontal test stand designed for tension, compression, and friction testing. A smooth top surface makes this tester particularly well suited for coefficient of friction testing. Other typical applications include the testing of sealed pouches, fabrics, tubing, sutures, and many other items in virtually every industry.

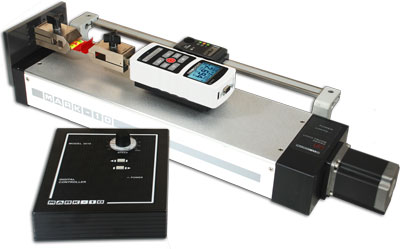

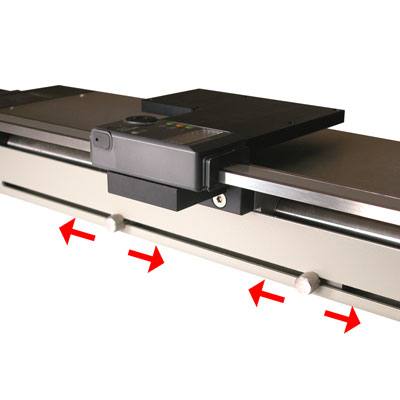

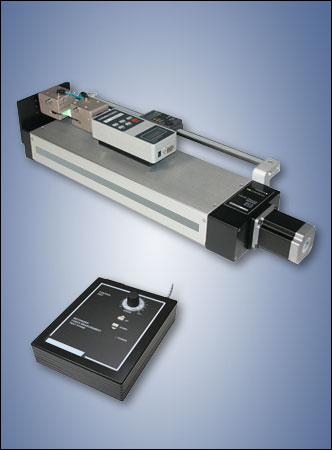

The tester features integrated limit switches for repetitive testing or other tests where travel limits are required. Modular design accommodates a wide variety of test sample shapes and sizes. The ESMH uses a remote control unit, distancing the operator from the test for added safety and convenience. Use this test stand with a force gauge and grips to create a complete testing solution.

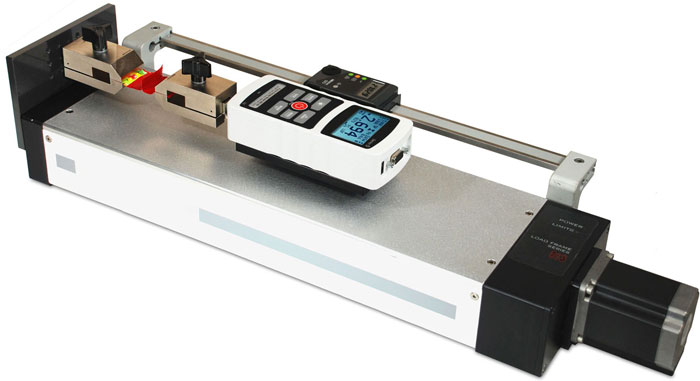

*NOTE: Shown with optional equipment, force gauge and attachments sold separately.
- Mounting Holes for bench mounting

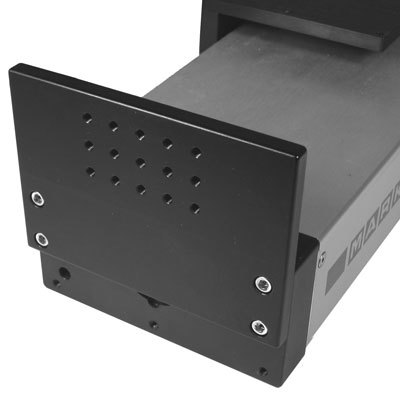

- Removable loading plate with matrix of #10-32 threaded holes
|Capacity||50 lbs / 25 Kg / 250 N|
|Stroke||13" [330 mm], 12" [305 mm] w/optional travel display|
|Travel Rate||0.2 - 50 in/min [5 - 1270 mm/min]|
|Speed Accuracy||±5% of setting, ±0% variation with load|
|Limit Switch Repeatability||±0.001" [0.03 mm]|

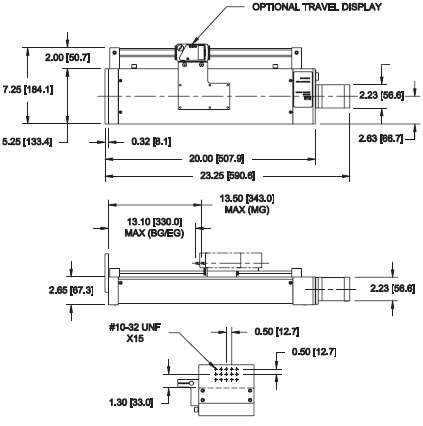

|Dimensions||Refer to Dimensions above|
|Operating Temperature Range||40 - 100°F, max. 96% humidity, non-condensating|
|Compatible Gauges||BG and MG|
ESMH Motorized Test Stand REPLACED BY ESM303H
ESMHE Motorized Test Stand REPLACED BY ESM303HE
ESMH Motorized Test Stand with digital speed controller REPLACED BY ESM303H

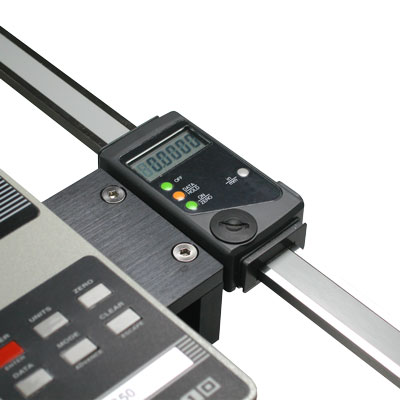

Digital travel display, 12" x 0.0005 (300 mm x 0.01)
Overload protection module
Set Point Cable
