ESM303-003 Safety Shield For ESM303 Test Stand

Made in USA

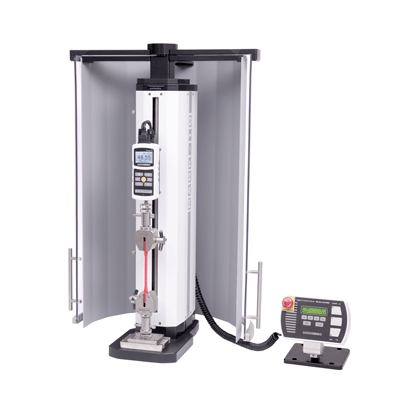

Shield Open
Click images to enlarge.
REPLACED BY AC1092

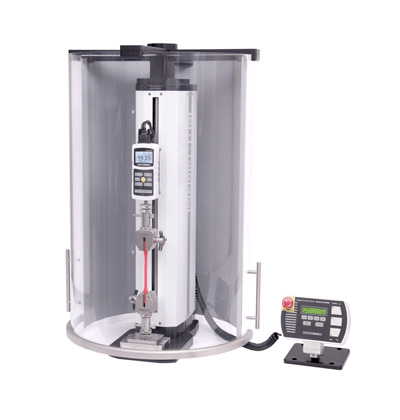

Safety Shield For ESM303The ESM303-003 safety shield attaches to an ESM303 test stand, providing pinch and sample debris protection for the operator.

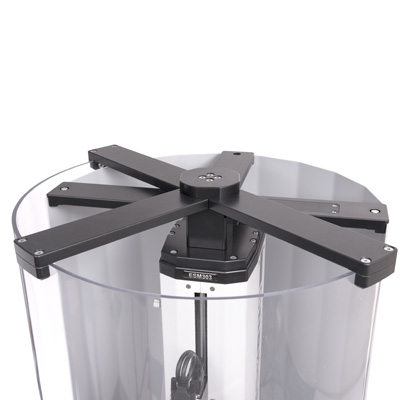

The shield is constructed of rugged PETG material. It rotates via ultra-smooth bearings in both the clockwise and counter-clockwise directions, guided into the open or closed positions with magnetic detents. An electrical interlock prevents test stand operation while the door is open.

For crosshead adjustment during sample loading, the FollowMe™ force-based positioning function is active even while the door is open. The FollowMe™ function is included with the shield, and does not need to be separately ordered with the test stand.

Compatibility Note:

FollowMeTM may be used in all new ESM303 test stands and existing ESM303 test stands with the following minimum firmware versions:

Front: 2.02.08
Main: 2.02.07

With earlier firmware versions, the door interlock is still operational, however FollowMeTM cannot be activated while the door is open. Test stand firmware upgrades are available at no charge. Contact Mark-10 for details.

Related Products

ESM303 Motorized Test Stand
Click image for more info
High Performance Motorized Test Stand, 300lb Capacity
- Adjustable Travel Speed, Standard - 0.5 - 13 in/min (13 - 330 mm/min), Optional - 0.02 - 45 in/min (0.5 - 1,100 mm/min)
- USB output of force vs. time or force vs. travel (with optional travel measurement)

In The Box

Safety Shield For ESM303The safety shield is shipped as shown below, and includes the following accessories:

(1) Safety shield assembly with interlock cable

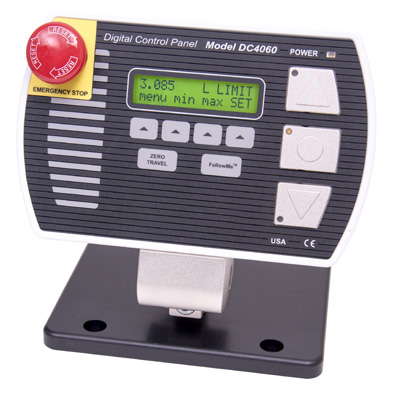

(1) Tabletop mounting kit for control panel

(1) Hardware for mounting shield to test stand

(1) Hardware for mounting control panel to tabletop mounting kit

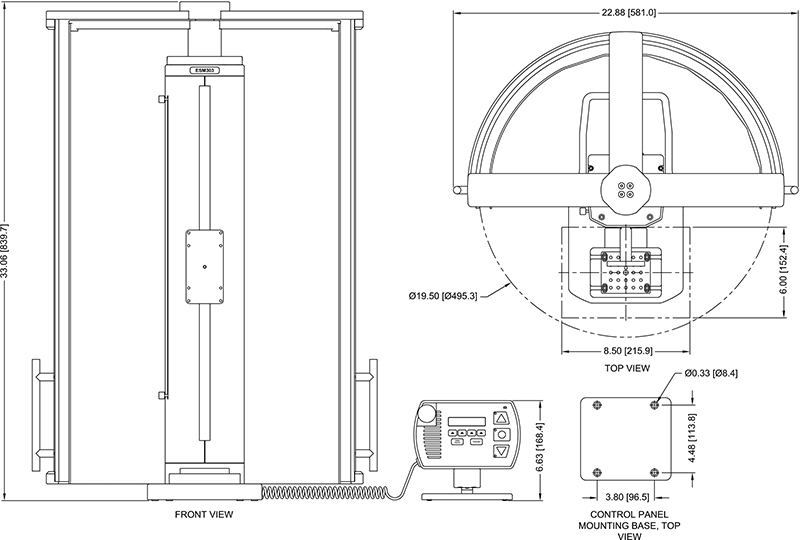

Dimensions

Downloads
