ES05 Manual Test Stand - Compression Only

Click images to enlarge.

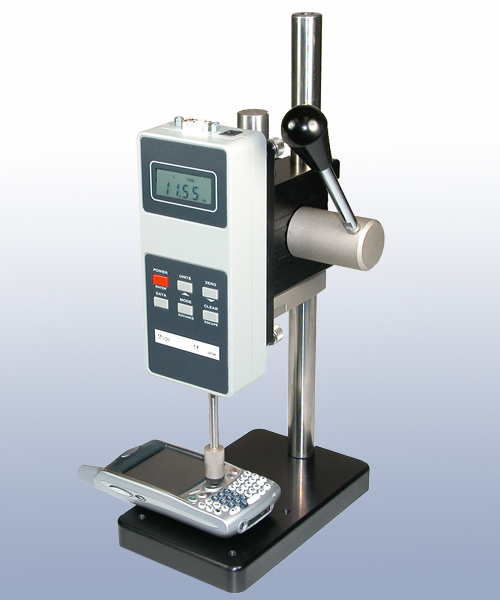

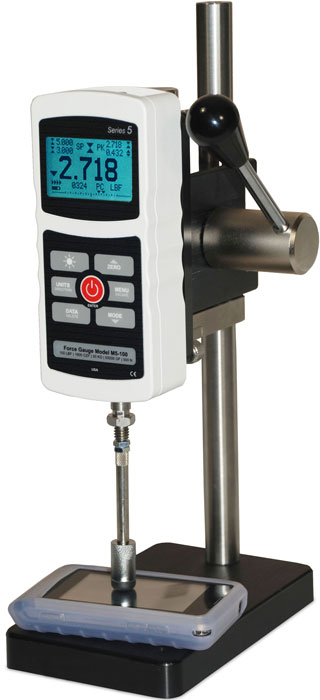

The new compact ES05 test stand is designed for compression testing of up to 30 lb (150 N). Typical applications include switch contact activation testing, small spring testing, peel testing, and more. A spring-loaded lever allows for repeatable testing with up to 1.5” (38 mm) displacement. The lever mechanism can be repositioned along the length of the column, allowing this stand to be used for various sized samples. The ES05’s small footprint makes it particularly well suited to crowded workbenches, while its low weight makes it very portable for field auditing or for quick transportation to other testing areas.Use the ES05 with force gauges and grips to create a complete testing solution.

*Force Gauge Not Included

Features

  • Spring-loaded lever operation is convenient for repetitive testing requirements

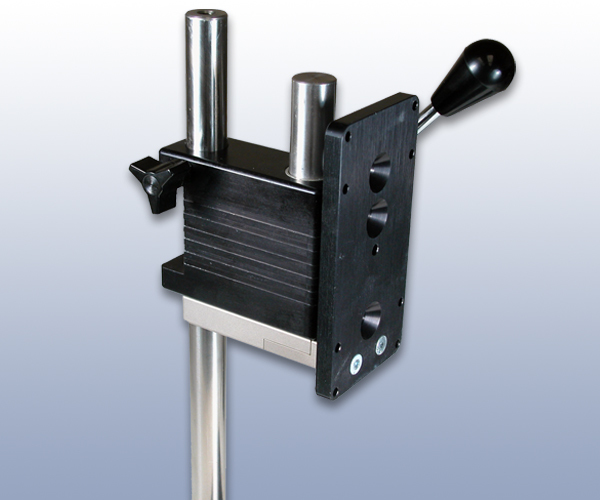

  • Lever mechanism can be repositioned along the length of the column
  • Mounting holes for bench mounting
  • Compact size

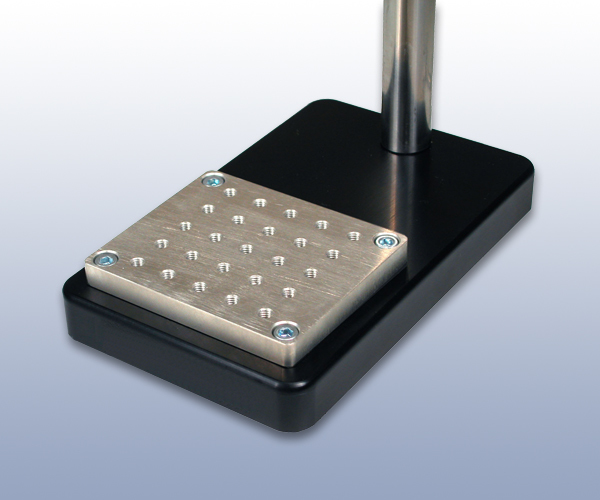

  • Optional base plate with 25 #10-32 threaded holes for fixture mounting
  • Competitor force gauge mounting kits available
  • 3 Year Warranty

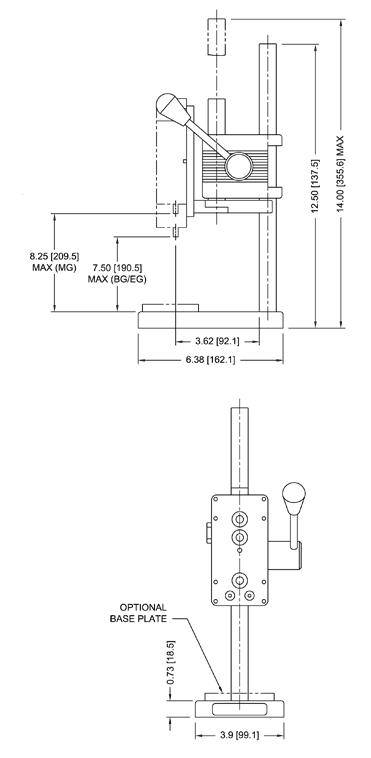

Dimensions

Related Products

M5 Digital Force Gauge
Click image for more info
Advanced Digital Force Gauge - Model M5
- High-speed 7,000 Hz peak sampling rate
- 1,000-point data memory with statistics and outputs
M3 Digital Force Gauge
Click image for more info
Digital Force Gauge
- Includes traceable calibration certificate without data.
NIST traceable calibration certificate with data andISO-17025 certificate option is available
- High-speed 2,000 Hz sampling rate

Specifications

Capacity30 lb (14 kg)
Stroke1.5" (38mm)
DimensionsRefer to dimensions above
Weight10 lb (4.5kg)
Compatible GaugesBG and MG
Warranty3 years

Downloads

Buy Now

Item Description Price
ES05 Mechanical Test Stand
$585.00
Accessories
14-1068
Base Plate with tapped holes
$75.00
In stock
1 Week Lead Time (Estimated)
