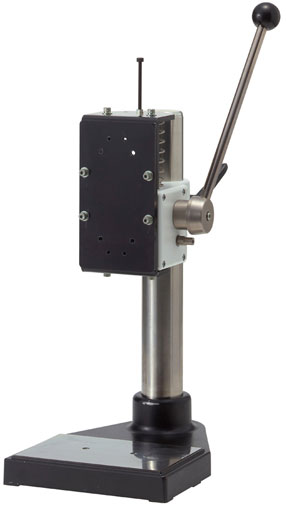

SVL-220 Manual Lever Test Stand

Click images to enlarge.
Model SVL-220 vertical manual lever test stands provide quick, consistent testing. Both compression and tension tests can be performed with a simple downward stroke of the lever. The test stand is designed to provide a simple move to change from compression to tension mode. Return springs reset the lever in compression mode and gravity does the work in tension mode. The stroke can be adjusted with a mechanical limit. The stands accommodate any of the standard range mechanical or digital force gauges and can be equipped with a precision digital distance meter. SVL-220 is perfect for compression and tension applications where rapid action is desired.

SVL-220 can be rotated 180 degrees around the column axis so for use without the base interfering on the underside. When located at the edge of workbench, the available working area is unlimited. (SVH-220 show below for illustrative purpose)
application example

Features

  • Maximum load 220 lbf (100 kgf)
  • Easy to change from tension to compression mode
  • Stroke: 2.3" / 60mm per 170°

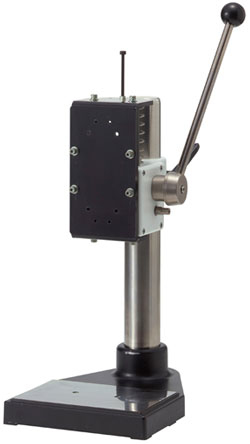

  • Optional digital distance meter

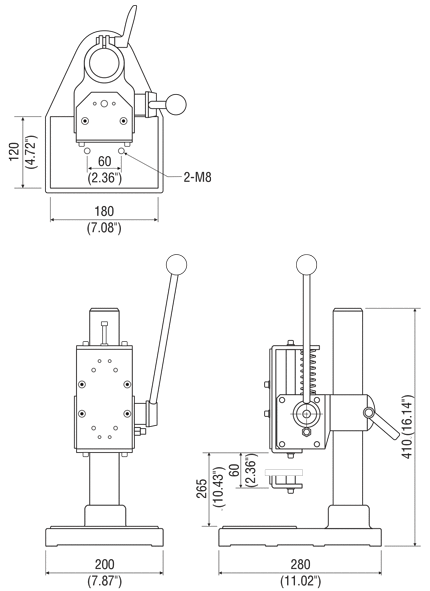

Dimensions

Specifications

Capacity220 lbf / 100 kgf
Stroke2.3" / 60mm per 170°
Resolution0.0005" / 0.01 mm
Accuracy± 0.01" / 0.2mm

Related Products

DST Digital Force Gauge
Click image for more info
DST
Digital Force Gauge
- Backlit LCD display with user-friendly menus
- 30,000/sec sampling rate
- USB and RS-232C output
zts / zta force gauge
Click image for more info
ZTA
Digital Force Gauge with high speed data output, up to 2000hz
- Processes and transmits 2,000 data/sec.

Buy Now

Item Description Price
SVL-220 manual lever test stand WITHOUT distance meter
$1,300.00
SVL-220 manual lever test stand WITH distance meter
$1,750.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable

Complete Kit
