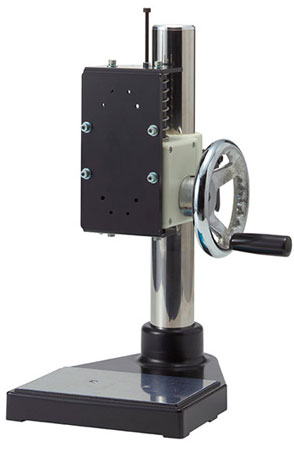

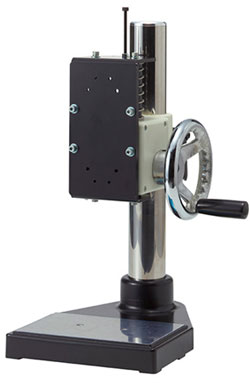

SVH-220 Vertical Hand Wheel Test Stand

Click images to enlarge.
Model SVH-220 are compact test stands with a maximum capacity of 220 lbs. The handwheel offers precise movement that is ideal for applications requiring relatively consistent speed and maximum gauge control. The gauge reĀ­mains in position when the wheel is released which allows the user to easily change samples between tests. Hand wheel operation provides repeatĀ­able test results from sample to sample. The stroke can be adjusted with a mechanical limit. The SVH-220 accommodate any of our standard range mechanical or digital force gauges.

SVH-220 can be rotated 180 degrees around the column axis so for use without the base interfering on the underside. When located at the edge of workbench, the available working area is unlimited
application example

Features

  • Maximum load 220 lbf (100 kgf)
  • Travel: 3mm per wheel rotation
  • Gauge remains in place when hand wheel is released
  • Optional digital distance meter
  • Stroke: 2.3" / 60mm
  • Hand wheel design provides a high degree of precise control
  • One stand for both compression (push) and tension (pull) tests

Dimensions

Specifications

Capacity220 lbf / 100 kgf
Stroke2.3" / 60mm
Travel3mm per wheel rotation
Resolution0.0005" / 0.01 mm
Accuracy0.1% of reading or 0.005" / 0.1mm, whichever is greater
DisplayPush button for inch/mm, zero set and on/off

Buy Now

Item Description Price
SVH-220 vertical hand wheel test stand
$1,300.00
SVH-220-S vertical hand wheel test stand INCLUDING distance meter (4" Max Displacement)
$1,750.00
