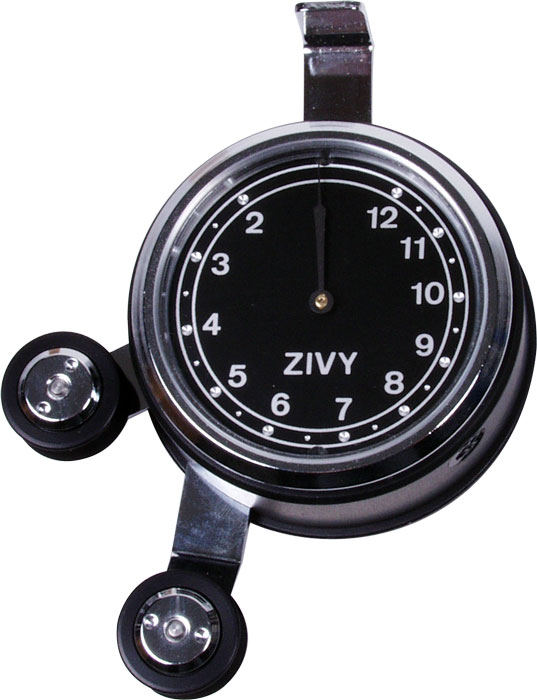

Zivy Hand-held Tension Meter

Zivy Hand-held Tension Meter
Click images to enlarge.
The Zivy hand-held Tension Meters accurately measure the running line tension of yarns and fibers. Well-known and used worldwide for circular knitting and similar applications, the ZIVY TEN model Tension Meter is pocket-sized and a favorite for mechanics and machine operators.

They feature two precision ball-bearing mounted V-grooved rollers capable of measuring high line speeds. 12 models are offered starting at 0.5 - 3 cN up to 50 - 170 cN. All models supplied in a foam-fitted plastic carrying case. NIST-Traceable Calibration Certificate is optionally available.

Tension Meter Operation

The Zivy tension meter is designed for one-hand operation. To aqcuire sample, place the material between the two guide rollers. Push and hold the button on the top of the instrument. The outer roll will be pivoted to the top and the device is ready to measure.

zivy tension meter

zivy tensiometer material aquistion

Related Products

zf2 tension meter schmidt
Click image for more info
ZF2
Tension Meter for Fibers, Yarns and Fine Wires
- A trigger-operated, roller-shifting mechanism and exclusive snare-guide automatically guide the moving filament into the roller V-grooves eliminating breaks and snags.
- Front filament loading permits the operator to observe the filament, rollers and dial at all times.

Tension Ranges

ModelRangeCalibration Material
ZIVY 3 (TEN-3K)0.5 - 3 cN0.12 mm diameter monofilament
ZIVY 5 (TEN-5K)1 - 5 cN0.12 mm diameter monofilament
ZIVY 10 (TEN-10K)2 - 10 cN0.12 mm diameter monofilament
ZIVY 12 (TEN-12K)2 - 12 cN0.12 mm diameter monofilament
ZIVY 20 (TEN-20K)2 - 20 cN0.12 mm diameter monofilament
ZIVY 30 (TEN-30K)5 - 30 cN0.12 mm diameter monofilament
ZIVY 40 (TEN-40K)10 - 40 cN0.12 mm diameter monofilament
ZIVY 50 (TEN-50K)10 - 50 cN0.12 mm diameter monofilament
ZIVY 60 (TEN-60K)10 - 60 cN0.12 mm diameter monofilament
ZIVY 70 (TEN-70k)10 - 70 cN0.12 mm diameter monofilament
ZIVY 120 (TEN-120K)20 - 120 cN0.12 mm diameter monofilament
ZIVY 170 (TEN-170K)50 - 170 cN0.12 mm diameter monofilament

Complete Kit

Supplied in a foam-fitted, hard plastic carrying case with instructions and a spanner wrench to remove the roller (if neccessary)

Specifications

Accuracy±2 % Full scale or ±1 digit (up to 20cN)
±5 % Full scale or ±1 digit (30cN and higher)
RollersV-Groove Aluminum, 900 meters/min max speed
Scale diameter40 mm
Temperature range10 - 50 °C
Humidity85 % RH, max.
Housing MaterialAluminum
Dimensionssee PDF
Weight net (gross)150 g (260 g)

Downloads

Buy Now

Item Description Price
Zivy Tension Meter 0.5 - 3 cN - TEN-3K 1750/001/00/003
$795.00
Zivy Tension Meter 1 - 5 cN - TEN-5K 1750/001/00/005
$795.00
Zivy Tension Meter 2 - 10 cN - TEN-10K 1750/001/00/010
$795.00
Zivy Tension Meter 2 - 12 cN - TEN-12K 1750/001/00/012
$795.00
Zivy Tension Meter 5 - 20 cN - TEN-20K 1750/001/00/020
$795.00
Zivy Tension Meter 5 - 30 cN - TEN-30K 1750/001/00/030
$795.00
Zivy Tension Meter 10 - 40 cN - TEN-40K 1750/001/00/040
$795.00
Zivy Tension Meter 10 - 50 cN - TEN-50K 1750/001/00/050
$795.00
Zivy Tension Meter 10 - 60 cN - TEN-60K 1750/001/00/060
$795.00
Zivy Tension Meter 10 - 70 cN - TEN-70K 1750/001/00/070
$795.00
Zivy Tension Meter 20 - 120 cN - TEN-120K 1750/001/00/120
$795.00
Zivy Tension Meter 50 - 170 cN - TEN-170K 1750/001/00/170
$795.00
Accessories
NISTCAL
NIST Traceable Calibration Certificate
$100.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
