WT-100 Warp Tension Meter

Made in USA

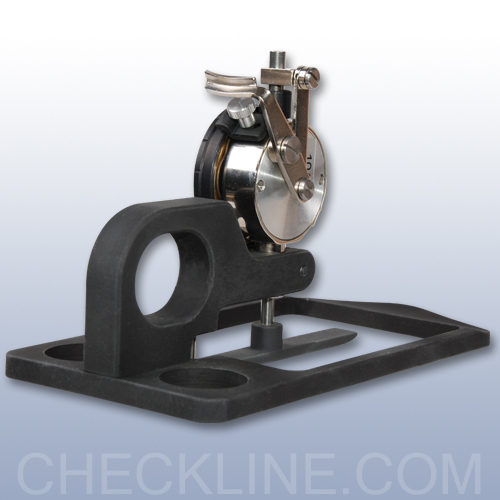

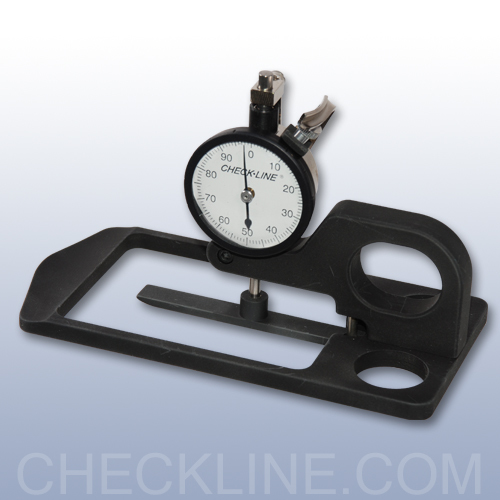

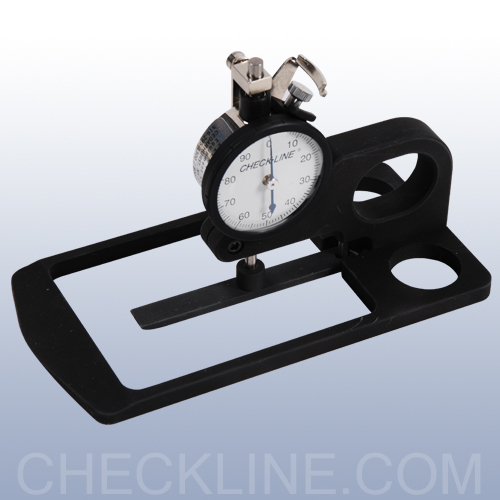

WT-100 Warp Tension Meter
Click images to enlarge.

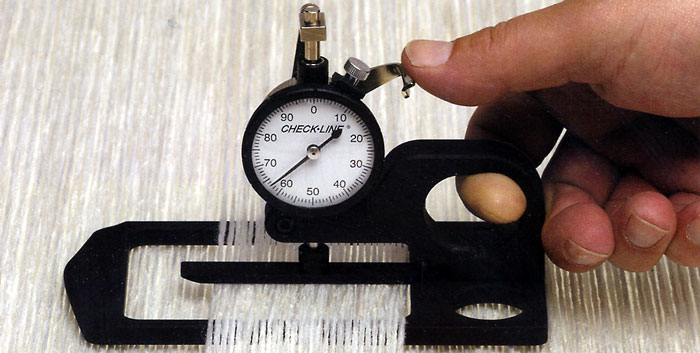

The WT-100 is an easy-to-use warp tension meter designed to provide quick comparative measurements. A wide measuring foot and small "scooping" frame allow for fast material acquisition. Its 0-100 unit scale allow you to compare tension on different areas of the warp.

WT-100 Warp Tension Meter


  • Dependable, lightweight, small, rugged and easy-to-use.
  • A large, 2-3/4" wide measuring foot, provides even, perpendicular pressure for highly repeatable readings.
  • A thumb-actuated mechanism lifts the pressure foot for easy insertion into the warp and allows a scooping action by the bottom frame to select the number of ends to be measured.


Calibration0-100 empirical units
Resolution1 unit
Dial Face Diameter1-1/2" (38mm)
Foot Pressure300g ± 10g at 1 revolution of pointer
DimensionsFrame: 5-7/8" x 3" (150 x 176mm)
Height 3-5/8" (92mm)
Frame MaterialAluminum Alloy


Buy Now

Item Description Price
Hand-Held Warp Tension Meter (0 - 100 units) - static use only
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
