MF Mechanical Force Gauge

Made in Japan

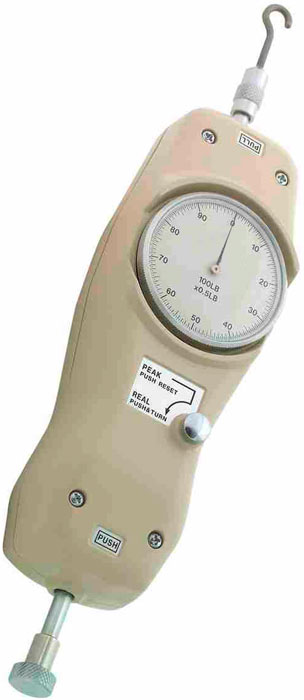

Shimpo MF Force Gauge
Click images to enlarge.
15 Ranges up to 100 lbs or 50kg

Incredibly durable and user-friendly, the economical MF mechanical force gauges are excellent for push/pull force testing in manufacturing, material testing, maintenance and inspection applications.

The peak force mode features an easy push-button reset; this is especially helpful for doing repetitive testing in an assembly line or in quality control. The large dial indicator allows viewing of force changes as they occur. This large dial reduces the chance for parallax errors when taking readings.

The MF was ergonomically designed for handheld use, but may also be used with the optional handle-great for loads over 15 pounds (6.8 kg). Due to its mechanical design, response time is immediate. Calibration is achieved by a set of precisely matched springs which are overload protected to 165 pounds (75 kg)!

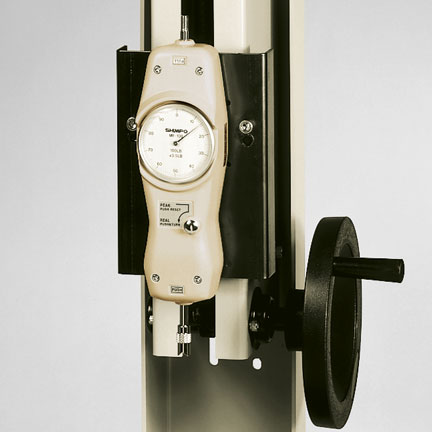

MF gauges feature a die-cast aluminum housing which mounts easily to all of our test stands for even greater control of repetitive testing. All standard Series MF gauges include a protective carrying case plus attachment adapters.

Replacement for Chatillon DPP force gauge

Features

  • NIST Traceable Calibration Certificate is OPTIONAL
  • Accuracy ± 0.2%
  • Easy-to-read analog scale
  • Peak mode retains highest reading
  • Overload protection up to 165 pounds
  • 100% mechanical, no batteries required
  • Supplied as a complete kit with several attachments in a foam fitted carrying case
  • Made in Japan
  • 2-Year Warranty

Force Ranges

ModelCapacityResolution
MF-22 lbs0.01
MF-55 lbs0.025
MF-1010 lbs0.05
MF-2020 lbs0.20
MF-3030 lbs0.20
MF-5050 lbs0.25
MF-100100 lbs0.50
MF-1KG1 kg0.005
MF-2KG2 kg0.01
MF-3KG3 kg0.02
MF-5KG5 kg0.025
MF-10KG10 kg0.05
MF-20KG20 kg0.10
MF-30KG30 kg0.20
MF-50KG50 kg0.25

Dimensions

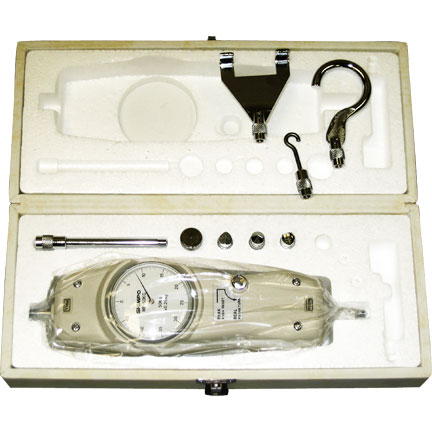

Complete Kit

The complete kit includes the MF gauge with flat head, hook, chisel, notched head, cone head, extension rod, large hook and large V-hook all supplied in a foam fitted carrying case

Specifications

Accuracy±0.2% F.S.
DisplayAnalog dial, 2" (50mm) diameter
Operating ModesReal time or Peak-Hold135460
Overload Protection165lb (75kg)
Operating Temp Range40-110 ⁰F
Standard Accessoriesflat head, hook, chisel, notched head, cone head, extension rod, large hook and large V-hook all supplied in a foam fitted carrying case
Weight1.6 lbs (0.73 kg), net
4 lbs (1.81 kg), gross
Warranty2 Years

Downloads

Buy Now

Item Description Price
MF Mechanical Force Gauge, 2lb Capacity
$405.00
MF Mechanical Force Gauge, 5lb Capacity
$405.00
MF Mechanical Force Gauge, 10lb Capacity
$405.00
MF Mechanical Force Gauge, 20lb Capacity
$405.00
MF Mechanical Force Gauge, 30lb Capacity
$405.00
MF Mechanical Force Gauge, 50lb Capacity
$405.00
MF Mechanical Force Gauge, 100lb Capacity
$405.00
MF Mechanical Force Gauge, 1Kg Capacity
$405.00
MF Mechanical Force Gauge, 2Kg Capacity
$405.00
MF Mechanical Force Gauge, 3Kg Capacity
$405.00
MF Mechanical Force Gauge, 5Kg Capacity
$405.00
MF Mechanical Force Gauge, 10Kg Capacity
$405.00
MF Mechanical Force Gauge, 20Kg Capacity
$450.00
MF Mechanical Force Gauge, 30Kg Capacity
$405.00
MF Mechanical Force Gauge, 50Kg Capacity
$405.00
Accessories
NIST-FG
NIST Traceable Certificate of Calibration for Shimpo force Gauges up to 100 lbs
$250.00

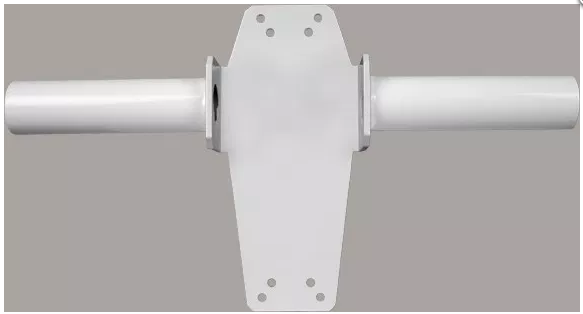

MFP-HANDLE
Handle for MF Force Gauge
$103.50
FG-M6FL
Flat head adapter, M6 thread
$19.00
ZZMF0079
Window Glass & Frame Assembly for MF Force Gauge
$60.00
