Measuring range: 0 - 3 inch (0 - 75 mm)
Resolution: 0.0005 inch (0.01 mm)

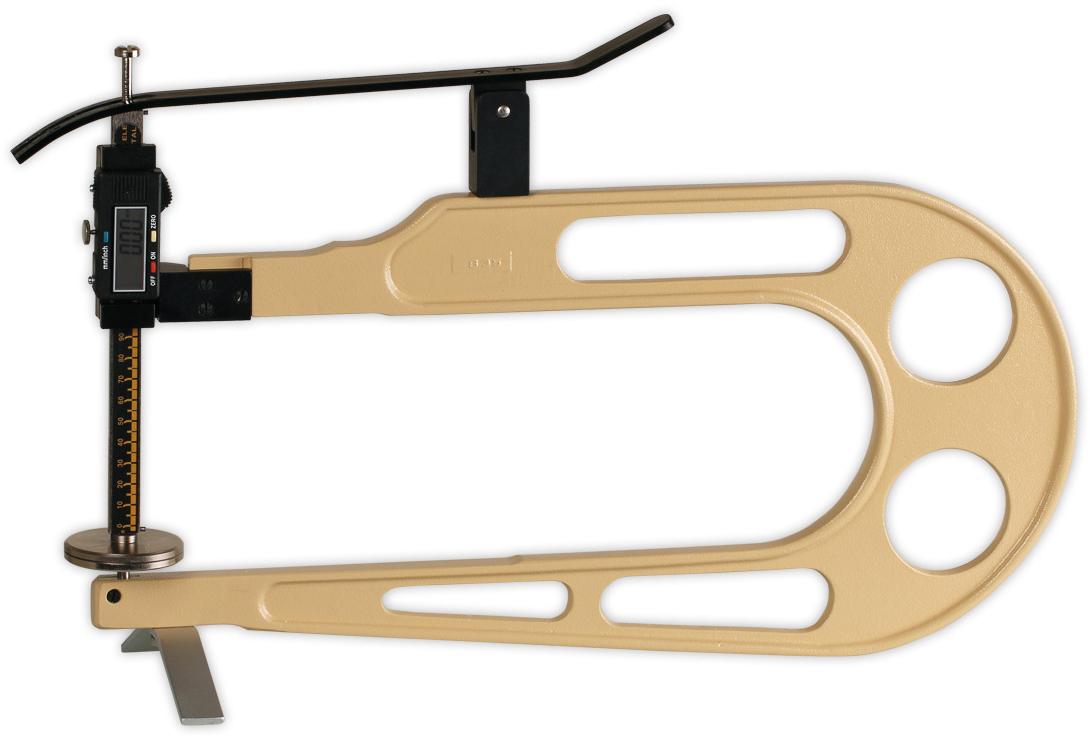

Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Self closing thickness gauge with high accuracy and resolution.
Resolution: 0.0005 inch (0.01 mm)
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Self closing thickness gauge with high accuracy and resolution.
- Thickness gauge with RS 232 output for data collection (optional)
- Opening by lifting device (lever) - self closing
- Zero setting by pushing a button
- Measuring by spring force
- LCD display with user selectable units (mm or inch)
- Calibration certificate included
| Model | Measuring Range | Resolution | Depth of Jaw |
|---|---|---|---|
| MDM-815-1 | 2 in
(50 mm) |
0.005 in
(0.01 mm) |
5.90 in
(150 mm) |
| MDM-820-1 | 2 in
(50 mm) |
0.005 in
(0.01 mm) |
7.87 in
(200 mm) |
| MDM-830-1 | 2 in
(50 mm) |
0.005 in
(0.01 mm) |
11.81 in
(300 mm) |
| MDM-835 | 3 in
(75 mm) |
0.005 in
(0.01 mm) |
13.78 in
(350 mm) |
| MDM-840 | 4 in
(100 mm) |
0.005 in
(0.01 mm) |
15.75 in
(400 mm) |
To order, please indicate the desired feeler, e.g. MDM-835-B for gauge with feeler >B<. This means that NOT all feelers are included in the package!
 |
Feeler: A rigid leather, glass, sheet metal |
 |
Feeler: B wood, rubber, soft leather, foil, etc. |
 |
Feeler: C soft rubber, felt, fleece |
 |
Feeler: D rubber rings, round material |
 |
Feeler: E paper, cardboard, chipboard and fibreboard, plywood |
 |
Feeler: F sheet metal, glass, round material |
 |
Feeler: G very rigid material |
 |
Feeler: H foams and insulating materials |
 |
Feeler: I very soft foams and insulating materials |
 |
Feeler: M rubber sheets, felt, soft materials |
| Resolution | 0.0005 in (0.01 mm) |
| Measuring range | 3 in (75 mm) |
| Depth of jaw | 13.78 in (350 mm) |
| Measuring pressure | 2 N |
| Measuring principle | Self closing |
| Feeler shape | A/B/C/D/E |
| Display | LCD 7 mm high |
| Measuring system | Sylvac |
| Weight, net (gross) | 1250 g (1300 g) |
| Item | Description | Price | ||
|---|---|---|---|---|
Digital Thickness Gauge, 350mm Jaw Depth, 75mm / 3 inch range - Feeler A (6mm curved) | $695.00 | |||
Digital Thickness Gauge, 350mm Jaw Depth, 75mm / 3 inch range - Feeler B (10mm) | $695.00 | |||
Digital Thickness Gauge, 350mm Jaw Depth, 75mm / 3 inch range - Feeler C (25mm) | $695.00 | |||
Digital Thickness Gauge, 350mm Jaw Depth, 75mm / 3 inch range - Feeler D (5mm) | $695.00 | |||
Digital Thickness Gauge, 350mm Jaw Depth, 75mm / 3 inch range - Feeler E (16mm) | $695.00 | |||
Digital Thickness Gauge, 350mm Jaw Depth, 75mm / 3 inch range - Feeler F (3.5mm) | $695.00 | |||
Digital Thickness Gauge, 350mm Jaw Depth, 75mm / 3 inch range - Feeler G (1.5mm curved) | $695.00 | |||
Digital Thickness Gauge, 350mm Jaw Depth, 75mm / 3 inch range - Feeler H (30mm) | $695.00 | |||
Digital Thickness Gauge, 350mm Jaw Depth, 75mm / 3 inch range - Feeler I (50mm) | $695.00 | |||
Digital Thickness Gauge, 350mm Jaw Depth, 75mm / 3 inch range - Feeler M (20mm) | $695.00 | |||
| Accessories | ||||
MDM-RS232 | RS-232C Serial Output including data transfer cable (DB9) | $ | ||
