Measuring range: 0 - 2 inch (0 - 50 mm)
Resolution: 0.005 inch (0.01 mm)

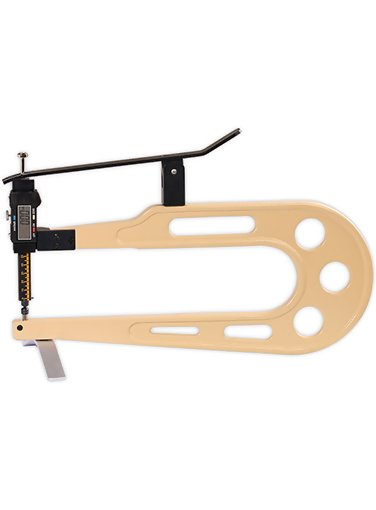

Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Self-closing thickness gauge with high accuracy and resolution.
Resolution: 0.005 inch (0.01 mm)
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Self-closing thickness gauge with high accuracy and resolution.
- Thickness gauge with RS 232 output for data collection (optional)
- Opening by lifting device (lever) - self closing
- Zero setting by pushing a button
- Measuring by spring force
- LCD display with user selectable units (mm or inch)
- Calibration certificate included
| Model | Measuring Range | Resolution | Depth of Jaw |
|---|---|---|---|
| MDM-815-1 | 2 in
(50 mm) |
0.005 in
(0.01 mm) |
5.90 in
(150 mm) |
| MDM-820-1 | 2 in
(50 mm) |
0.005 in
(0.01 mm) |
7.87 in
(200 mm) |
| MDM-830-1 | 2 in
(50 mm) |
0.005 in
(0.01 mm) |
11.81 in
(300 mm) |
| MDM-835 | 3 in
(75 mm) |
0.005 in
(0.01 mm) |
13.78 in
(350 mm) |
| MDM-840 | 4 in
(100 mm) |
0.005 in
(0.01 mm) |
15.75 in
(400 mm) |
To order, please indicate the desired feeler, e.g. MDM-830-1-B for gauge with feeler >B<. This means that NOT all feelers are included in the package!
 |
Feeler: A rigid leather, glass, sheet metal |
 |
Feeler: B wood, rubber, soft leather, foil, etc. |
 |
Feeler: C soft rubber, felt, fleece |
 |
Feeler: D rubber rings, round material |
 |
Feeler: E paper, cardboard, chipboard and fibreboard, plywood |
 |
Feeler: F sheet metal, glass, round material |
 |
Feeler: G very rigid material |
 |
Feeler: H foams and insulating materials |
 |
Feeler: I very soft foams and insulating materials |
 |
Feeler: M rubber sheets, felt, soft materials |
| Resolution | 0.0005 in (0.01 mm) |
| Measuring range | 2 in (50 mm) |
| Depth of jaw | 11.81 in (300 mm) |
| Measuring pressure | 2 N |
| Measuring principle | Self closing |
| Feeler shape | A/B/C/D/E |
| Display | LCD 7 mm high |
| Measuring system | Sylvac |
| Weight, net (gross) | 1000 g (1050 g) |
| Item | Description | Price | ||
|---|---|---|---|---|
Digital Thickness Gauge, 30mm Jaw Depth, 50mm / 2 inch range - Feeler A (6 mm) | $595.00 | |||
Digital Thickness Gauge, 30mm Jaw Depth, 50mm / 2 inch range - Feeler B (10 mm) | $595.00 | |||
Digital Thickness Gauge, 30mm Jaw Depth, 50mm / 2 inch range - Feeler C (25 mm) | $595.00 | |||
Digital Thickness Gauge, 30mm Jaw Depth, 50mm / 2 inch range - Feeler D (5 mm) | $595.00 | |||
Digital Thickness Gauge, 30mm Jaw Depth, 50mm / 2 inch range - Feeler E (16 mm) | $595.00 | |||
Digital Thickness Gauge, 30mm Jaw Depth, 50mm / 2 inch range - Feeler F (3.5 mm) | $595.00 | |||
Digital Thickness Gauge, 30mm Jaw Depth, 50mm / 2 inch range - Feeler G (1.5 mm) | $595.00 | |||
Digital Thickness Gauge, 30mm Jaw Depth, 50mm / 2 inch range - Feeler H (30 mm) | $595.00 | |||
Digital Thickness Gauge, 30mm Jaw Depth, 50mm / 2 inch range - Feeler I (50 mm) | $595.00 | |||
Digital Thickness Gauge, 30mm Jaw Depth, 50mm / 2 inch range - Feeler M (20 mm) | $595.00 | |||
| Accessories | ||||
MDM-RS232 | RS-232C Serial Output including data transfer cable (DB9) | $ | ||
