Measuring Range: 0 - 30 mm / 0 - 1.181 inch (optional)
Jaw Depth: 300 mm / 11.81 inch

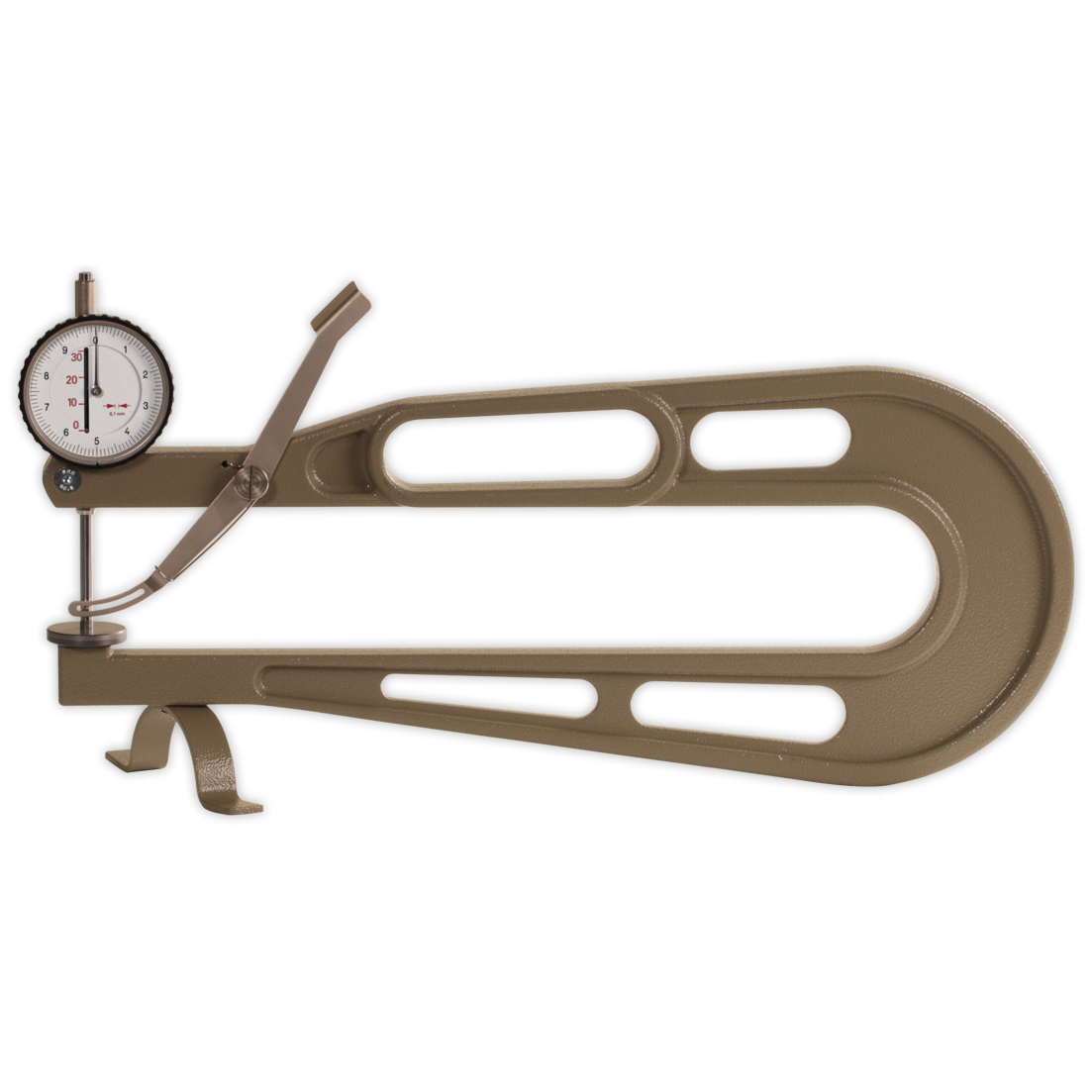

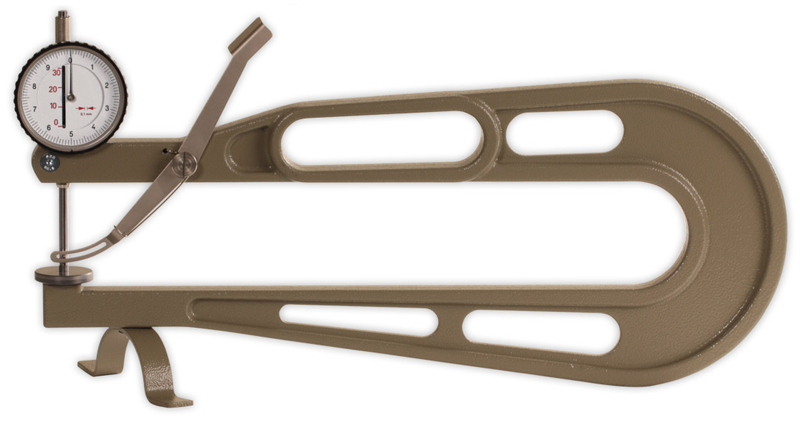

Resolution: 0.1 mm (standard) / 0.004 inch (optional) The K-300 thickness gauge features an easy to read analog display along with the high accuracy. The K-300 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing. Standard spring Force is 1.8N, however a Reduced Force Version offering 0.9N as well as a Increased Force Version offering 2.5N is available.
Jaw Depth: 300 mm / 11.81 inch
Resolution: 0.1 mm (standard) / 0.004 inch (optional) The K-300 thickness gauge features an easy to read analog display along with the high accuracy. The K-300 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing. Standard spring Force is 1.8N, however a Reduced Force Version offering 0.9N as well as a Increased Force Version offering 2.5N is available.
To order, please indicate the desired feeler, e.g. K-300-B for gauge with feeler.
This means that NOT all feelers are included in the package!
This means that NOT all feelers are included in the package!
 |
Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
 |
Feeler: B For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
 |
Feeler: C For soft leather, cardboard, paper, foils, etc. |
 |
Feeler: D For hard leather, plywood, fiberboard, etc. |
 |
Feeler: E For sheet metal, etc. |
| Range | 30 mm (K models) 1.00" (KZ models) |
| Resolution | 0.1 mm (K models) 0.010" (KZ models) |
| Accuracy | ± 0.2% Full Scale |
| Range per revolution | 0.4" (10 mm) |
| Bezel-Ø | 2.3" (58 mm) |
| Depth of Jaw | 11.80" (300 mm) |
| Feeler Typees | Select Feeler "A", "B", "C", "D" or "E" |
| Test Pressure | 2 N (Optional 1 N or 4 N) |
| Weight | 2.2 Lbs (1 Kg) |
| Item | Description | Price | ||
|---|---|---|---|---|
Analog Thickness Gauge, 300mm Jaw Depth, 30mm range - Feeler A (30mm) | $395.00 | |||
Analog Thickness Gauge, 300mm Jaw Depth, 30mm range - Feeler B (20mm) | $395.00 | |||
Analog Thickness Gauge, 300mm Jaw Depth, 30mm range - Feeler C (10mm) | $395.00 | |||
Analog Thickness Gauge, 300mm Jaw Depth, 30mm range - Feeler D (10mm curved) | $395.00 | |||
Analog Thickness Gauge, 300mm Jaw Depth, 30mm range - Feeler E (5mm curved) | $395.00 | |||
Analog Thickness Gauge, 300mm Jaw Depth, 1in range - Feeler A (30mm) | $395.00 | |||
Analog Thickness Gauge, 300mm Jaw Depth, 1in range - Feeler B (20mm) | $395.00 | |||
Analog Thickness Gauge, 300mm Jaw Depth, 1in range - Feeler C (10mm) | $395.00 | |||
Analog Thickness Gauge, 300mm Jaw Depth, 1in range - Feeler D (10mm curved) | $395.00 | |||
Analog Thickness Gauge, 300mm Jaw Depth, 1in range - Feeler E (5mm curved) | $395.00 | |||
| Accessories | ||||
NISTCAL | NIST Traceable Calibration Certificate | $100.00 | ||
