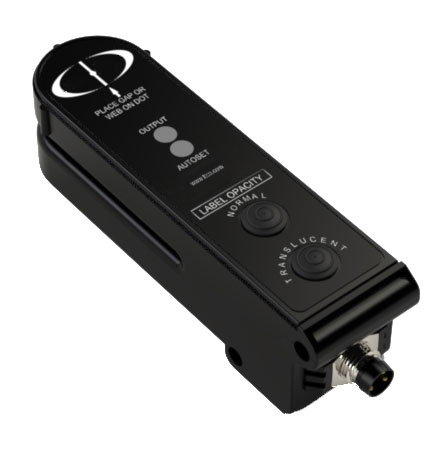

LS-GAPSENSOR Label Sensor for Triggering On Label Gaps

Click images to enlarge.

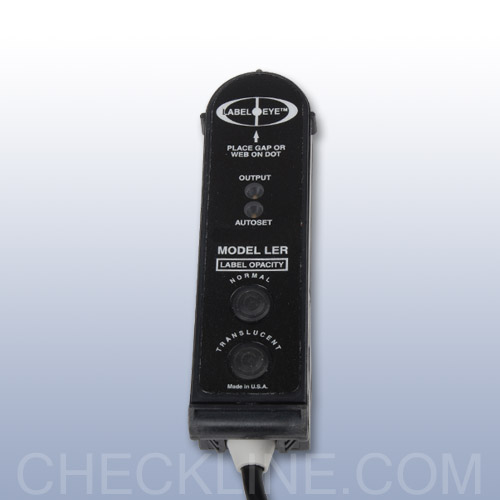

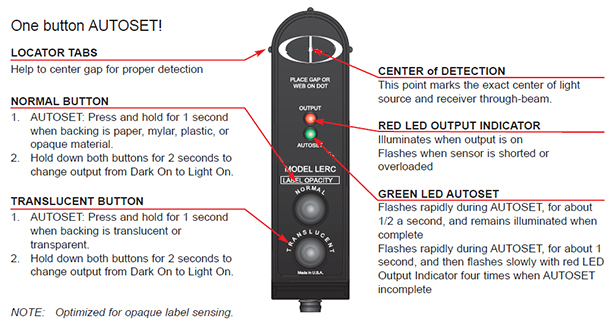

The LS-GAPSENSOR is a photoelectric sensor designed to sense the "gap" between labels and provide a trigger signal used to flash a stroboscope. Since the LS-GAPSENSOR is an automatic one-touch sensor…not the conventional "teach mode" sensor…set-up is simple. Position the gap between the labels directly under the sensors sight guide and push the appropriate Autoset™ button. The sensor does the rest, adjusting itself to the perfect setting. Sensing labels has never been easier.

Features

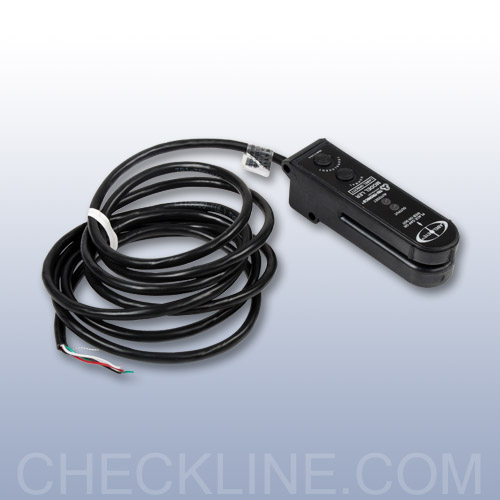

  • The LS-GAPSENSOR is supplied with a DIN connector for direct connection from CHECK-LINE LS fixed-mounted strobes.
  • Only label sensor on the market that is immune to the interference caused by a strobe.
  • IP66/Nema 4 rating provides excellent physical protection and is waterproof.

Related Products

Click image for more info
Registration Mark Sensor
- Color Mark registration detection on transparent and translucent, including many metalized films and paper
Inspection Stroboscope
Click image for more info
Inspection Stroboscope - Inspection Strobe Light
- Unmatched brightness, sharpness and uniformity from any strobe in its class
Click image for more info
Web Inspection Stroboscope
- Unmatched image brightness (2500 Lux) along with best sharpness and light uniformity from any strobe in its class
ls-5-led stroboscope
Click image for more info
LED Inspection Strobe Light
80 LEDs in 10 x 8 array
- Extremely bright and uniform light distribution for web widths up to 12" (300mm) and wider.
LS-9-LED
Click image for more info
LED Inspection Stroboscope
120 LEDs in 15 x 8 array
- Extremely bright and uniform light distribution over an area of 300 x 500mm (12" x 20")
- Uses 120 of the newest generation LEDs in a 15 x 8 array providing 7500 Lux, peak

Downloads

Buy Now

Item Description Price
Label Sensor for Triggering On Label Gaps
$125.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
